FiberQuad Ruggedized Quadrax Contacts

Product FiberQuad Ruggedized Quadrax Contacts Product FiberQuad Ruggedized Quadrax Contacts

Contact:

Sandra Wildenstein
Product Manager
+1 (607) 563-5379
swildenstein@amphenol-aao.com

Description:

Amphenol provides a high performance ruggedized Quadrax contact, known as FiberQuad, that embeds a fiber optic transmitter or receiver within the contact itself, along with the support electronics to provide a plug-and-play solution to our
customers.

The contact is flexible enough to be a transmitter or receiver, support many wavelengths and modes, and support multipleprotocols, including those which encoded and  pathological. The contact fits within a standard Quadrax contact and can be installed in plugs and receptacles meant for Amphenol Quadrax 38999 connectors.

Features & Benefits:

  • Each Quadrax contact can contain a fiber optic transmitter or receiver
  • Support for speeds up to 28.05 Gbps
  • Support for 1300nm multi-mode (for legacy protocols such as 100-Base-FX), 1310nm singlemode, and 850nm multi-mode wavelengths
  • Support for encoded data as well as pathological data
  • Each contact can be installed in any Amphenol Quadrax 38999 Connector
  • Onboard diagnostics and control
  • Operating temperature: -40°C to +85°C
  • Storage temperature: -55°C to +100°C for 10G parts
  • TX_DIS and RX_LOS pins
  • Support for low outgassing requirements
Supported Protocols

  • Ethernet
  • Fibre Channel
  • ARINC-818
  • PCI-Express
  • Infiniband
  • SDI / HD-SDI / 3G-HD-SDI
  • Many others

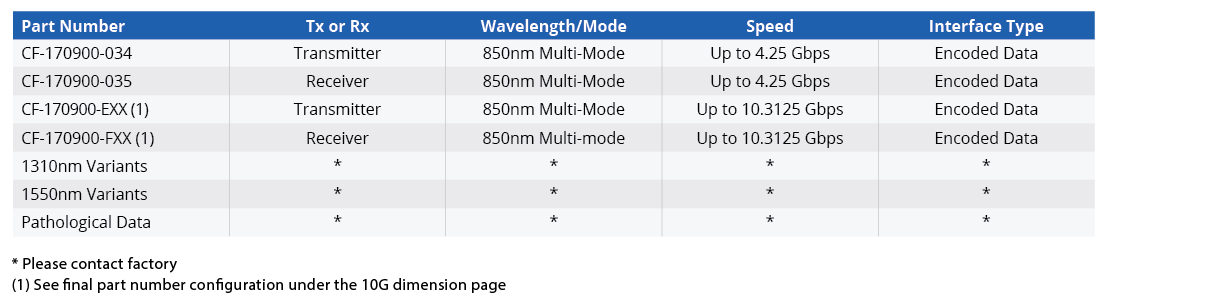

Part Number List

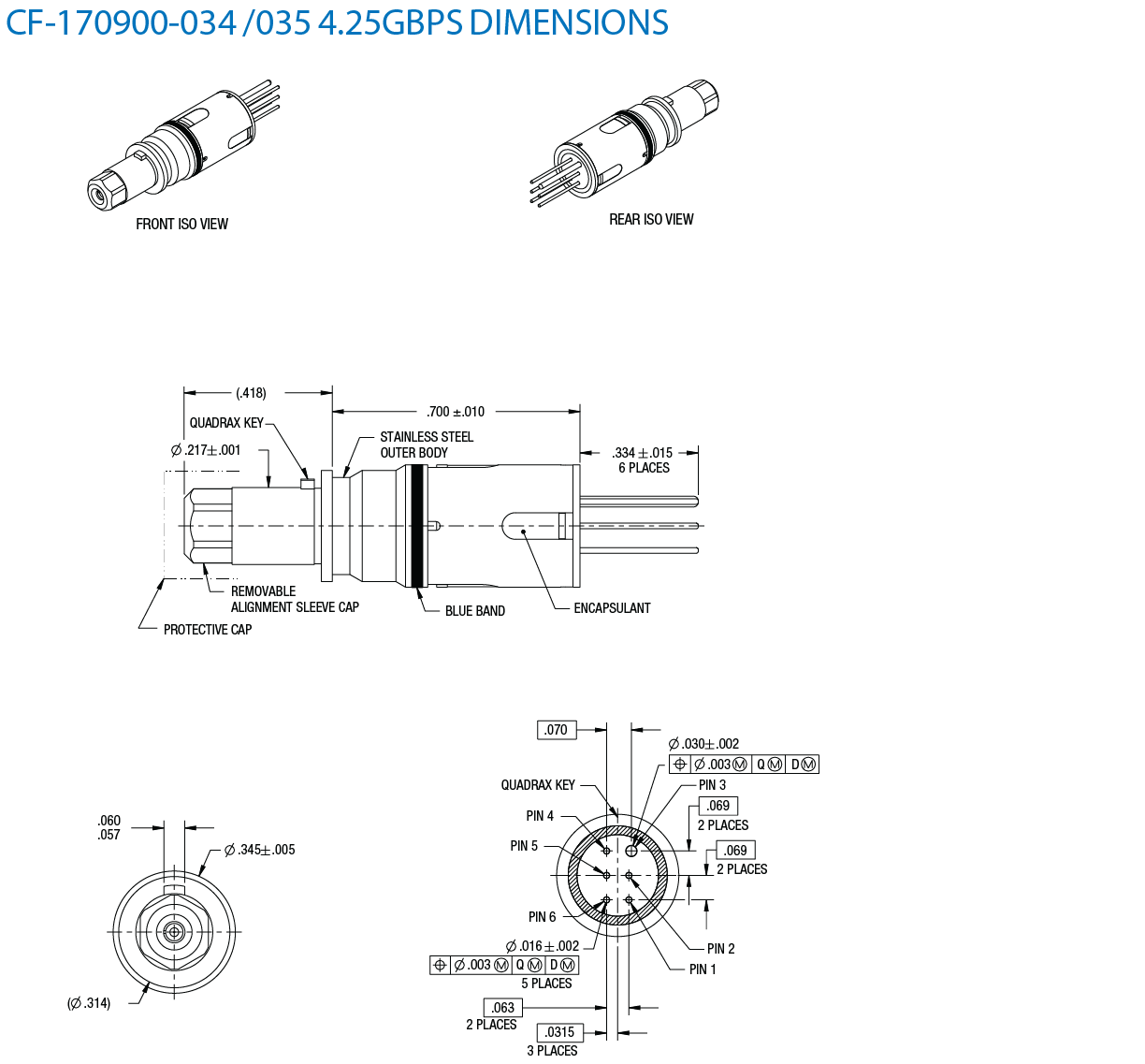

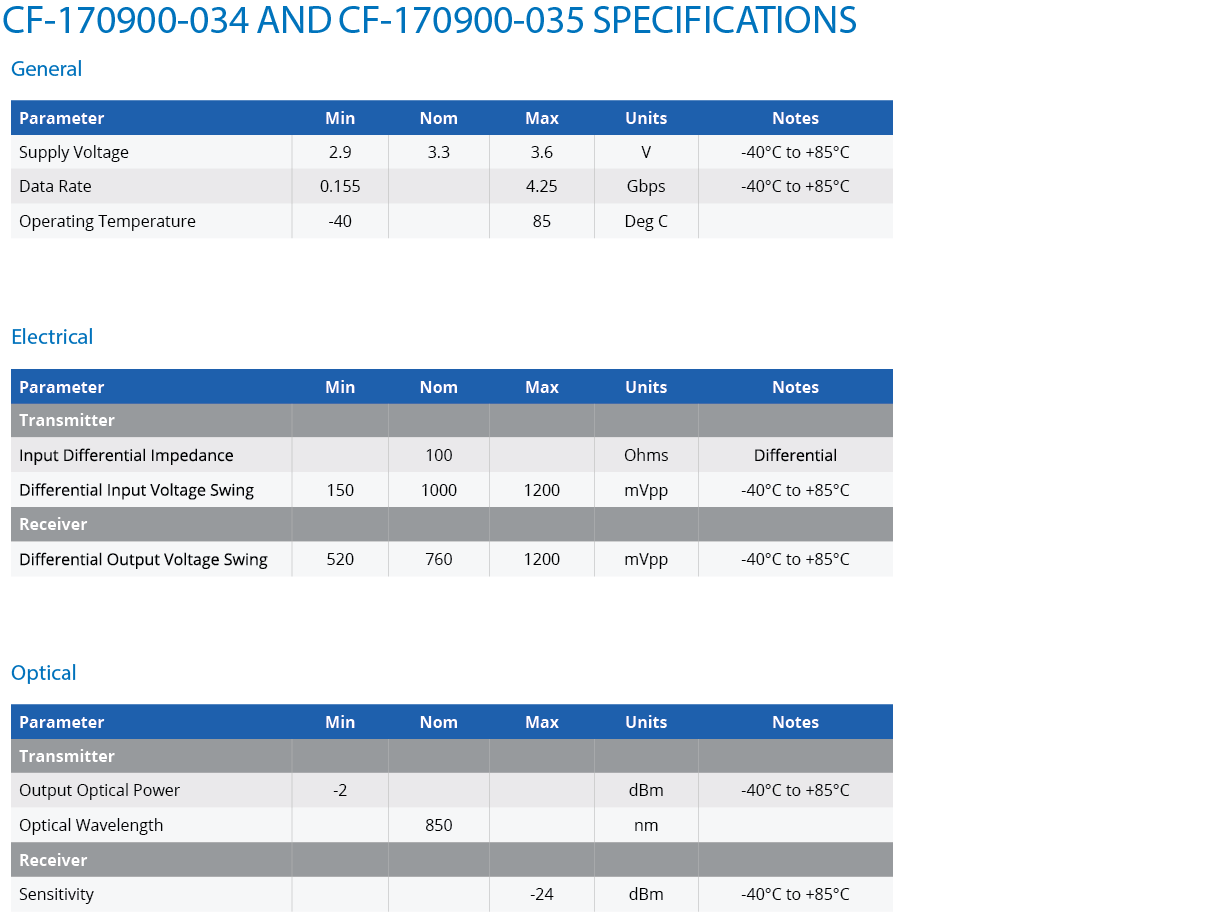

4.25 Gbps Fiber Quad Specs, Pinouts, Dimensions

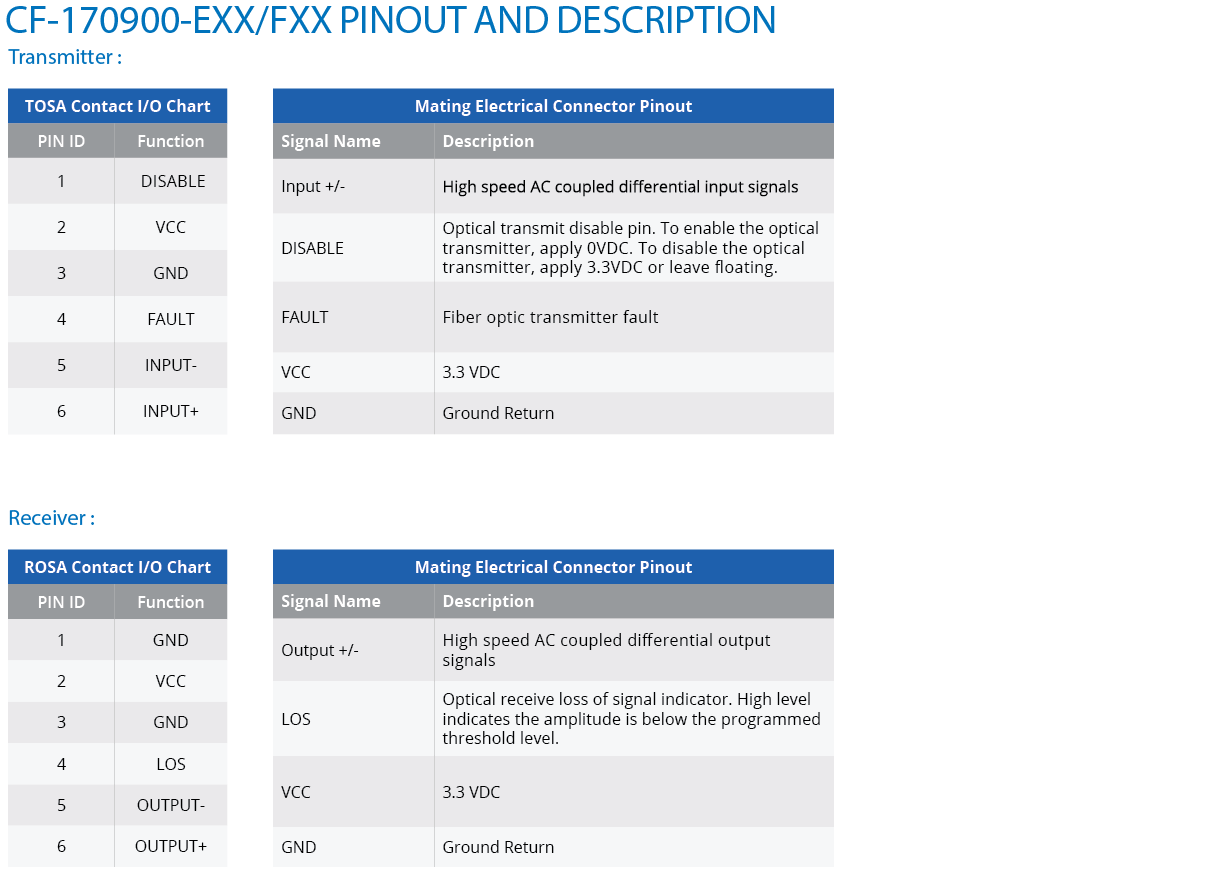

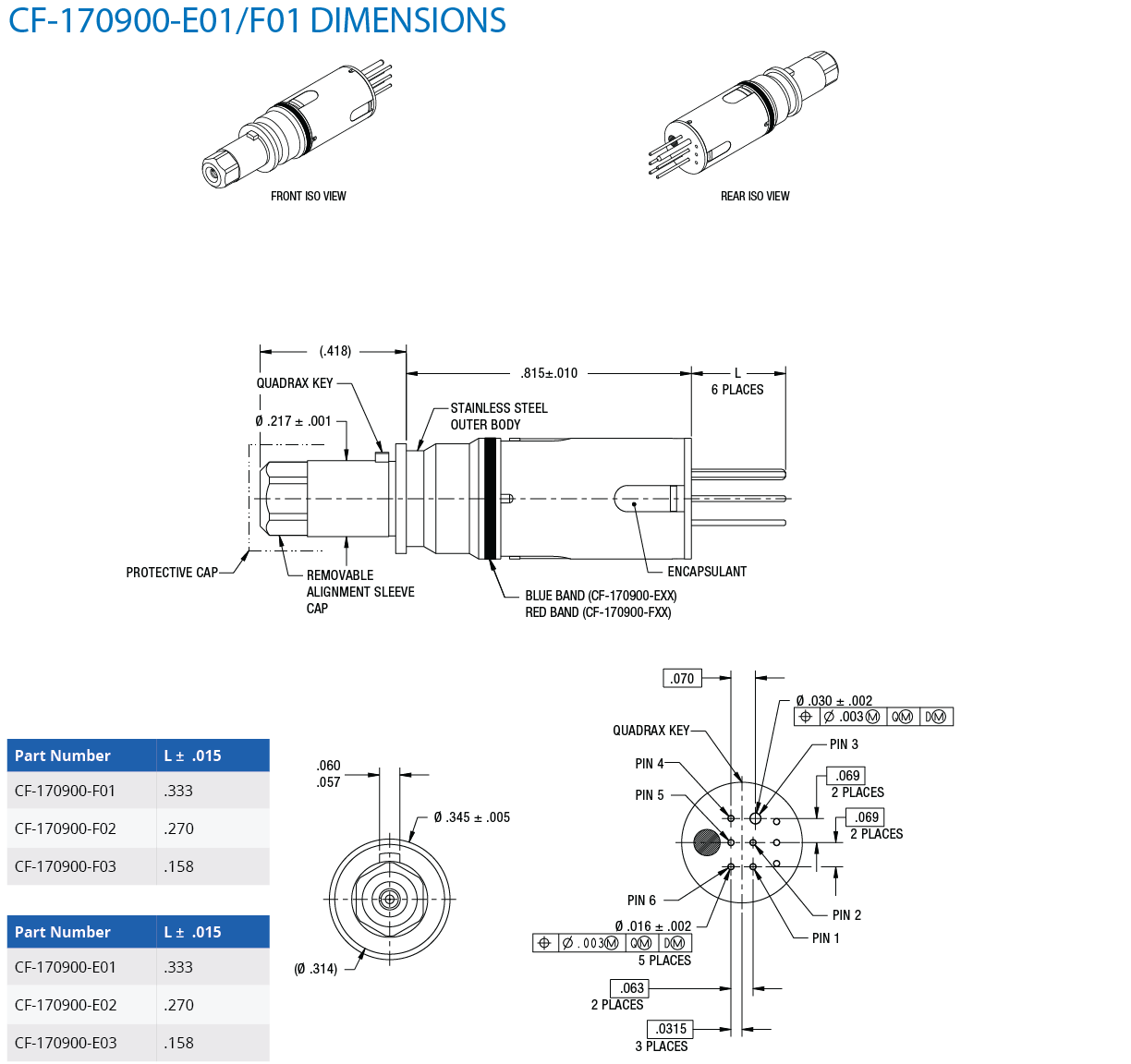

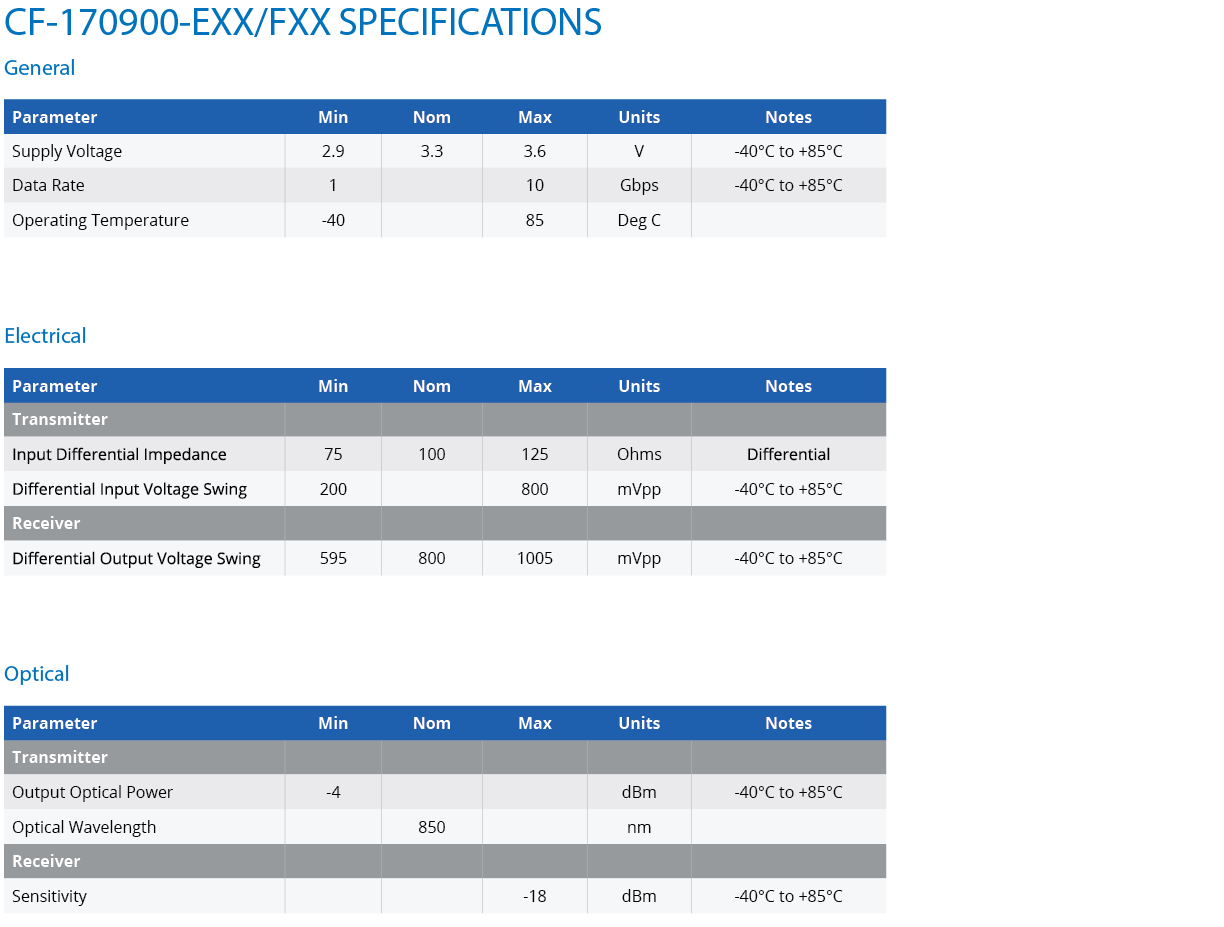

10.3125 Gbps Fiber Quad Specs, Pinouts, Dimensions

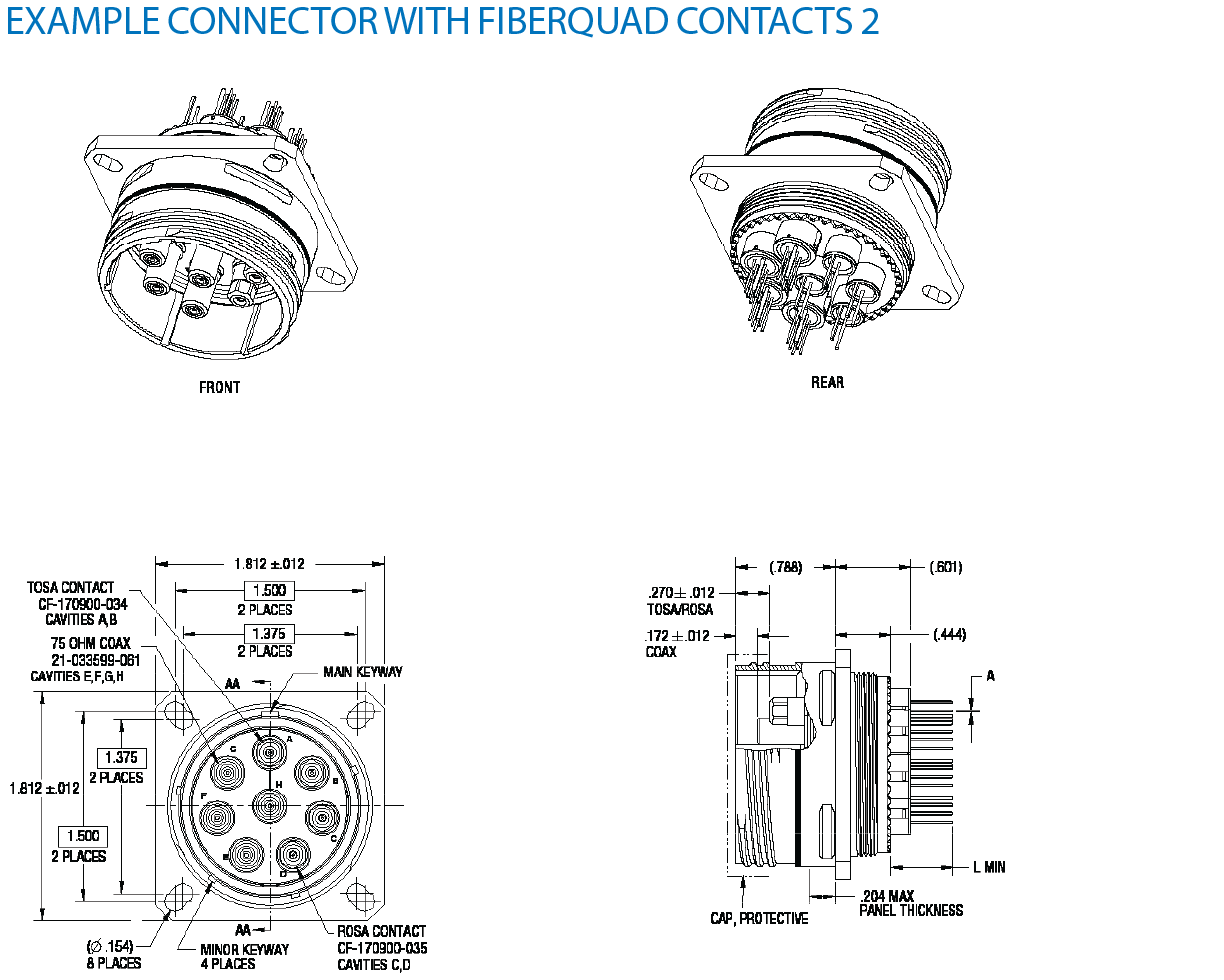

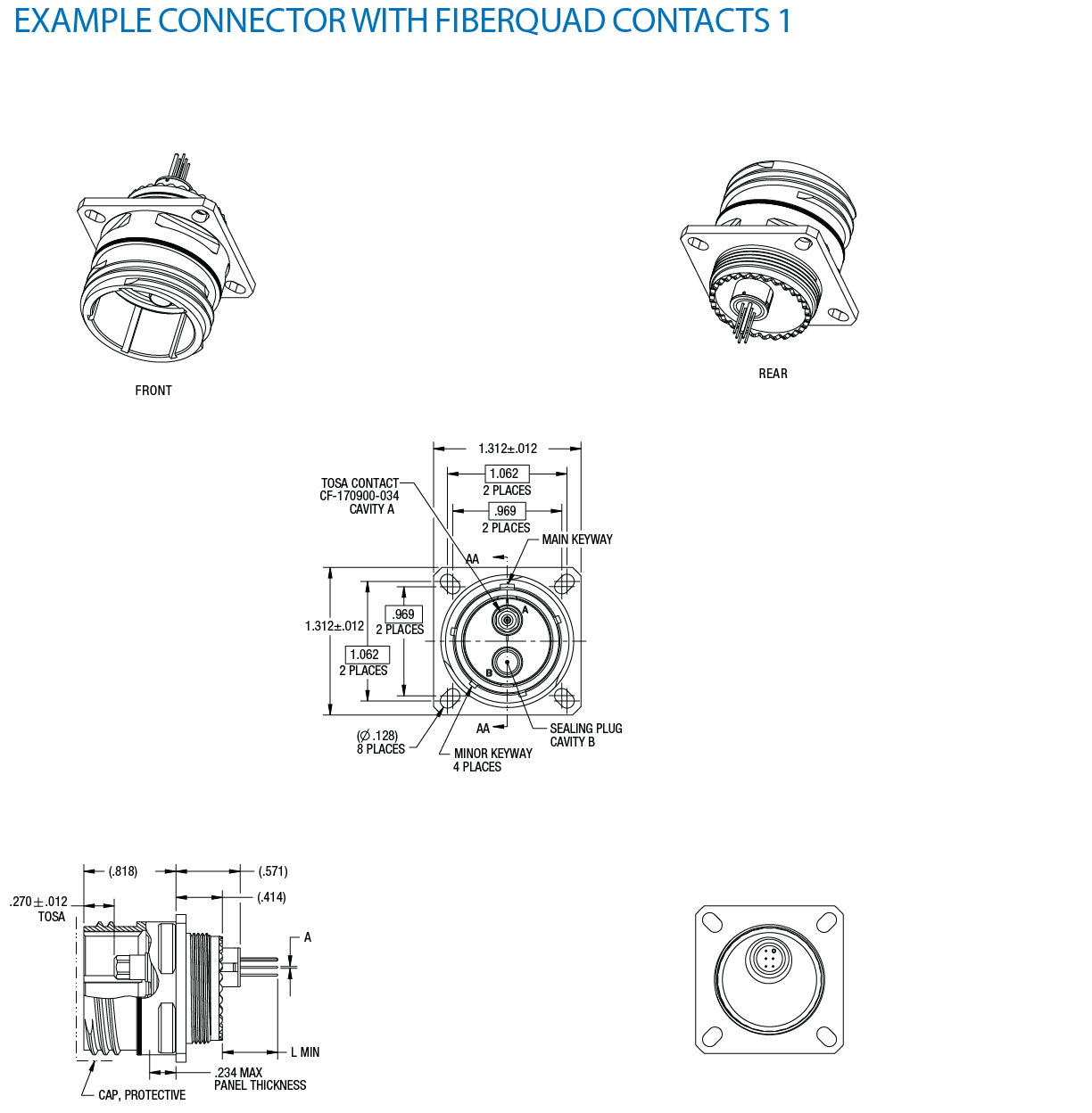

FiberQuad Connector examples

FiberQuad Data Sheet
FiberQuad embeds a fiber optic transmitter or receiver within the contact itself, along with the support electronics to provide a plug-and-play solution to our customers.
Amphenol Fiber Quad Performance Data
Performance Information Attenuation, temperature, and testing
Amphenol Transceiver Cross Reference Guide
Amphenol Transceiver Cross Reference Guide
FiberQuad Evaluation Kit
Rugged Junction Boxes
Ethernet junction boxes for rugged military and other harsh environment applications, featuring a wide range of Amphenol D38999 connectors.
FiberQuad Evaluation Kit
Evaluation and test kit for 4.25Gbps, 10.3125Gbps, and 28.05Gbps FiberQuad
