Series Five Lightweight Military Circular Connectors

Product Series Five Connectors Product Series Five Connectors

Contact:

Amphenol Aerospace
Tech Support
1-800-678-0141
aaotech@amphenol-aao.com

Description:

The MIL-DTL-38999 series of connectors was born in the 1960’s to provide a ruggedized military solution featuring smaller contacts and higher density insert patterns than the already popular MIL-DTL-5015. In the decades since, D38999 connectors have increased in popularity and have become the standard in Mil-Spec connectors for military and aerospace applications.

Along the way, continuous evolution has brought about new shell styles, new coupling methods, new derivatives, and new capabilities, all while remaining as popular as ever.  Amphenol’s new Series Five connector is the next evolutionary step in that impressive lineage, combining all of the capabilities of the traditional 38999 style connector in a lighter, smaller, and more compact package to support the aerospace industry’s ever-changing demands.

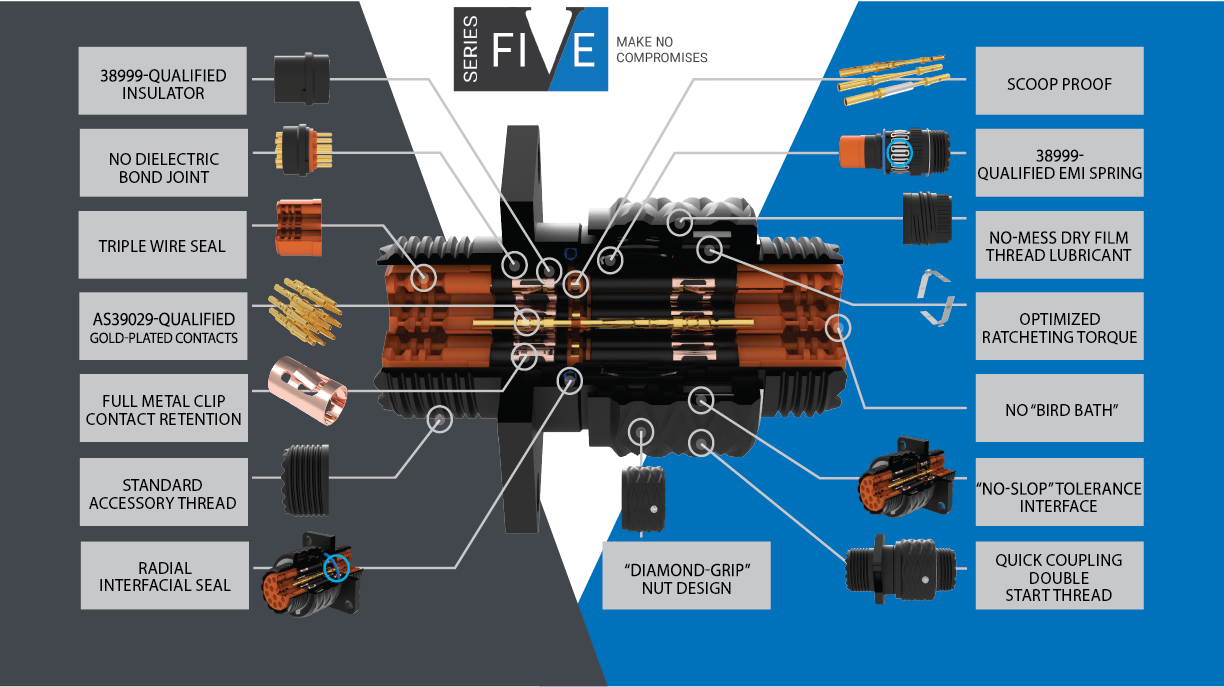

Features & Benefits:

  • 38999-Qualified Insulator and EMI Spring
  • No Dielectric Bond Joint
  • Triple Wire Seal
  • AS39029-Qualified Gold-Plated Contacts
  • Full Metal Clip Contact Retention
  • Standard Accessory Thread
  • Radial Interfacial Seal
  • "Diamond-Grip" Nut Design
  • Scoop Proof
  • No-Mess Dry Film Thread Lubricant
  • Optimized Ratcheting Torque
  • "No-Slop" Tolerance Interface
  • Quick Coupling Double Start Thread
FAQ's
Features & Benefits

Series Five Features & Benefits

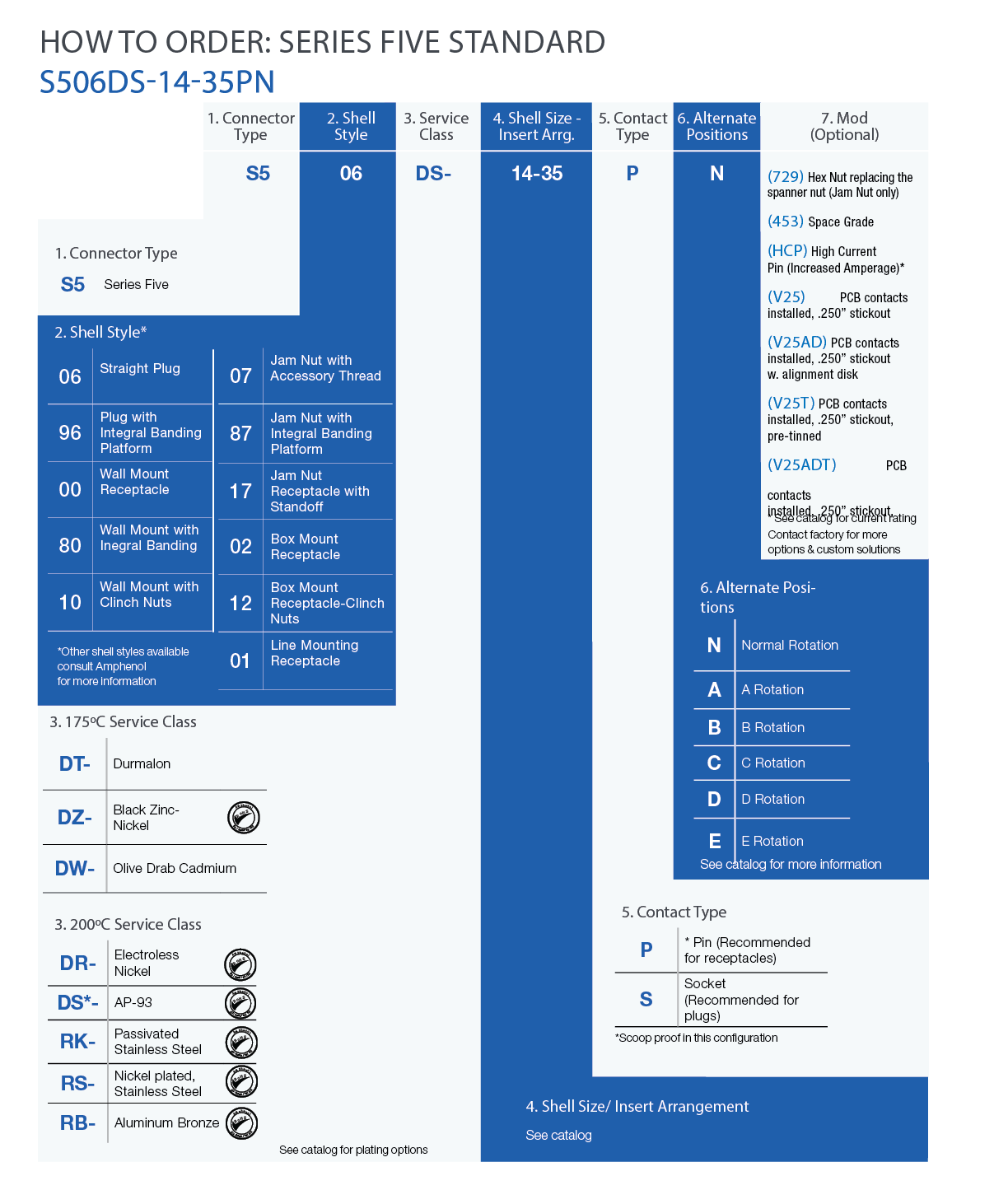

How to Order

Series Five How to Order Guide

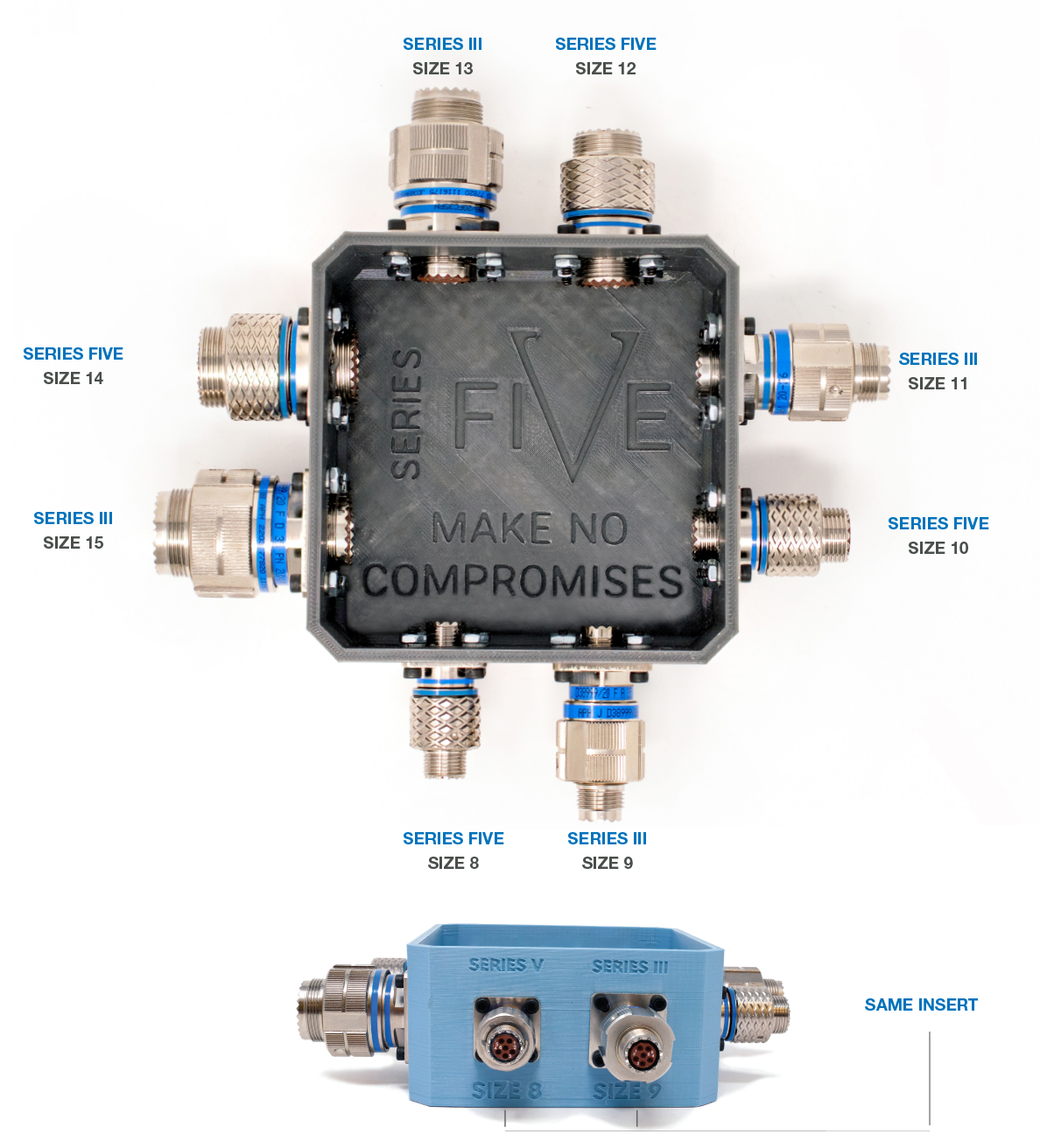

Size Comparison

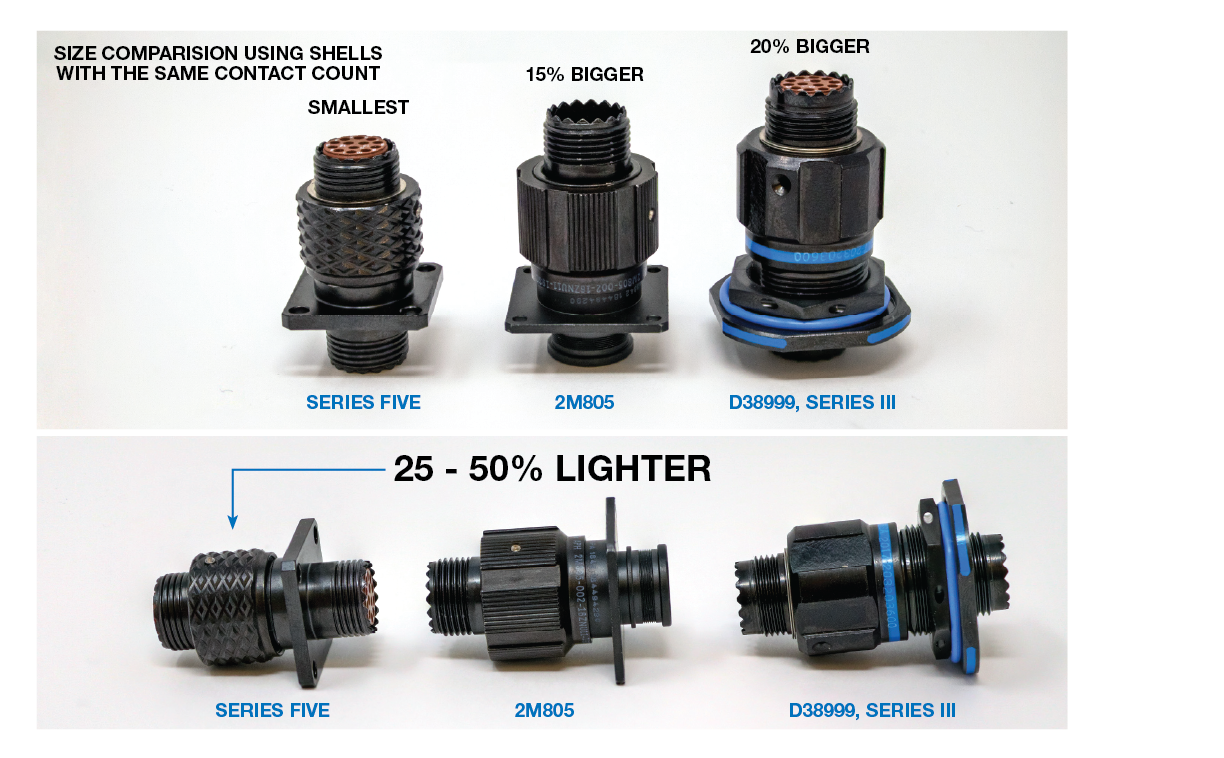

Series Five Size Comparison to 2M and D38999

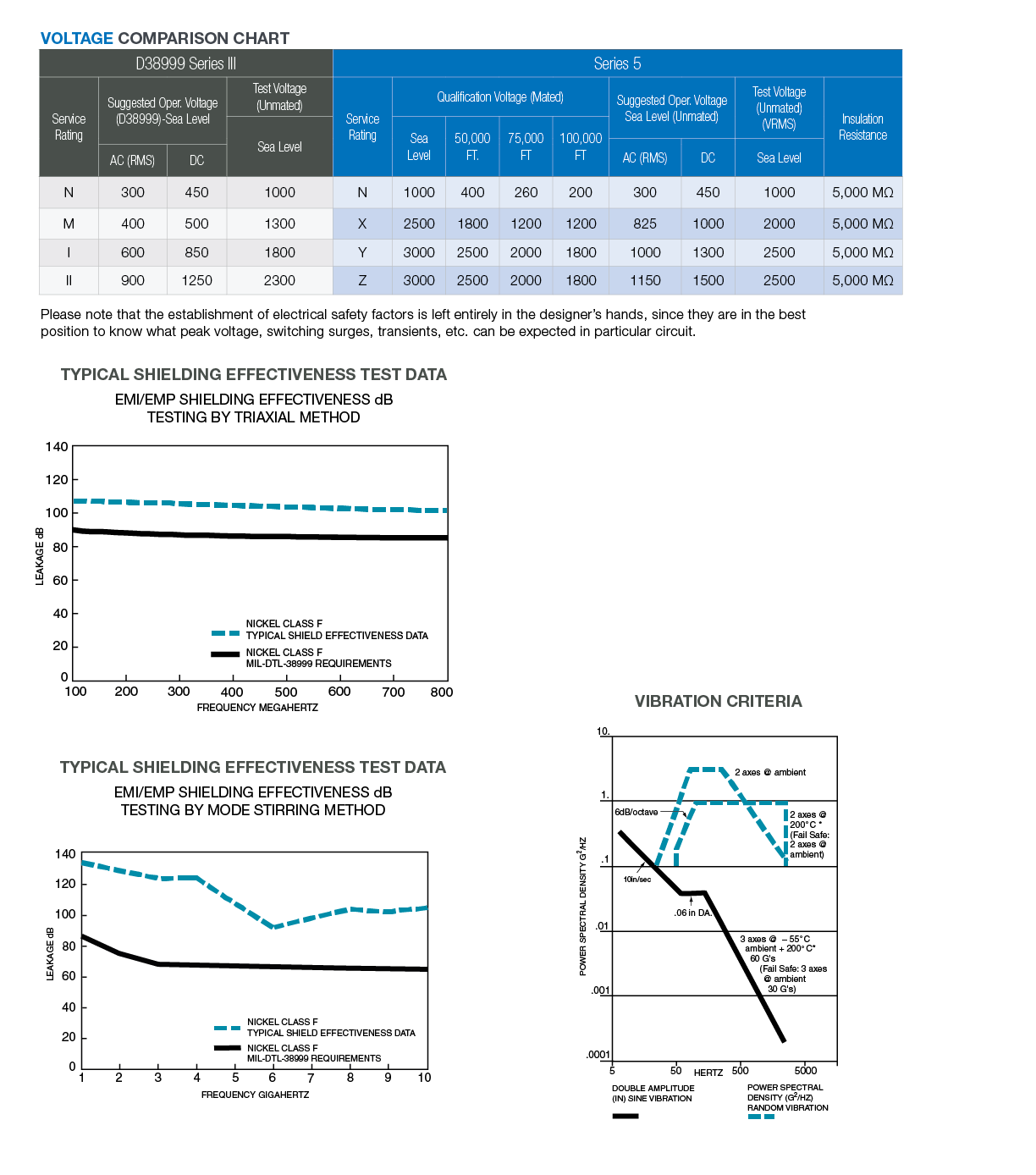

Voltage Rating & Test Data

Series Five Voltage Rating & Test Data

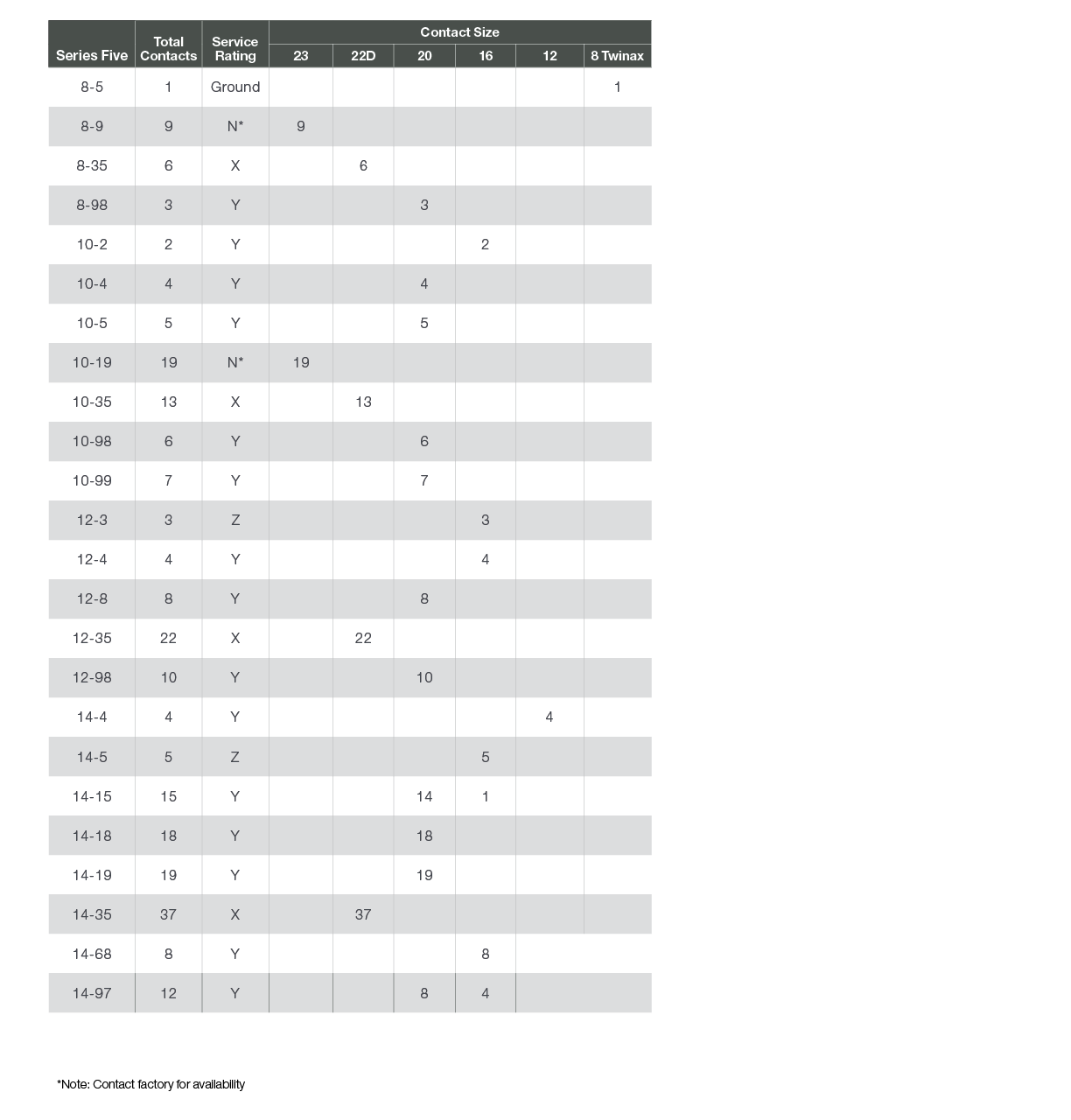

Insert Availability

Series Five Insert Availability

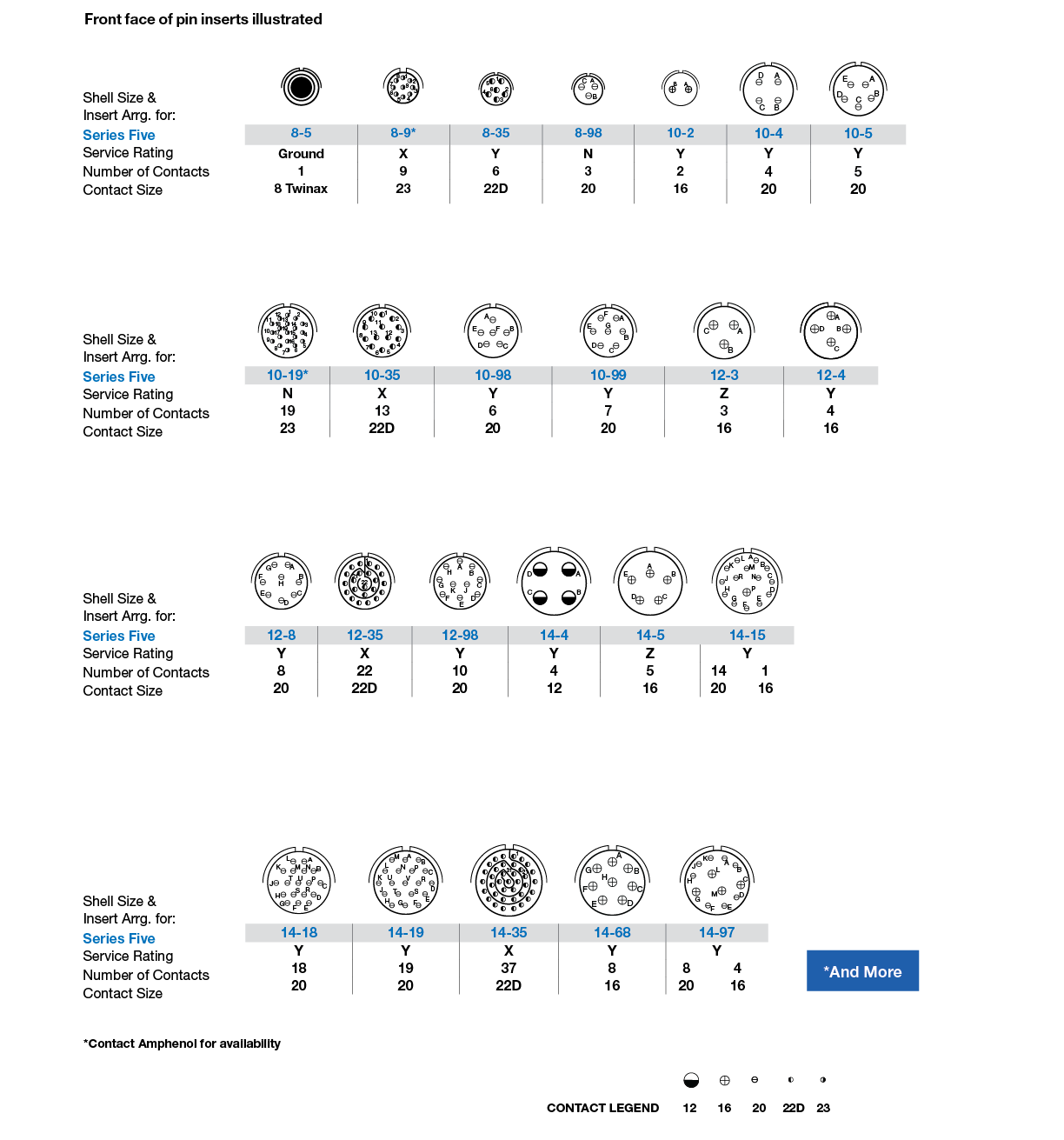

Insert Arrangements

Series Five Insert Arrangements

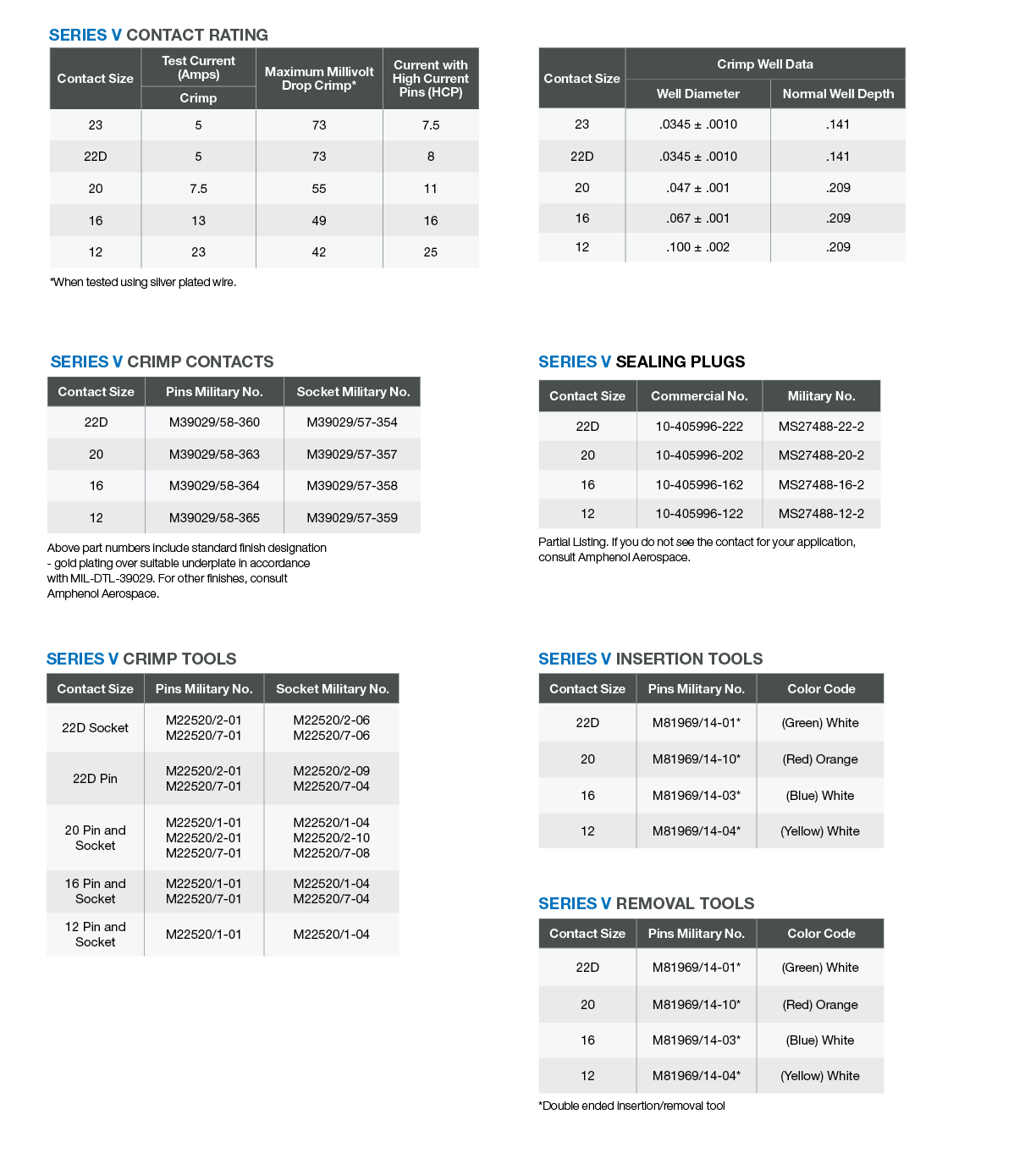

Contact Ratings, Contacts, Sealing Plugs & Crimping Tools

Series Five Catalog
Amphenol circular connector combining all of the capabilities of the traditional 38999 style connector in a lighter, smaller, and more compact package
Series Five Test Report
Test to determine the capabilities of Series Five connectors compared to MIL-DTL-38999 under a variety of harsh conditions.
Video Series Five: Make No Compromises
Series Five: Make No Compromises
1:30

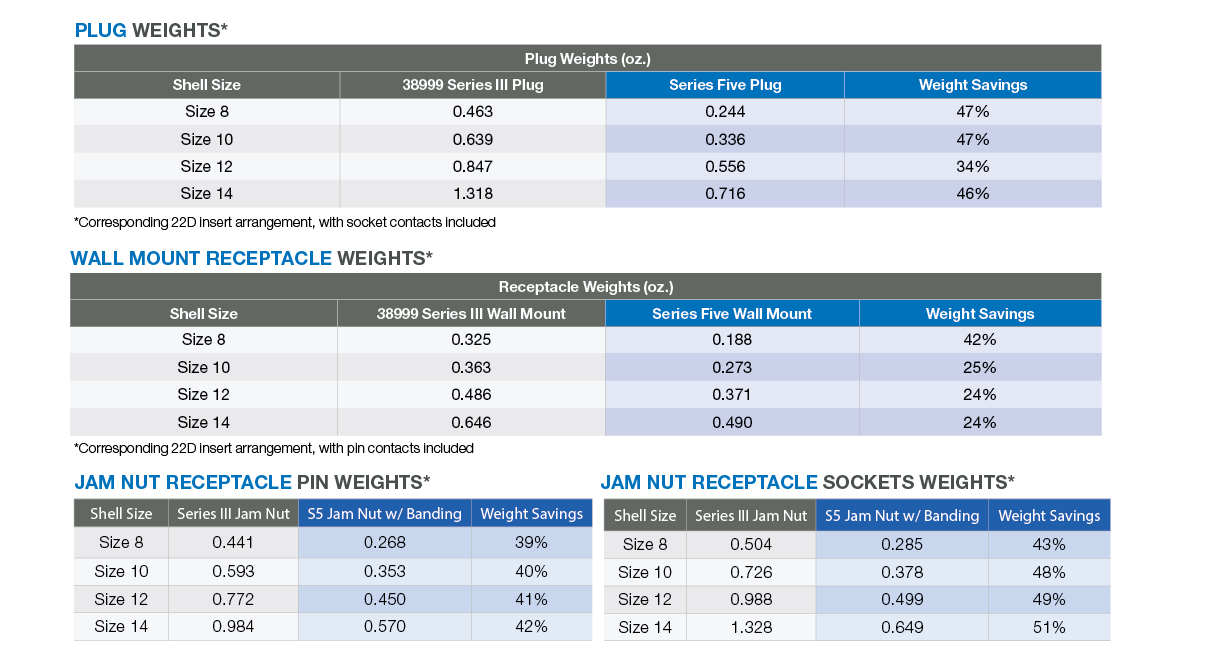

Video Did You Know? Amphenol Series Five Weight Savings
Did You Know? Amphenol Series Five Weight Savings
0:58
Video Series Five – Now with High-Temp options and More Sizes!
Series Five – Now with High-Temp options and More Sizes!
2:32
Video Series Five
Series Five
0:54
High Temperature Series Five Connectors
High Temperature Series Five connectors are the ideal solution for interconnect and electrical wire assemblies near engines, firewalls, and other high-heat sources.
AP-93 Plating
REACH/RoHS compliant alternative to Cadmium plating.
Mil-Spec Contacts
A complete line of AS39029 contacts for all major Mil-Spec circular connectors.
