High Power Connector with Safety Design, derived from MIL-DTL-38999

Amphenol’s PowerSafe MIL-DTL-38999 Series III High Power Connector uses first mate/last break and last mate/first break technology and is designed for transmitting high power with voltages up to 500V in harsh environments, all while keeping user safety in mind. PowerSafe offers six contact arrangements for three phase and single-phase applications. Ideal for C5ISR, military avionics and ground vehicles, and missile and naval applications.

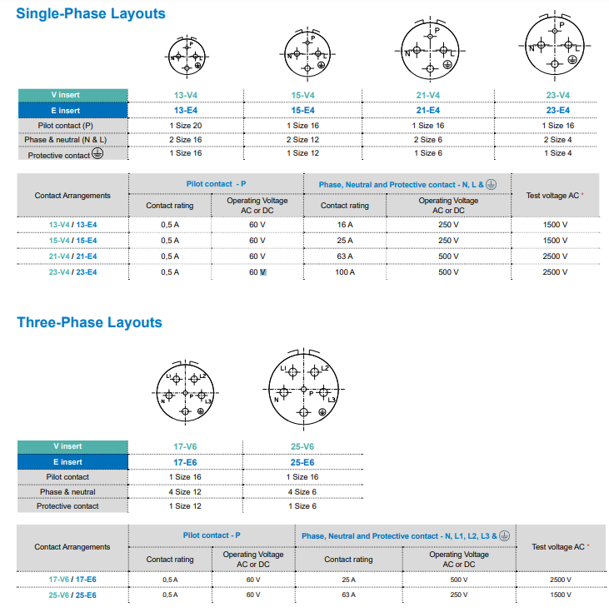

Contact Options:

• Six contact arrangements: 2 X threephase
  inserts and 4 X single-phase inserts
• Contact sizes range from 20 to 4
  AWG, 16 to 100 amps
• Power (phase), ground and pilot pins
• Crimp contacts – gold plating for pilot
  contact and silver plating for protective,
  phase and neutral contacts

Please visit the link below for 3d models and more information.

PowerSafe - Rugged Connectors

• Designed for power applications up to 500V with user safety in mind
• First Mate/Last Break and Last Mate/First Break technology
• Same panel drilling as standard MIL-DTL-38999 Series III
• Compatible with standard caps and M85049 backshells
• Available in aluminum, stainless steel and bronze shell materials
• Standard Amphenol plating options and shell styles available

Environmental & Electrical characteristics:

• 500 mating cycles
• Temperature range from -85 °F (-65 °C) to 302 °F (150 °C) or 392 °F (200 °C), depending on material, plating and insert type
• EMI/RFI Protection : Shell-to-shell bottoming and grounding fingers on plug shell
• IP68 when mated, IP28 unmated (socket version)
• Shell-to-shell conductivity between 1 and 5 mΩ
