Description:

The Industry Standard for Fiber Optics

  • Meets or exceeds MIL-DTL-38999 Series III requirements
  • EMI Shielding-solid metal-to-metal coupling, grounding fingers, electroless nickel plating, and thicker wall sections provide superior EMI shielding capability of 65dB min. at 10 GHz.
  • Termini Protection-recessed pins in this 100% scoop-proof connector minimize potential termini damage
  • Corrosion Resistance-shells of stainless steel or cadmium over nickel plating withstand 500 hr. salt spray exposure
  • Vibration/Shock-operates under severe high-temperature vibration
  • Threaded coupling quickly and completely mates in one 360° turn of the coupling nut

Features & Benefits:

Additional, composite connectors features include:

  • Lightweight - 17%-70% weight savings
  • Increased Corrosion Resistance-olive drab cadmium (175°C) and electroless nickel plating (200°C) both withstand 2000 hours of salt spray exposure
  • Durability-1500 couplings minimum (in reference to connector couplings, not termini)

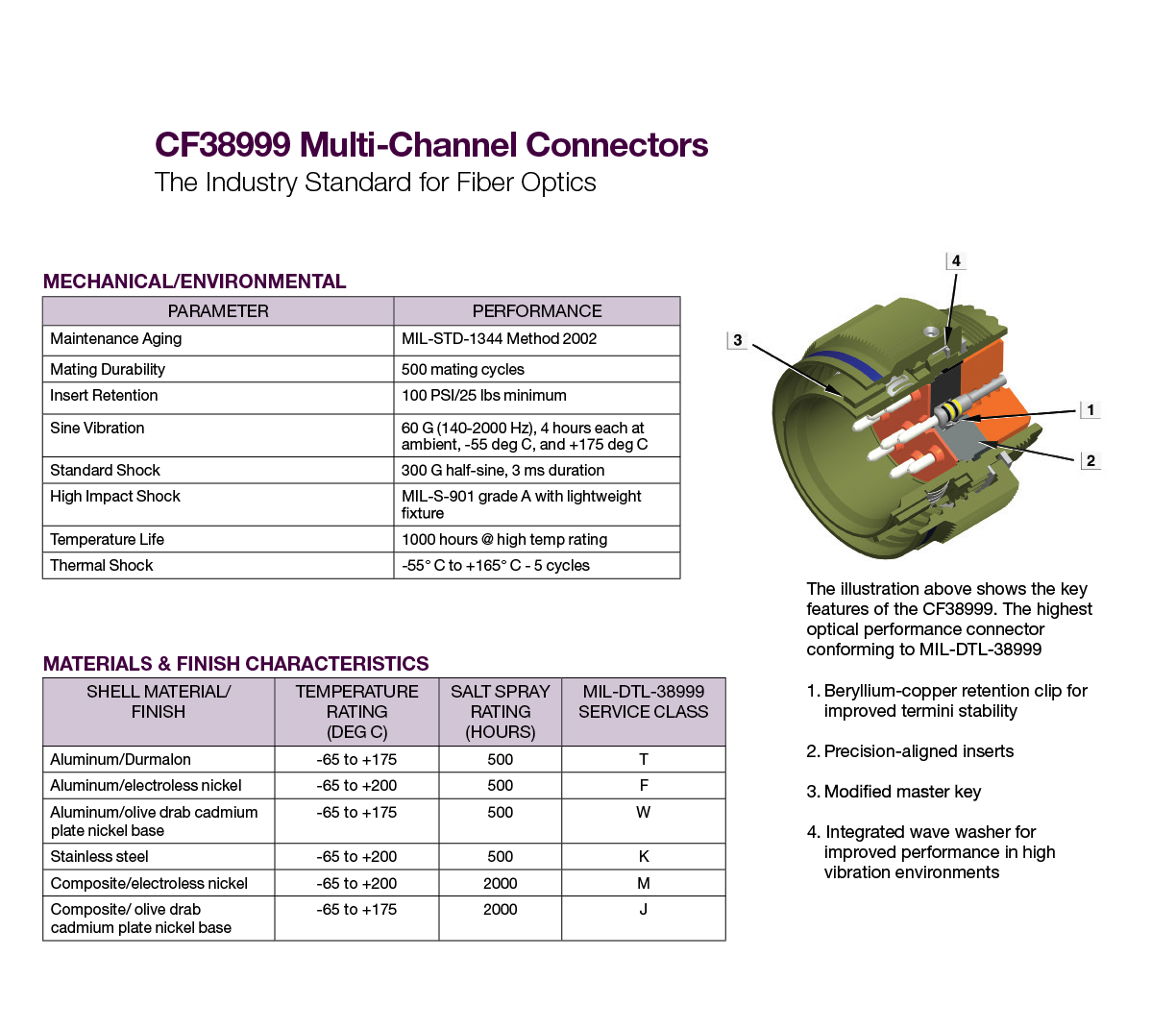

Performance Specifications

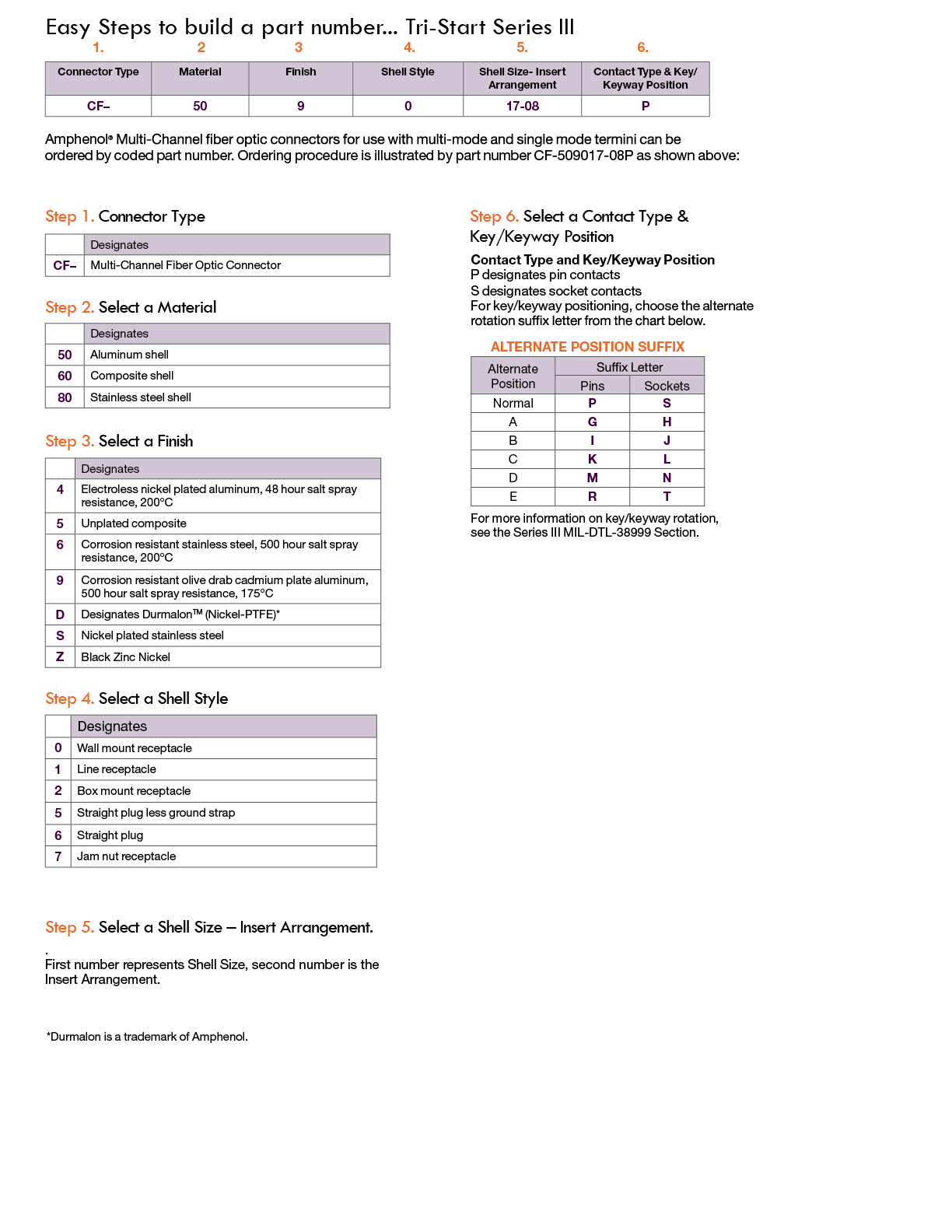

How to Order Guide

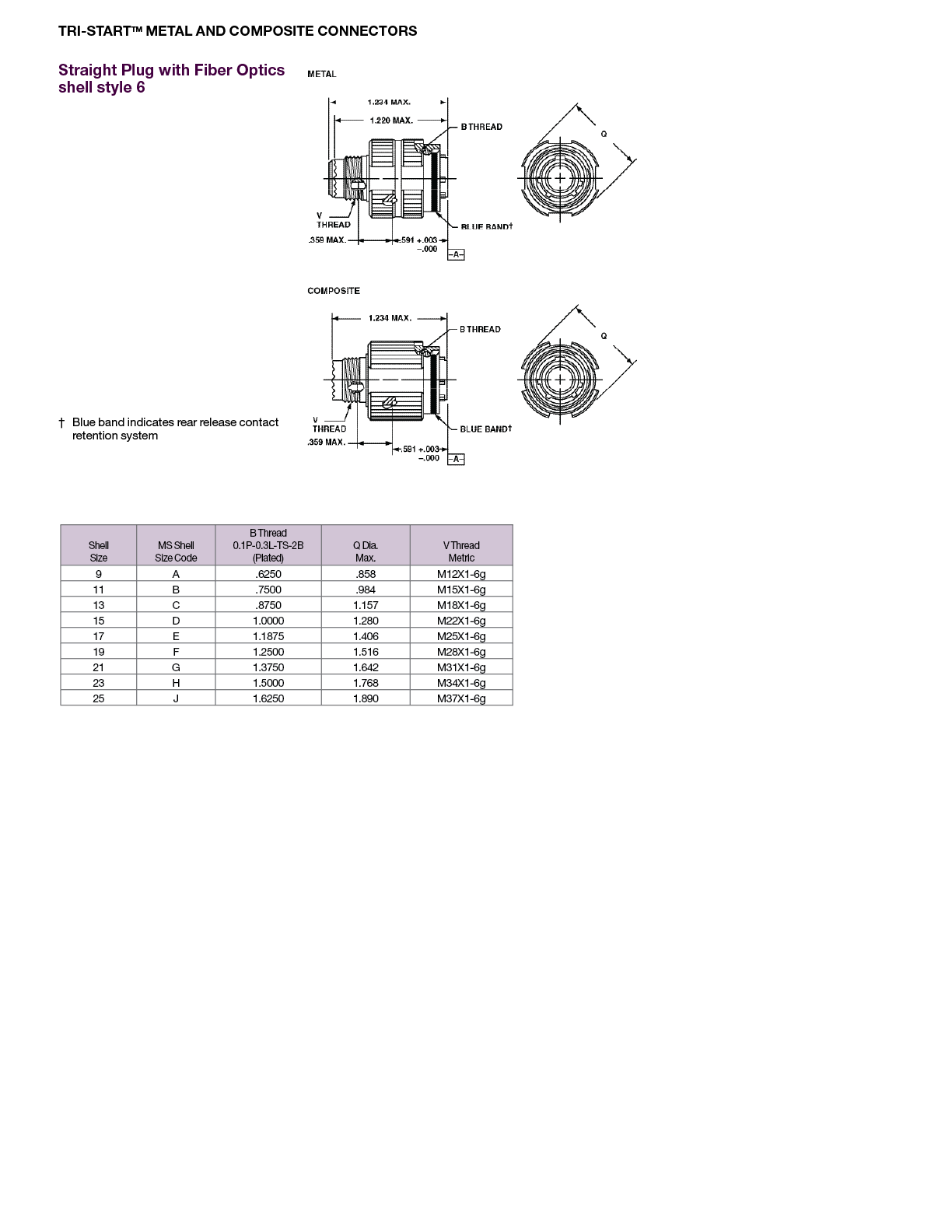

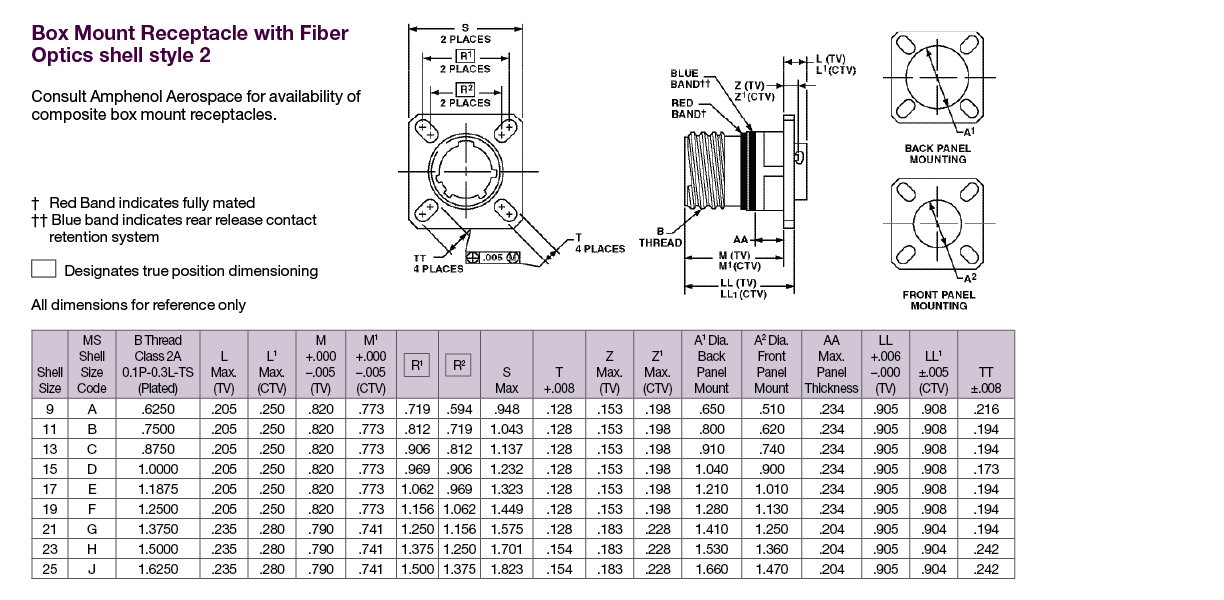

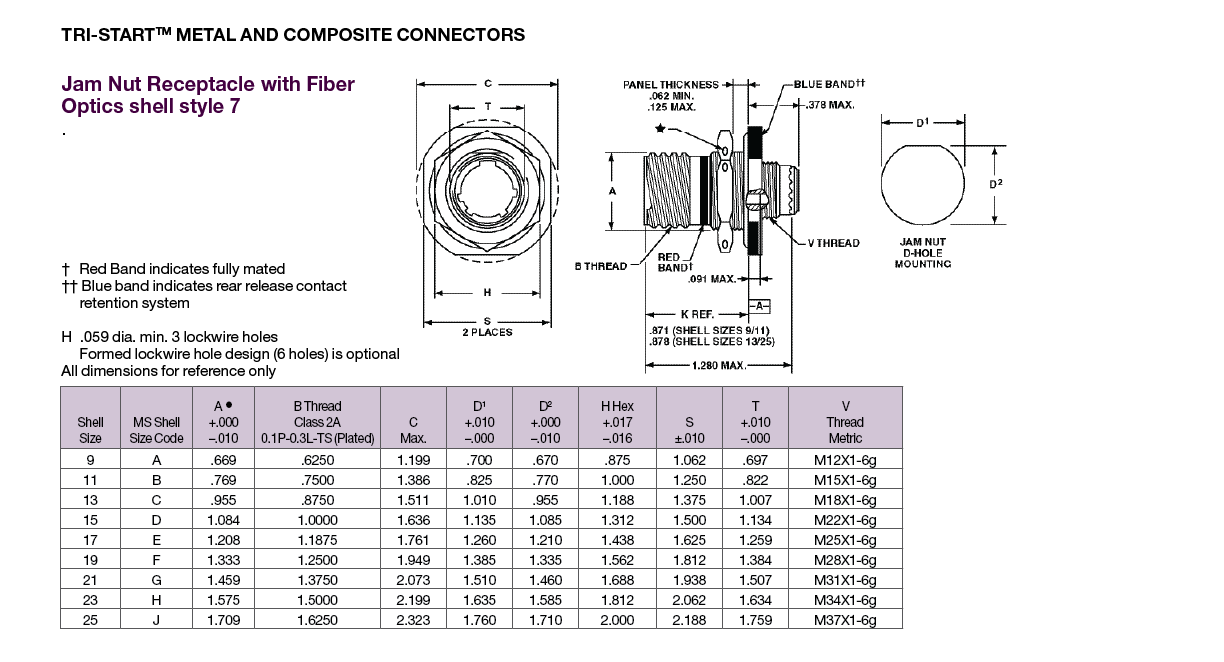

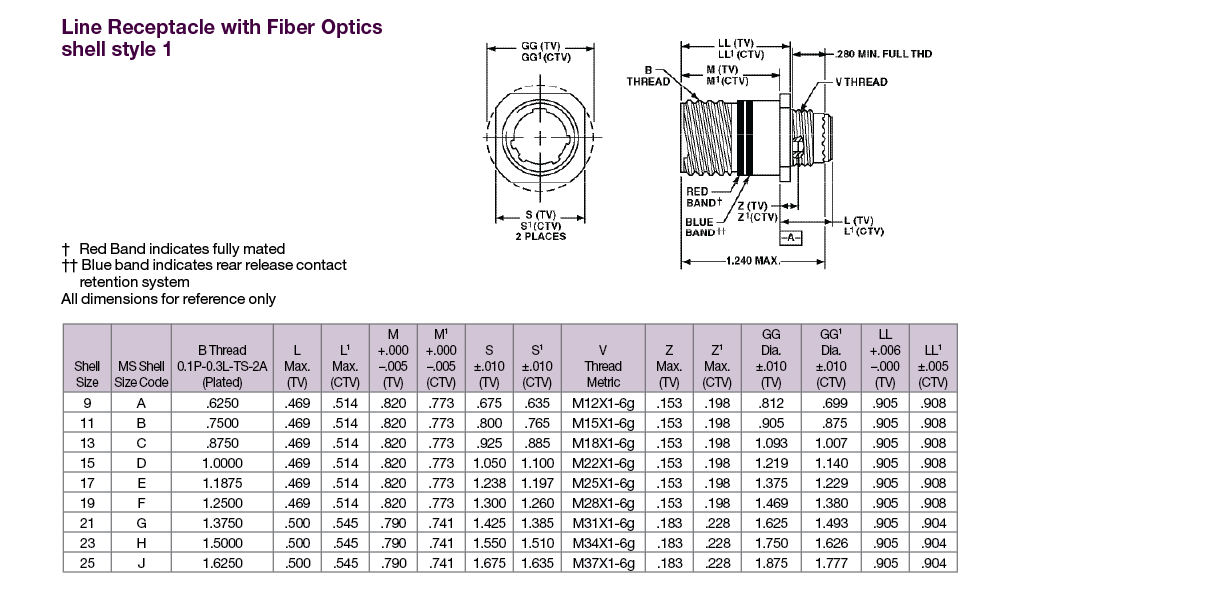

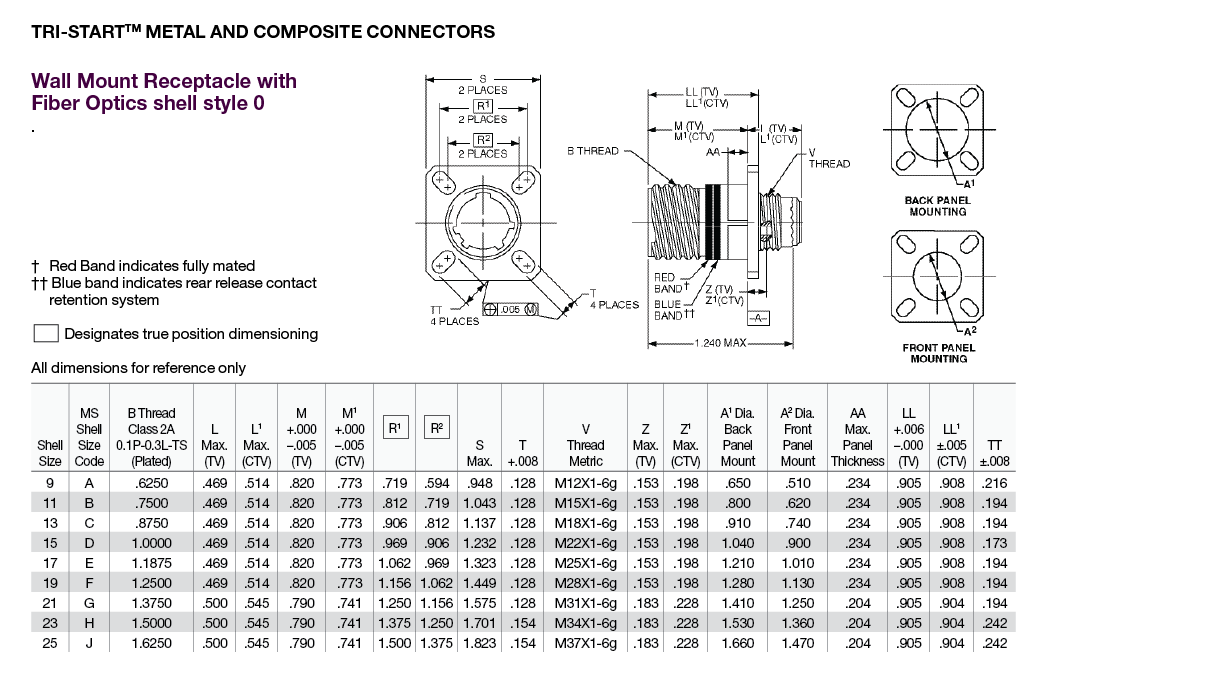

Dimensions

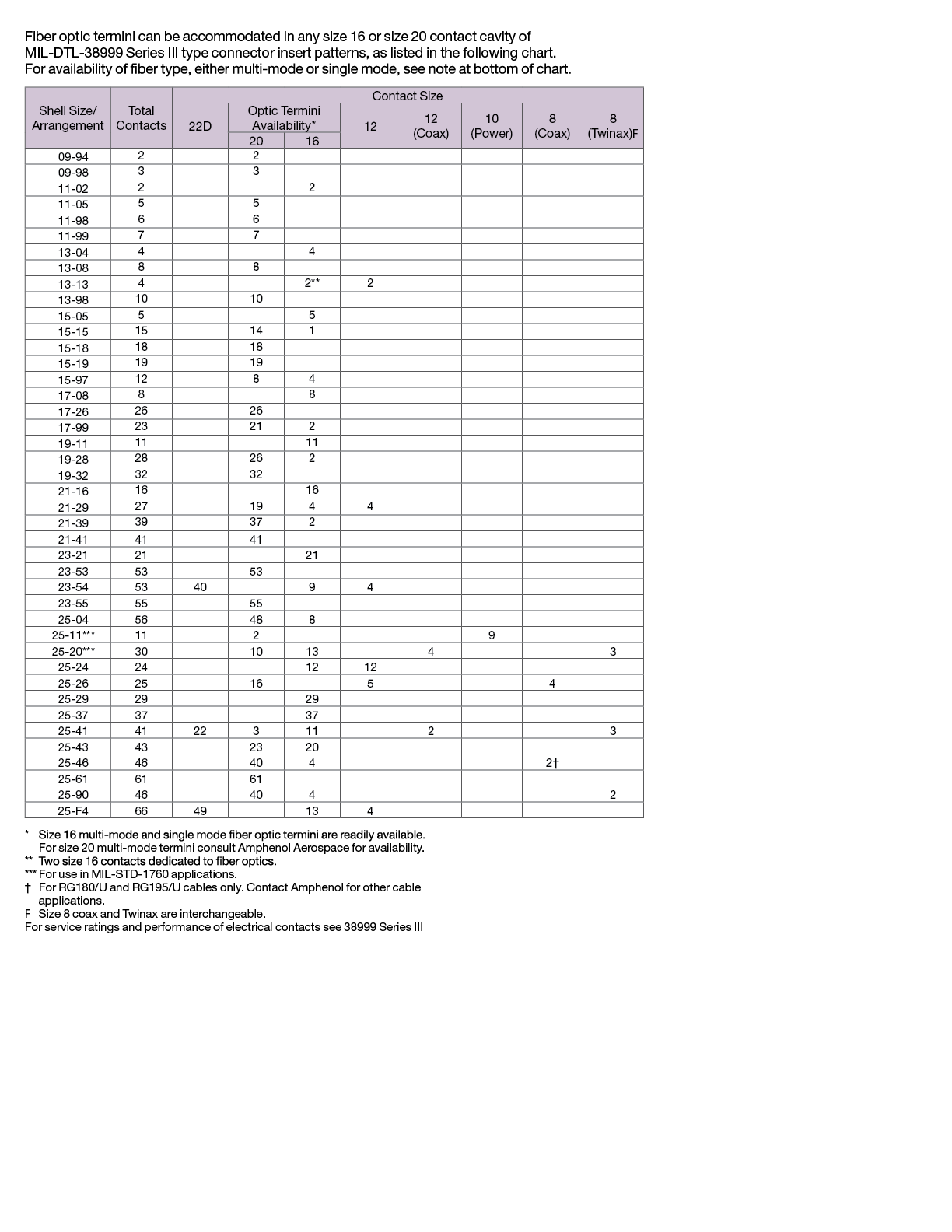

Insert Chart

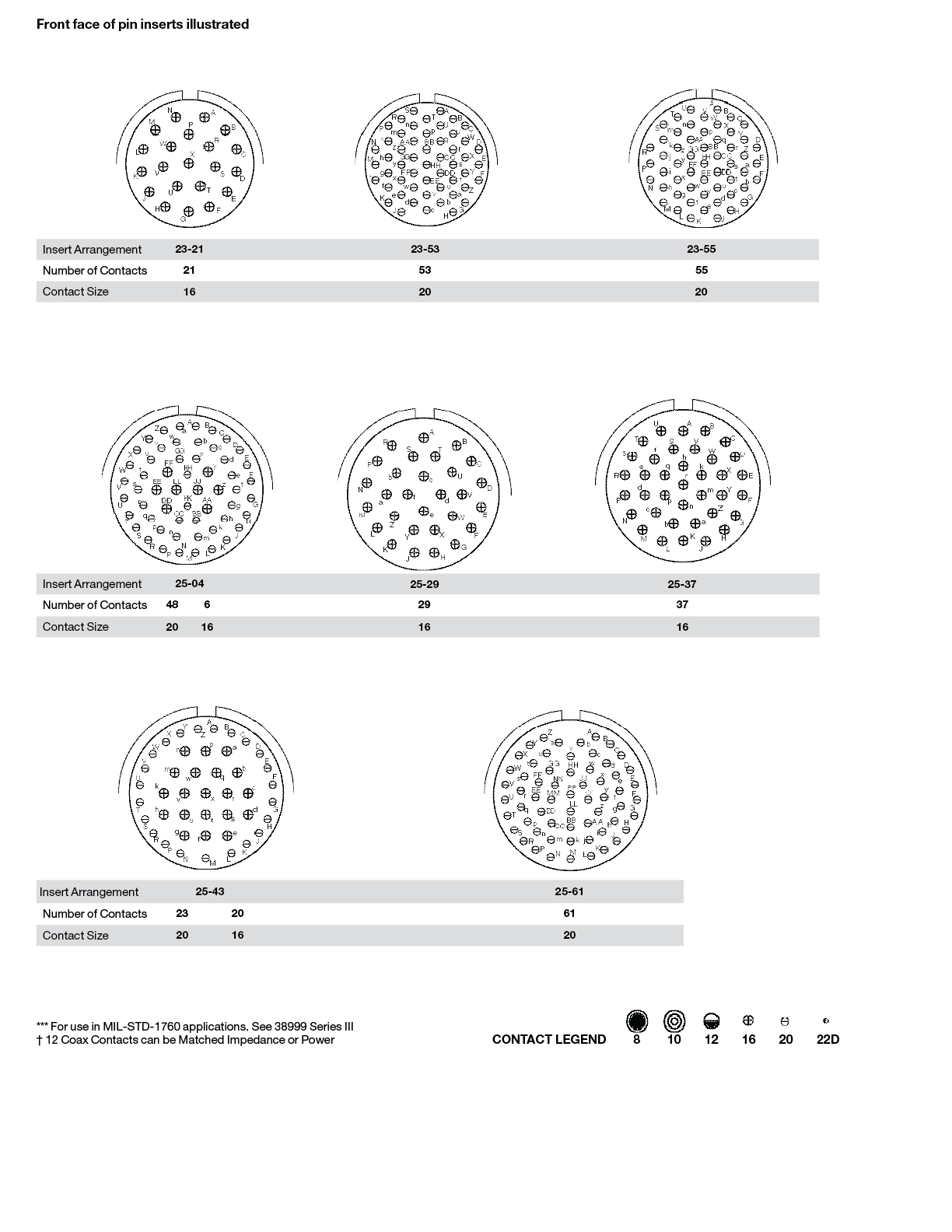

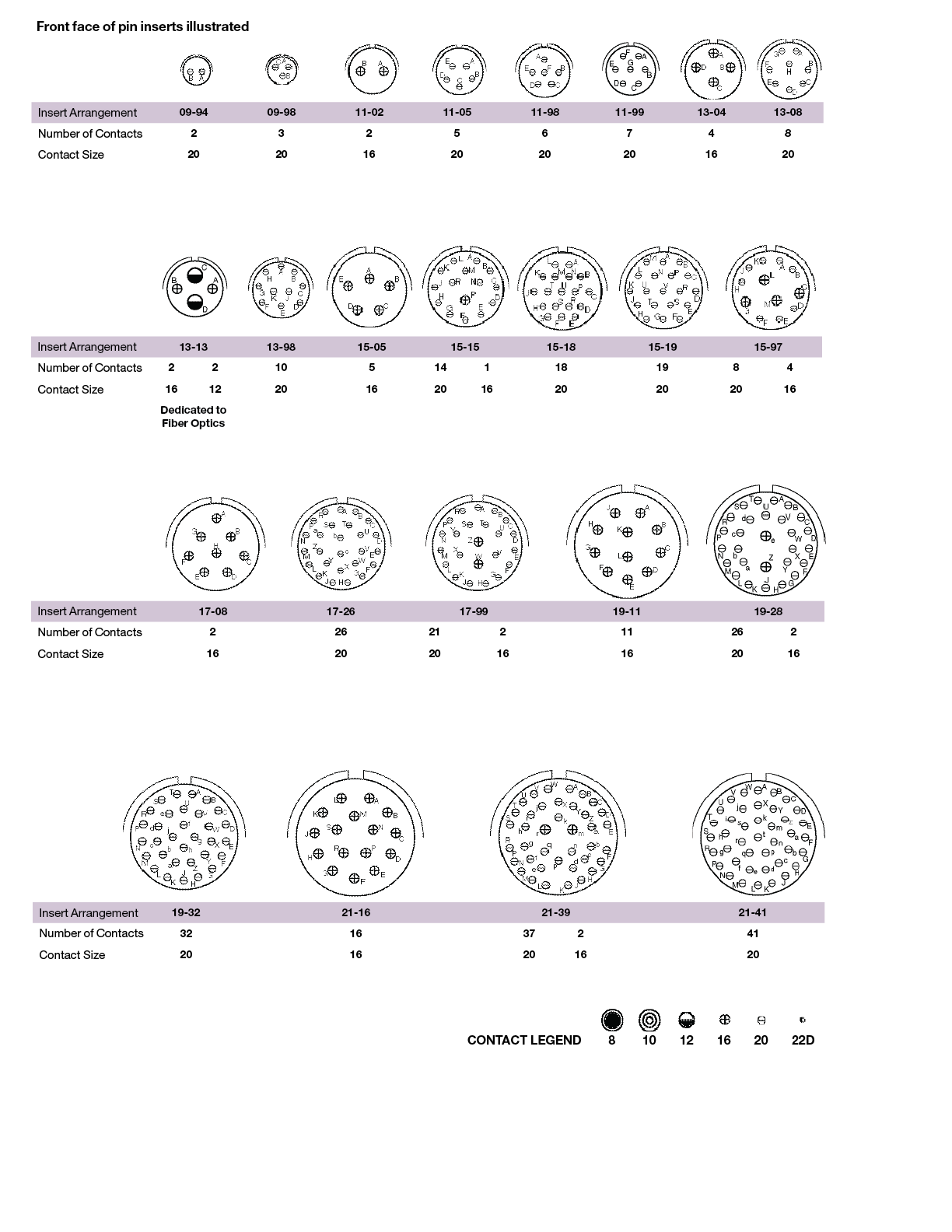

Insert Arrangements

MIL-PRF-29504 Termini (Size 16)

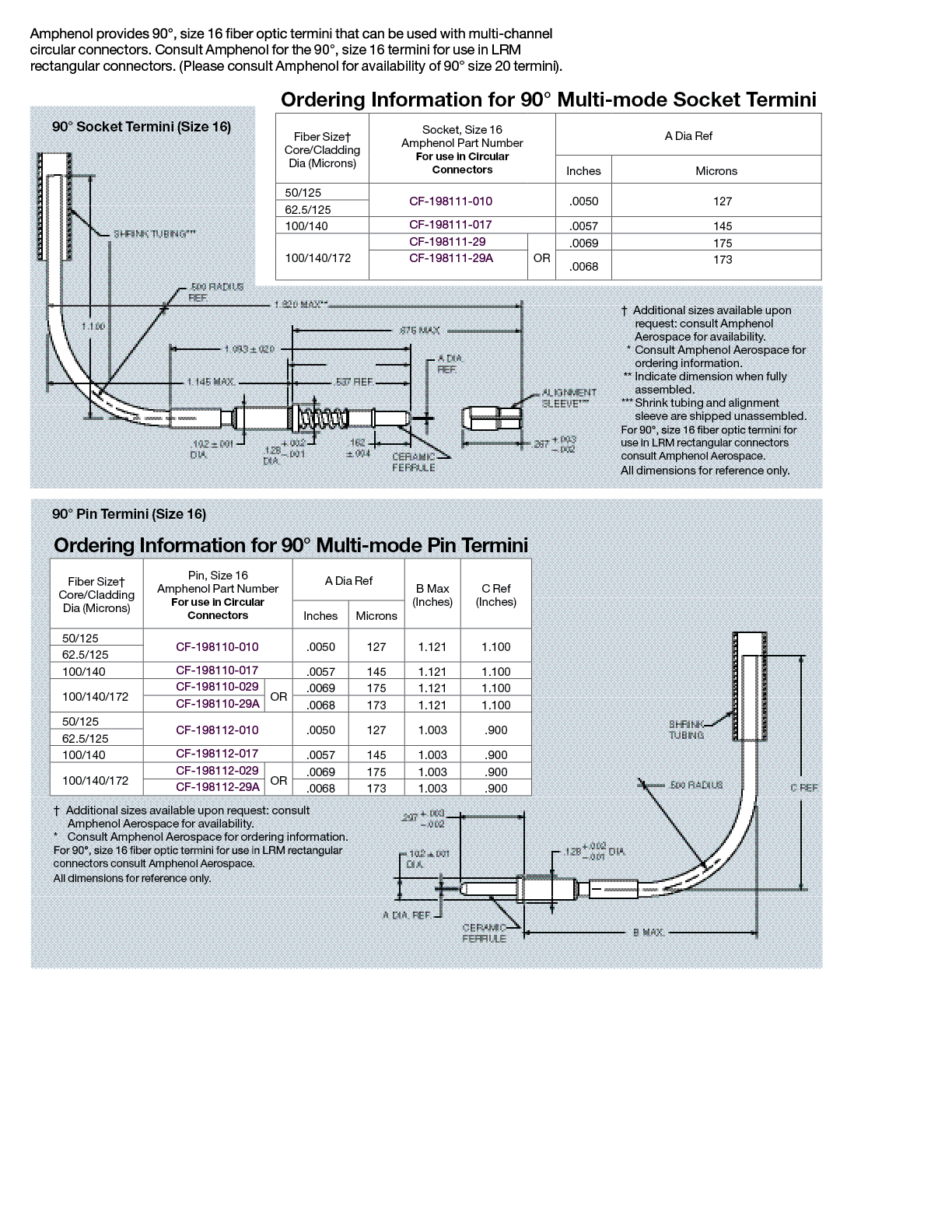

90-Degree Multi-Mode Termini (Size 16)

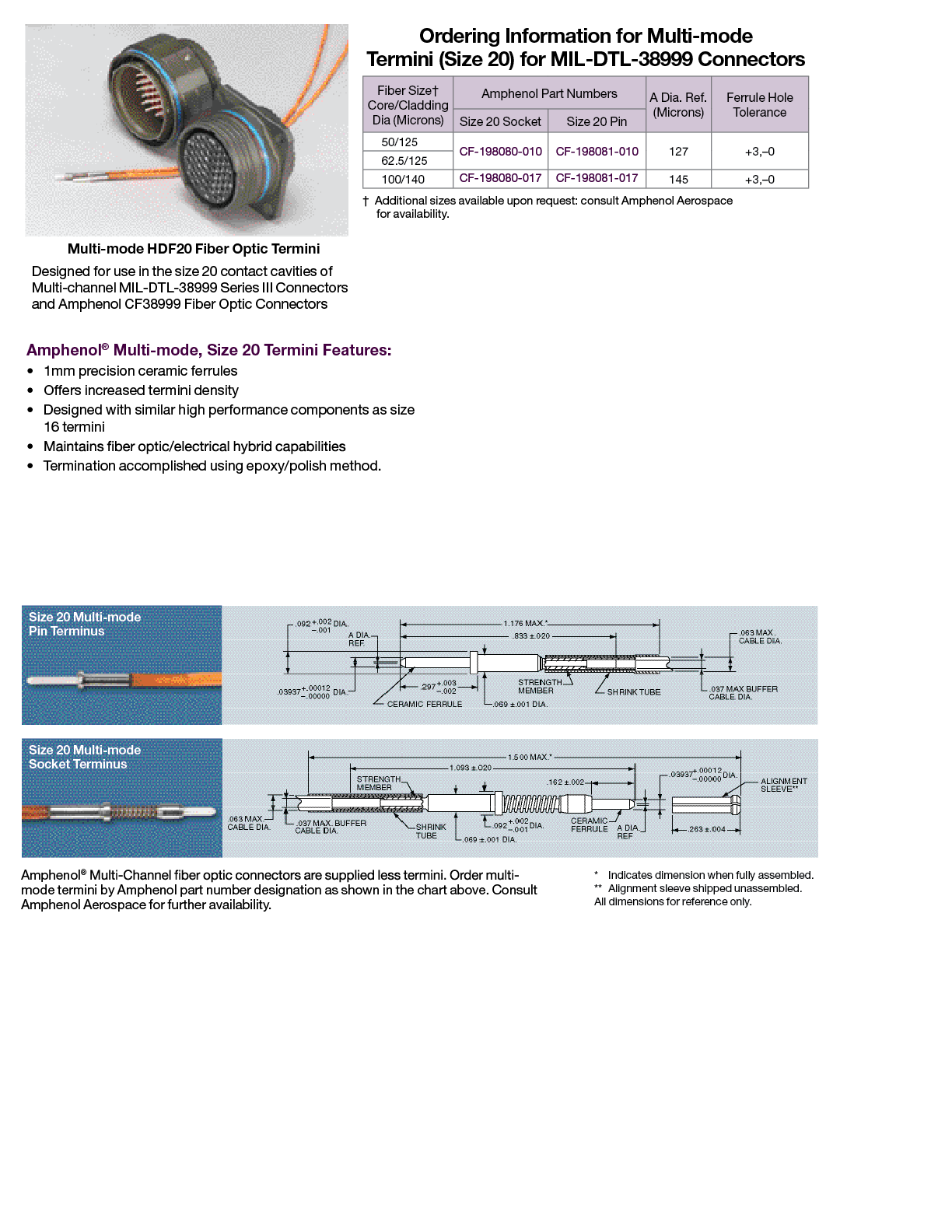

Multi-Mode Termini, HD20

Accessories

Application Tools for Multi-Mode Termini

Fiber Optic Catalog Section
Amphenol Aerospace offers a wide range of fiber optic interconnect solutions for use in the harsh environments found in military and aerospace applications.
