JSFC15/JSFC16 Connectors
Contact:
Description:
Approved for use in JSF/F35 applications. Based on Amphenol Composite Tri-Start, qualified to MIL-DTL-38999.
Features & Benefits:
- Increased Corrosion Resistance-nickel plating (392 °F/200 °C) both withstand 2000 hours of salt spray exposure.
- Durability-1500 couplings minimum (in reference to connector couplings, not termini)
- Termini Protection-recessed pins in this 100% scoop-proof connector minimize potential termini damage
- Vibration/Shock-operates under severe high-temperature vibration
- Threaded coupling quickly and completely mates in one 360° turn of the coupling nut
Performance Specifications
Parameter | Performance |
Maintenance Aging | MIL-STD-1344 Method 2002 |
Mating Durability | 500 Mating Cycles |
Insert Retention | 100 PSI/25 lbs minimum |
Sine Vibration | 60 G (140-2000 Hz), 4 hours each at amient, -55 deg C, and +175 deg C |
Standard Shock | 300 G half-sine, 2 ms duration |
High Impact Shock | MIL-S-901 grade A with lightweight fixture |
Temperature Life | 1000 hours @ high temp rating |
Thermal Shock | -55°C to +165°C - 5 cycles |

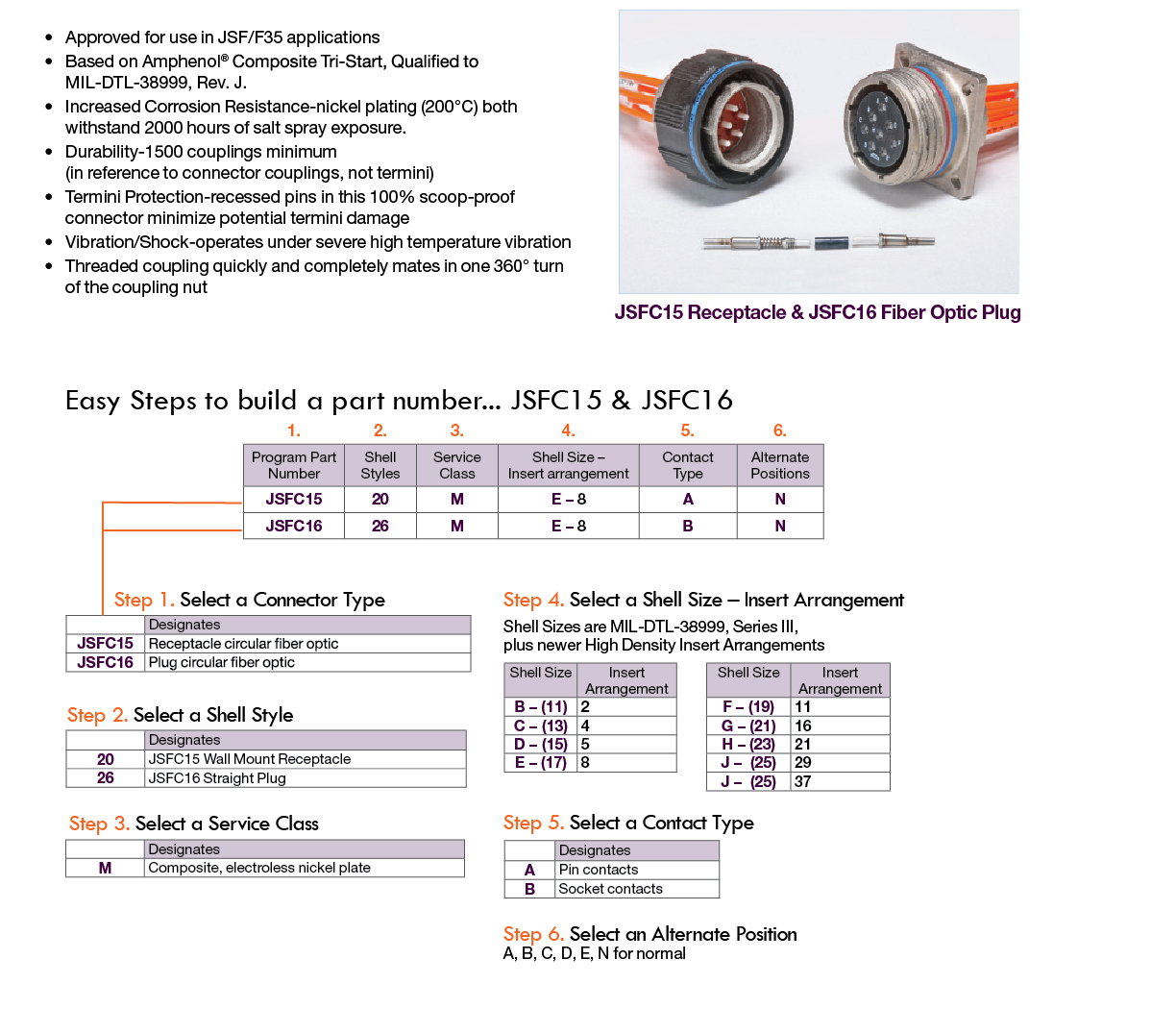

How to Order Guide

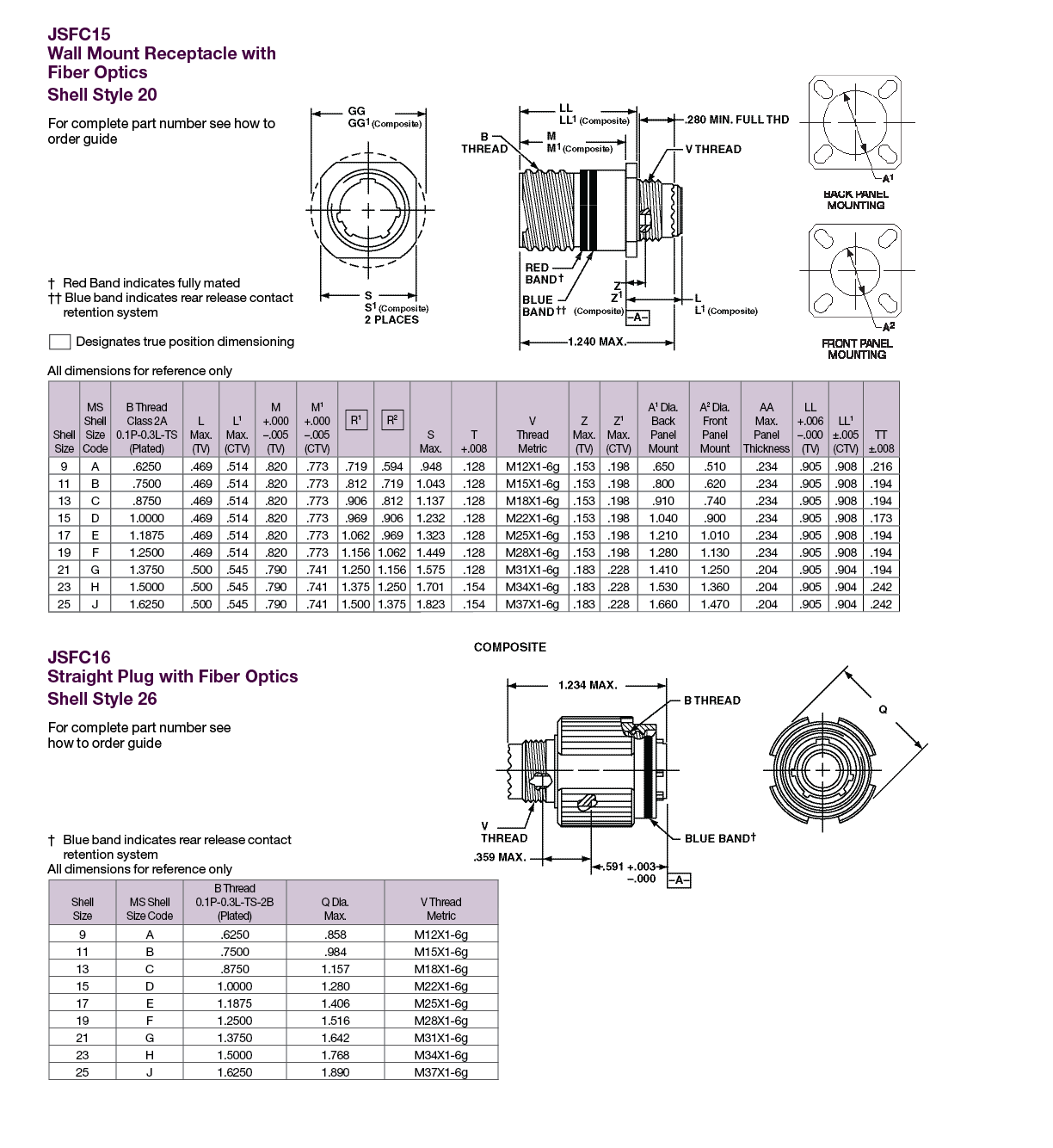

Dimensions

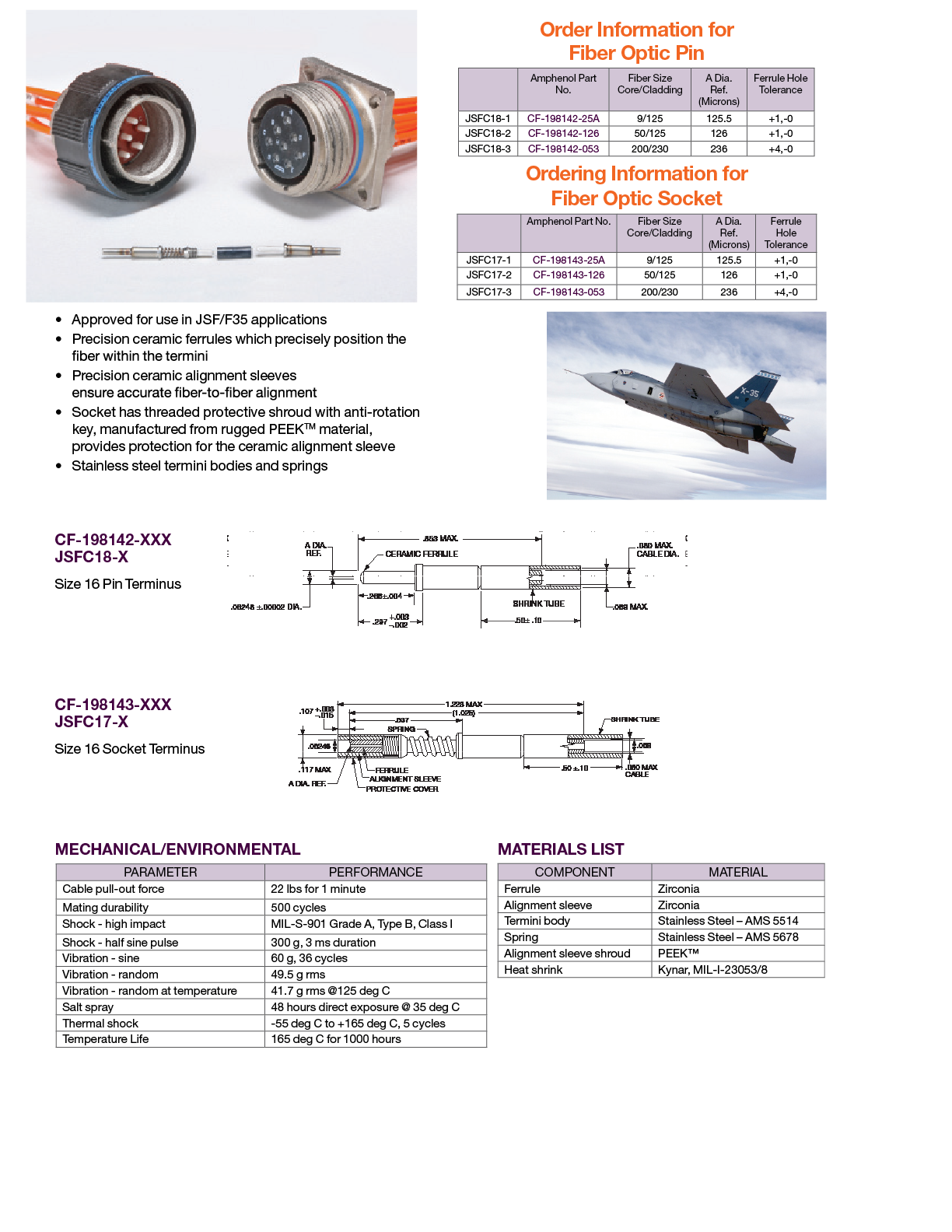

JSFC17/JSFC18 Termini

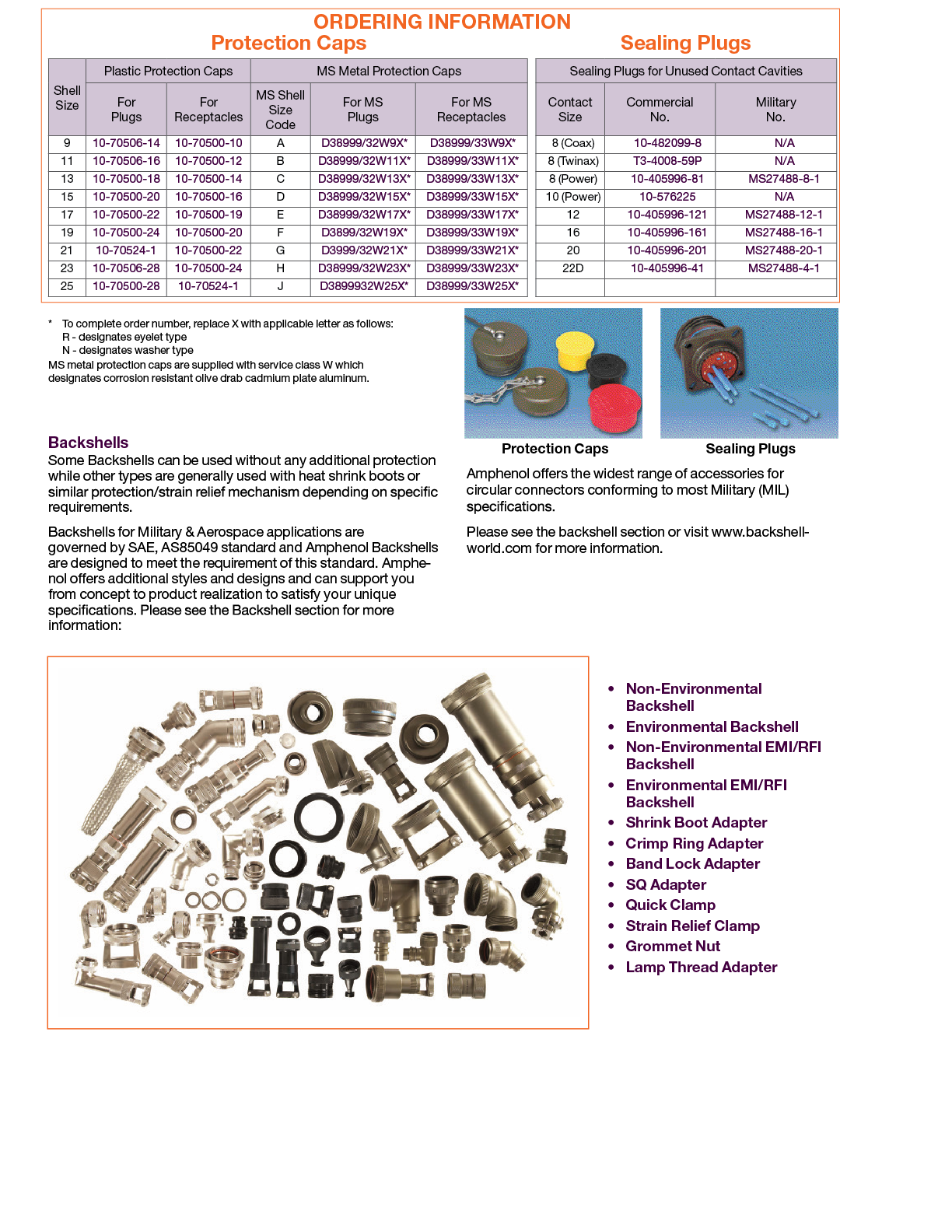

Accessories

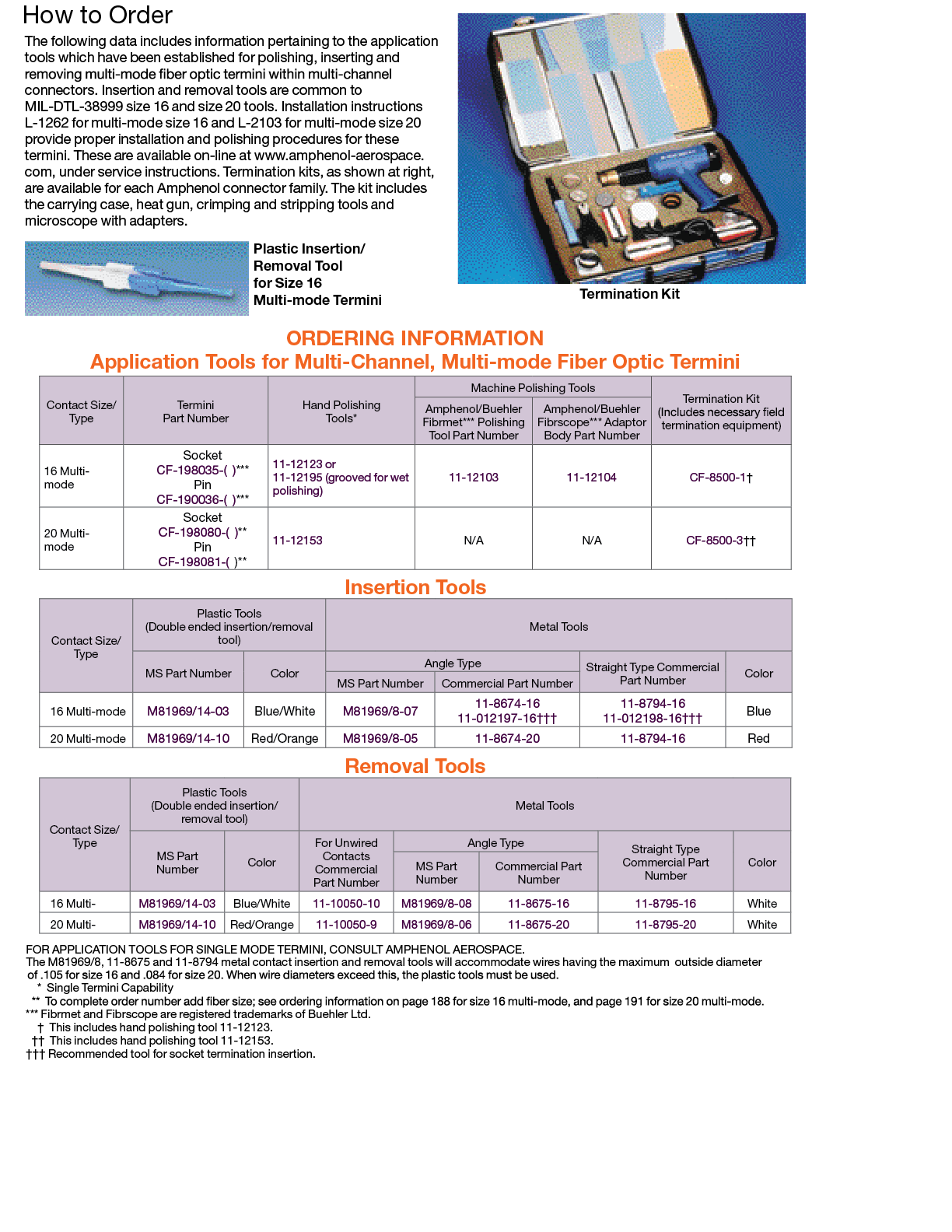

Application Tools for Multi-Mode Termini
