Description:

The Amphenol® FPT Series combines the unique design features of the miniature PT Series with an EMI filter.

Features & Benefits:

  • Intermateable with MIL-DTL-26482 Series connectors; see Matrix 26482, Catalog MIL-DTL-26482, Series 1.
  • Quick positive coupling with visual confirmation of mating
  • Higher reliability and greater durability with permanently encapsulated contacts
  • Aluminum shells with several finish options
  • Quick positive coupling assured by 3 point bayonet coupling system
Specifications

  • Medium size, environmentally resistant connector
  • Recommended operating voltage to 1,000 VAC (RMS) at sea level
  • Quick positive coupling assured by 3 point bayonet coupling system
  • Operating Temperature Range: –65°C (–85°F) to 200°C (392°F)
  • Environmental Seal: Wired, mated connectors with the specified accessory attached will meet the altitude immersion test specified in MIL-DTL-26482.
  • Durability: Minimum of 500 mating cycles.
  • Shock and Vibration Requirements: When tested as follows, the connector shall sustain no physical damage, or electrical discontinuity exceeding one microsecond.
  • Shock: Pulse of an approximate half sine wave of 300g magnitude with a duration of 3 milliseconds applied in three axes.
  • Vibration: Sixteen hours of random vibration having a range of 50 to 2,000 Hz with a 41.7G peak level.



Electrical

  • Grounded Line Resistance (Typ.): 15 mΩ
  • Insulation Resistance (Typ.): >5 GΩ
  • Dielectric Withstand (Typ.): <5 mA
  • DWV: up to 1500 VDC
  • Working Voltage: up to 1500 VDC
  • Capacitance Range: 20 pF to 1 mF
  • Capacitance Tolerance: +/- 20%
  • Filtering Topologies Available: Pi, C, LC, CL, L, cascaded Pi, Unbalanced Pi
Standard Filter Connectors - How to Order Guide

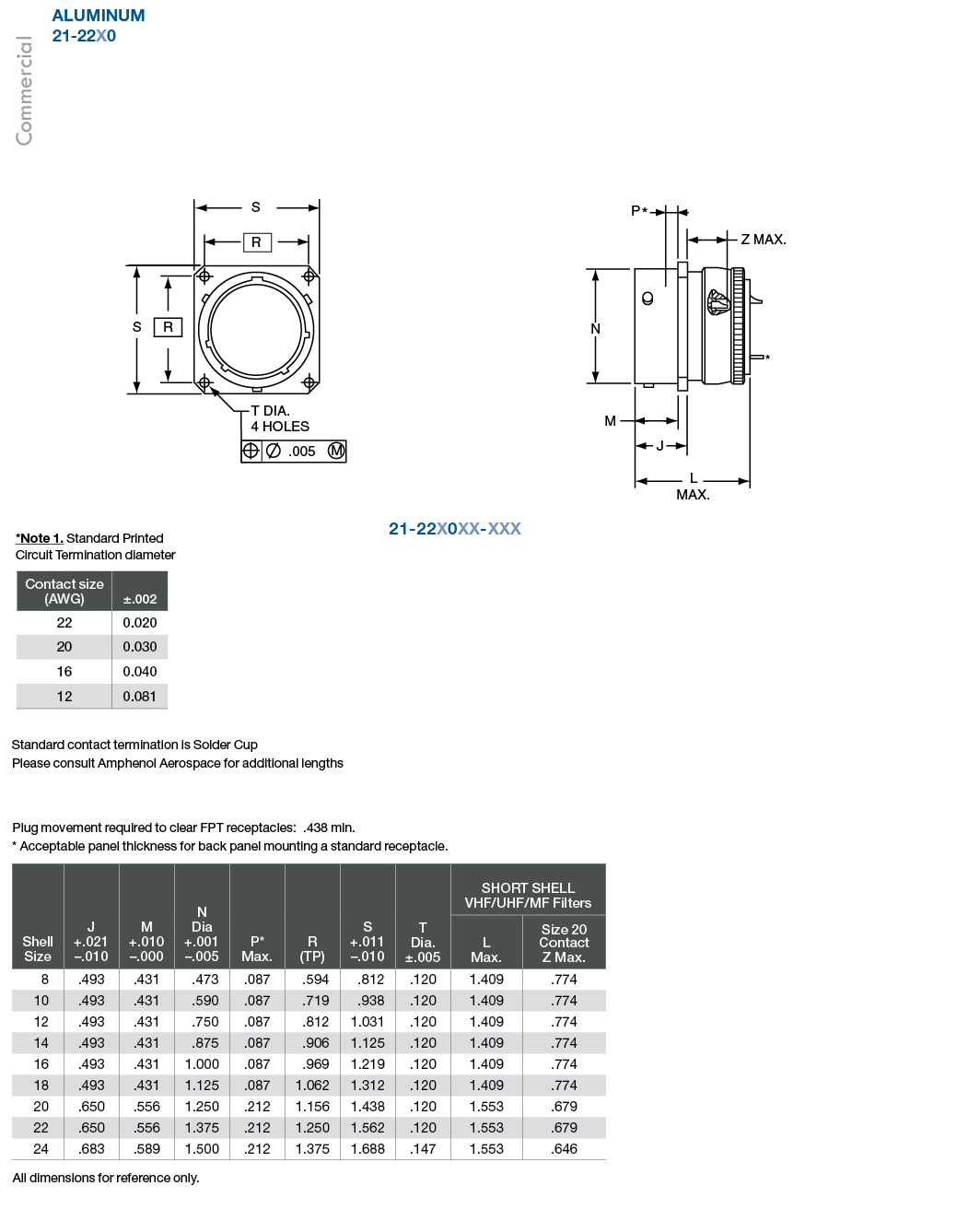

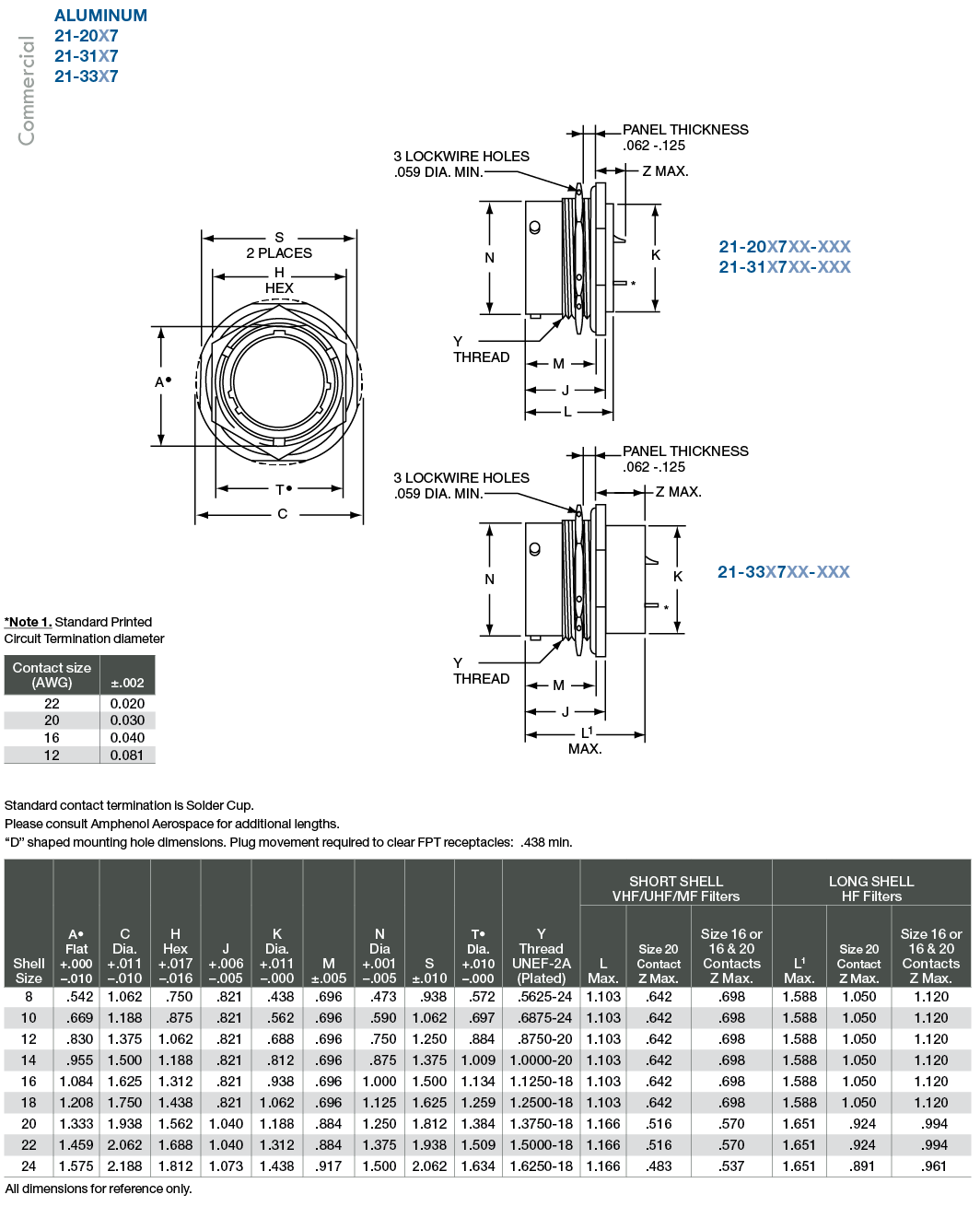

FPT Dimensions

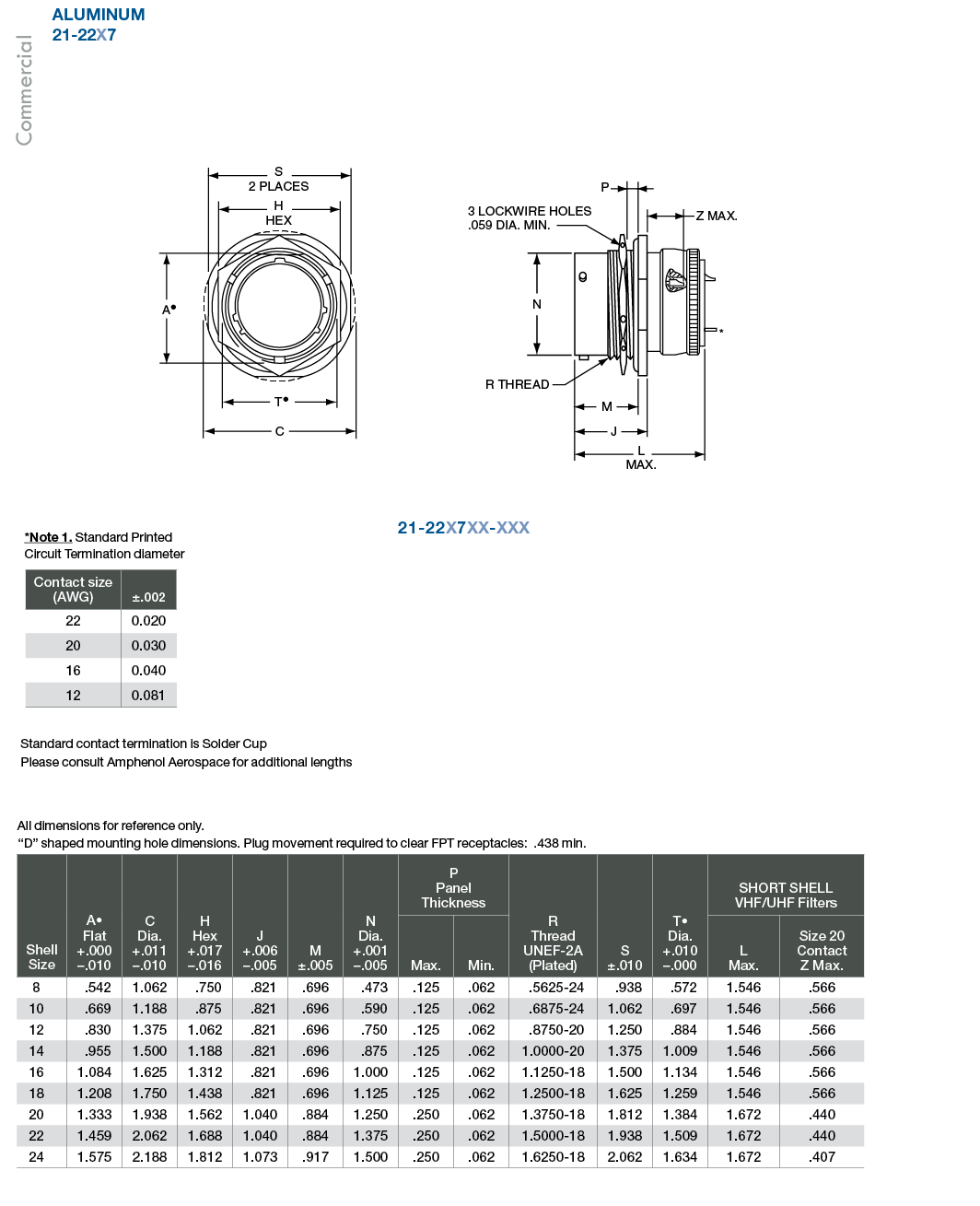

FPTE Dimensions


Insert Arrangements

Filter Catalog
EMI/EMP Protection Connectors offer the versatility of standard connectors with EMI/EMP protection for sensitive circuits.
Filter Connector How to Order
How to order standard filter connectors.
Filter Check Sheet
Use this sheet to help determine which filter connector is right for you.
