Matrix MIL-DTL-83723 Circular Connectors

Product MIL-DTL-83723 (Matrix) Product MIL-DTL-83723 (Matrix)

Contact:

Brandon Brown
Product Manager
+1 (607) 563-5685
bbrown@amphenol-aao.com

Description:

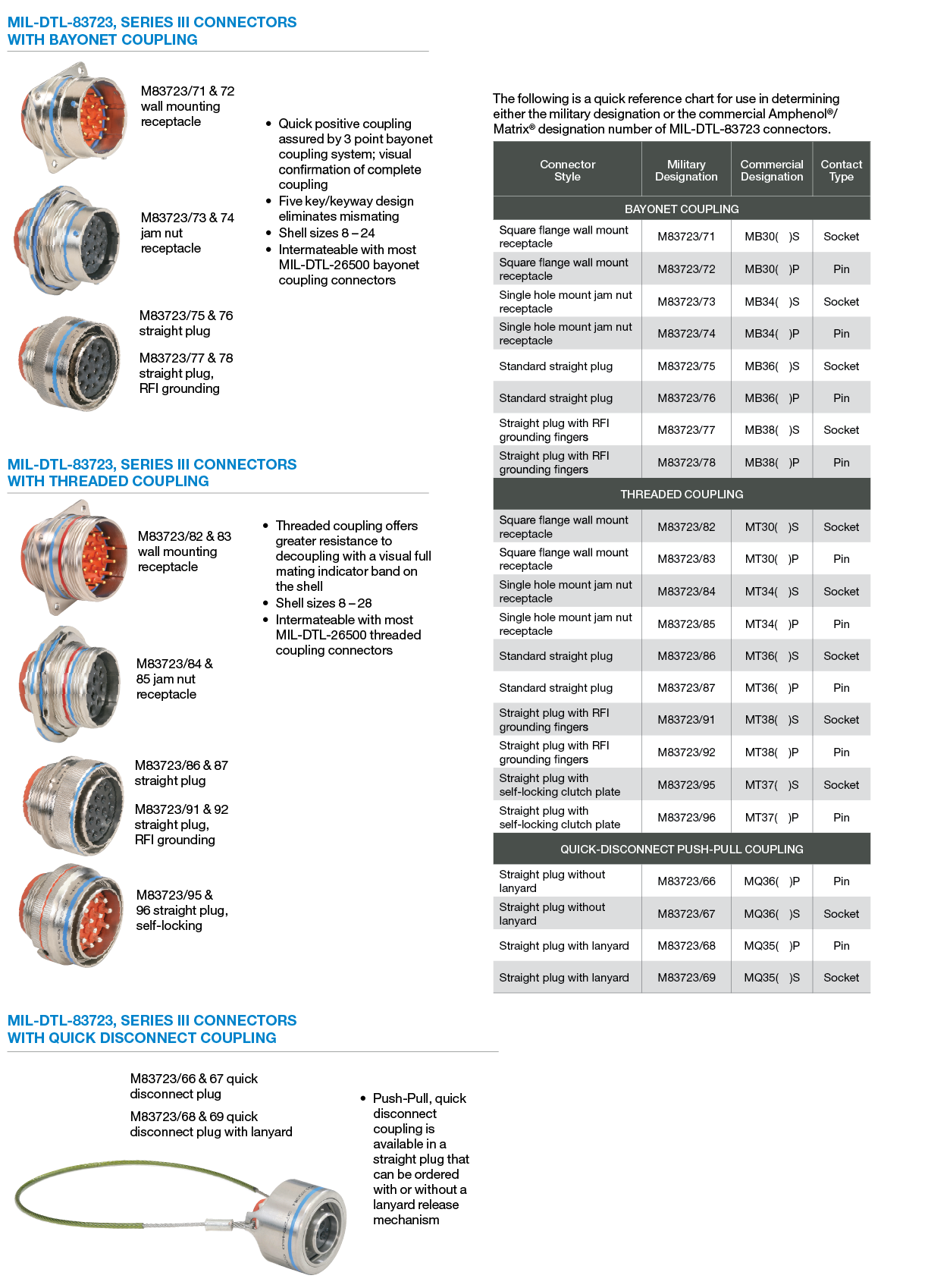

Matrix MIL-DTL-83723 series provides many choices within the range of a medium sized, environmentally resistant circular connector. With three coupling style choices- bayonet, threaded and quick-disconnect - the versatility of this family makes it increasingly popular for panel mount, box mount and line-to-line applications in aircraft. For general duty environmentally resistant requirements, this family of connectors provides a wide range of interconnection solutions.

Features & Benefits:

  • Recommended operating voltage to 600 VAC(RMS) at sea level
  • Complete environmental sealing includes individual contact seals and a silicone elastomer interfacial seal with raised barriers around each pin, a shell-to-shell seal and an insert-to-shell seal. Sealing over a wide range of wire diameters is assured by a triple-webbed grommet design.
  • Captive coupling nut prevents tampering, while a reduced coupling ring ramp allows easier mating

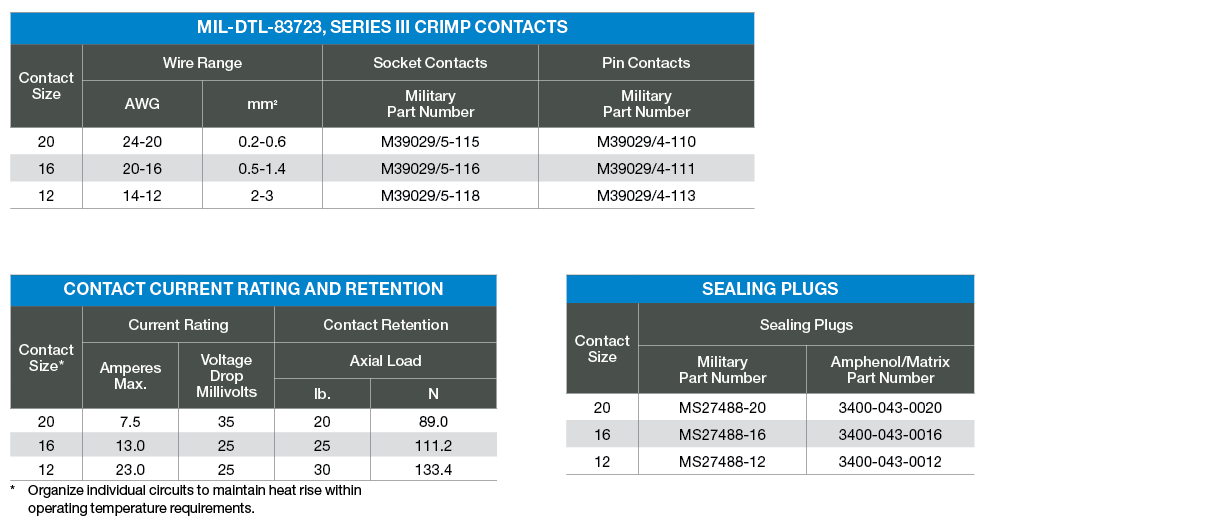

  • Incorporates crimp rear release SAE AS39029 contacts in sizes 12, 16 and 20;
  • Contact arrangements accept 2 to 61 circuits and use standard qualified rear-release type plastic tools
  • Insertion and removal of contacts from the rear of the connector assures no damage to the front that might affect the sealing characteristics
  • Grommets are constructed of tear-resistant elastomer and experience no degradation when exposed to a broad range of fluids
  • Closed entry socket side of the insert is designed with a lead-in chamfer and a hard face that will accept a pin contact bent within pre-established limits
  • MS and Commercial versions available
  • Alternate positioning available
  • Aluminum shells with black anodized, cadmium or electroless nickel finish options; passivated stainless steel shells are also available
Connector Options - Reference Guide

Performance Specifications

How to Order Guides


Dimensions

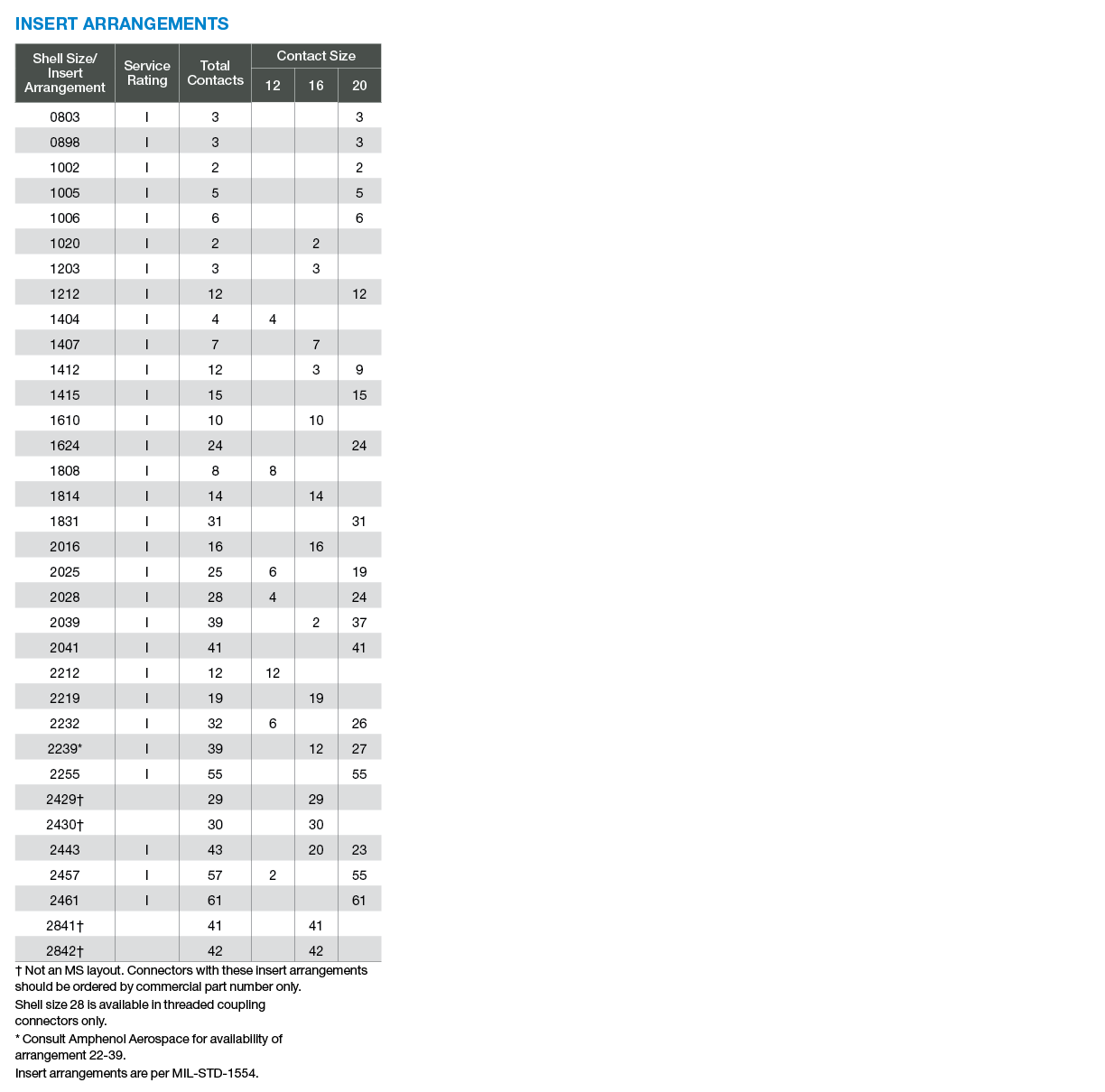

Insert Chart

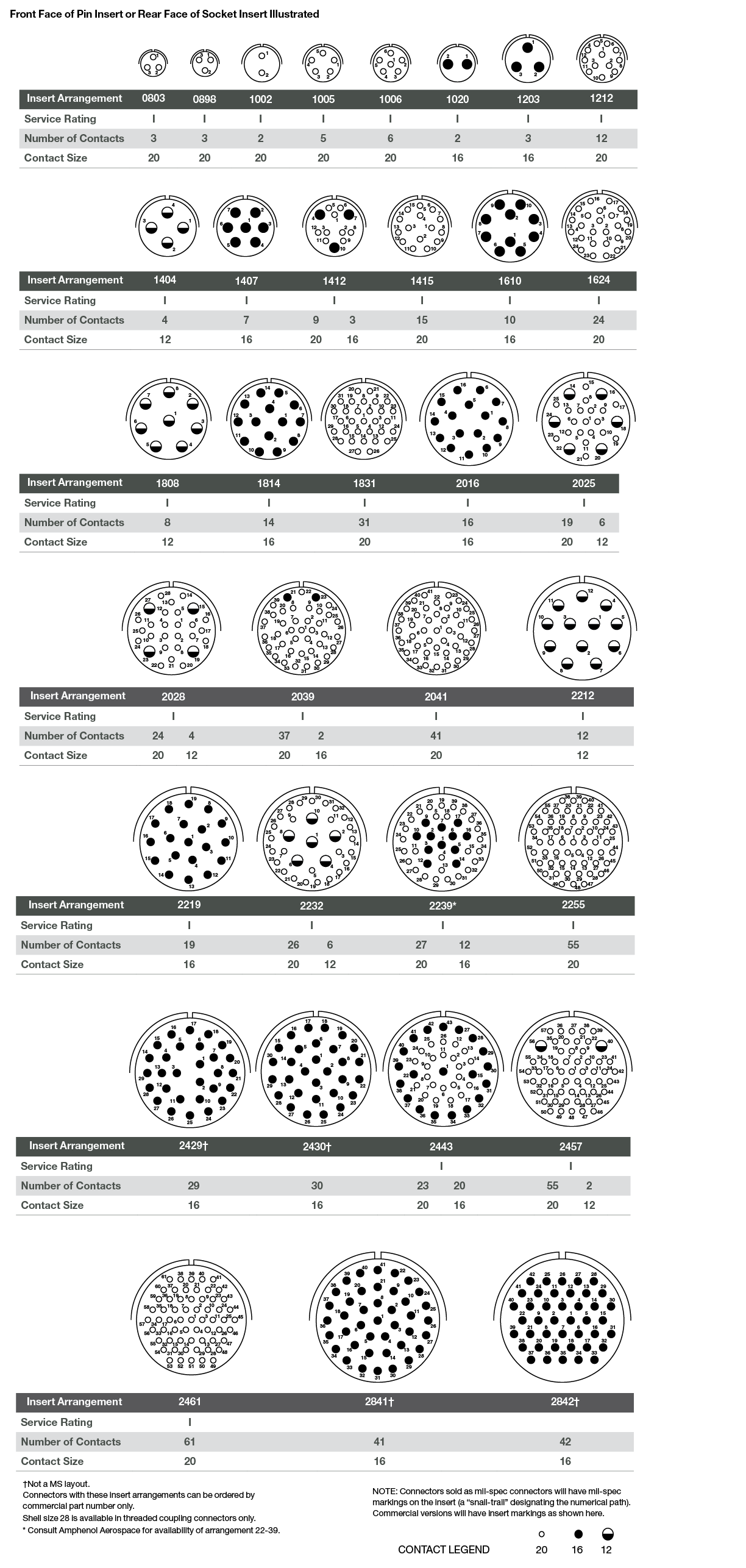

Insert Arrangements

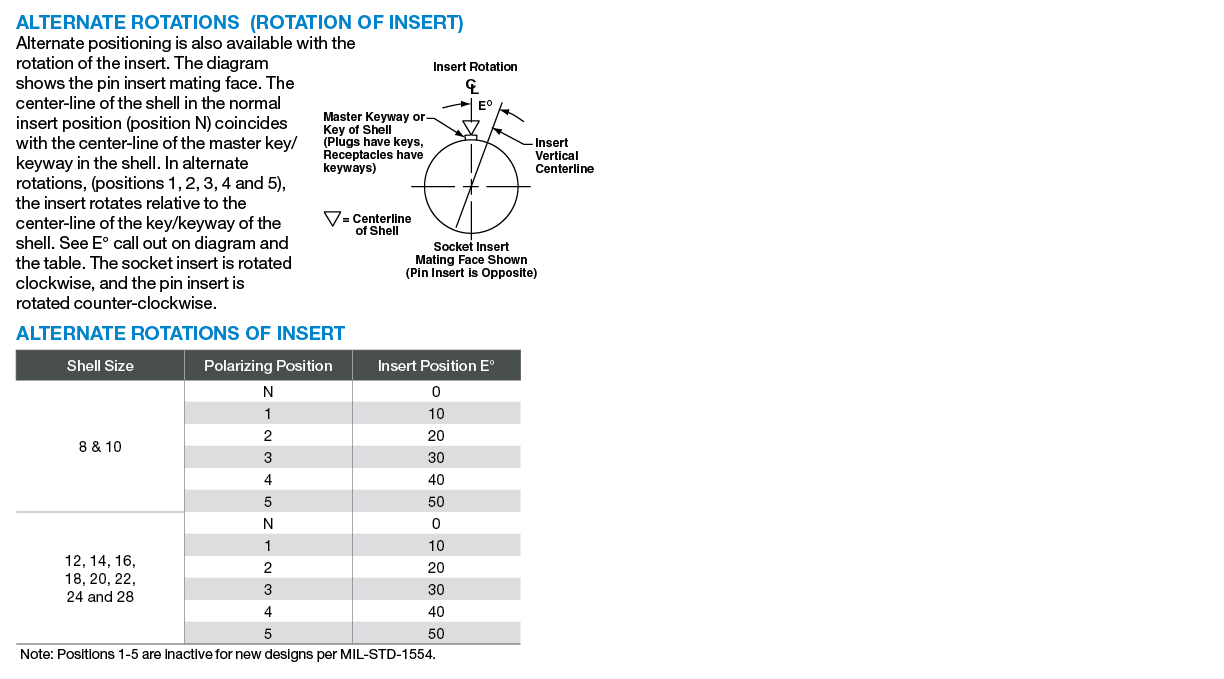

Insert Alternate Rotations

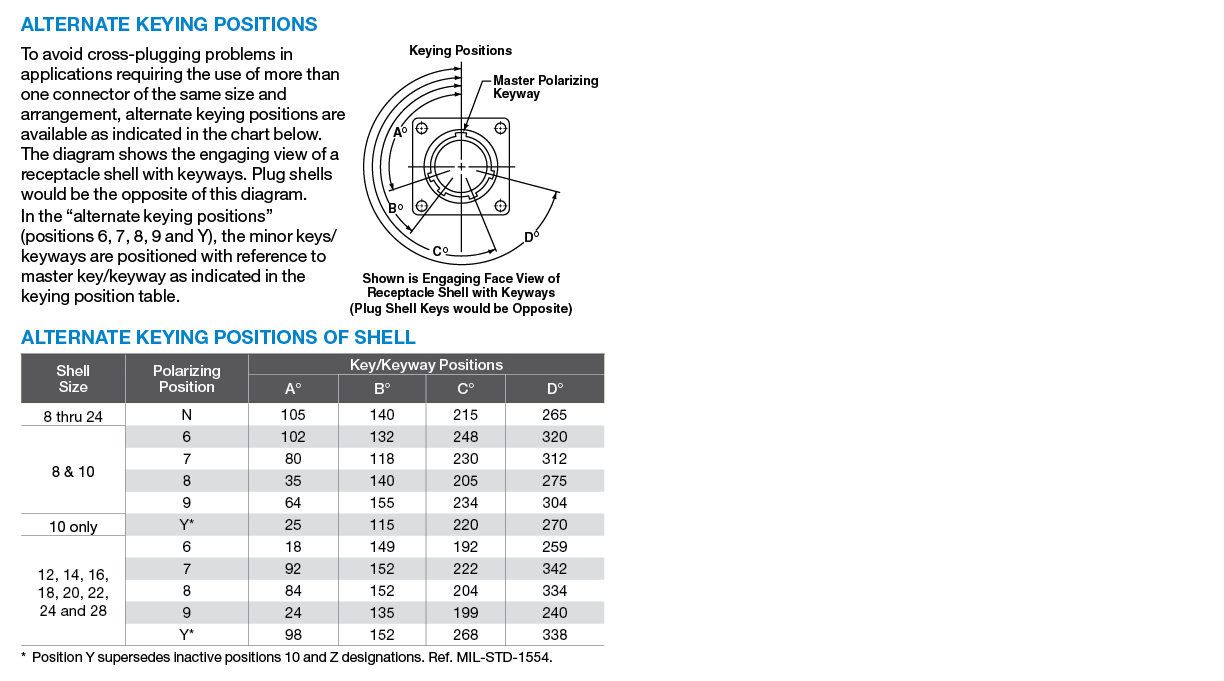

Alternate Keying Positions

83723 Contact Information

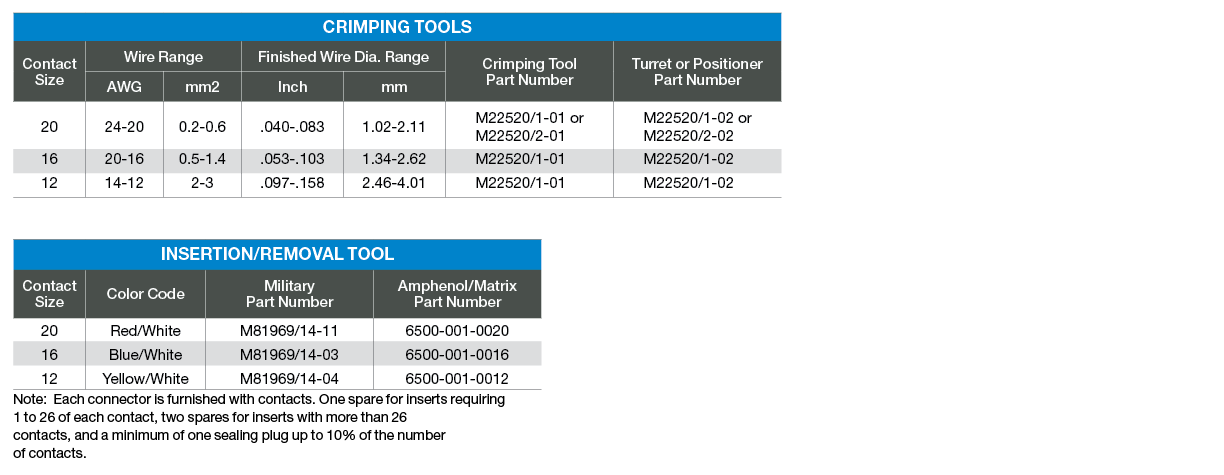

83723 Assembly Tools

MIL-DTL-83723, Series III, Matrix Catalog Section
With three coupling style choices- bayonet, threaded and quick-disconnect - the versatility of this family makes it increasingly popular for panel mount, box mount and line-to-line applications in aircraft.
MIL-DTL-83723 (Pyle)
Includes styles from Pyle National, with proven technology for severe environments in commercial and military aerospace markets.
MIL-DTL-26482 Series II Connectors
Bayonet coupling connector with crimp rear insertable, rear releasable contacts.
MIL-DTL-5015 (Matrix)
This crimp, rear-release high-power series provides an improved alternative to the older MIL-C-5015 solder type.
Amphenol Advantage IconComplementary External Product AS85049 Backshells
AS85049 Backshells
Backshells for Military & Aerospace applications are governed by SAE, AS85049 standard and Amphenol Backshells are designed to meet the applicable requirement of these standards.
