Description:

The matched impedance coax contact is available in size 12. It incorporates a captivated inner contact which “snaps into” the outer contact preventing displacement or pull-back of the inner contact in situations where the cable may be bent.

Features & Benefits:

  • For use in 90-degree angle or bent cable applications
  • Provides 50 Ohm and 750 Ohm matched impedance resulting in low VSWR and low insertion loss
  • Frequency range for a mated pair extends to 3 GHz and beyond, higher than other coaxial contacts previously offered
  • Ideally suited for D38999 high performance and MIL-STD-1760 high band coaxial contact requirements.

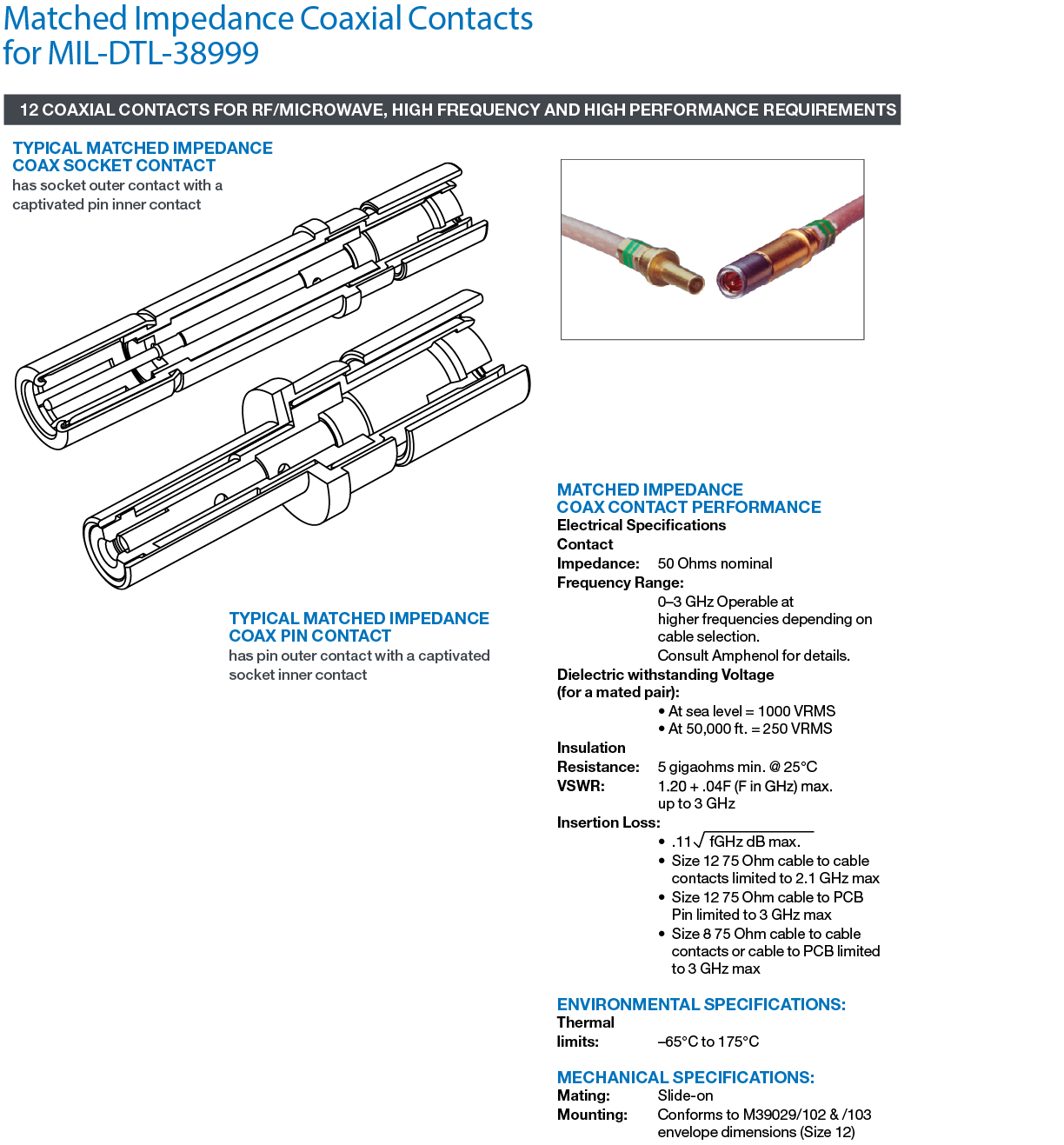

Matched Impedance Coaxial Contact Information

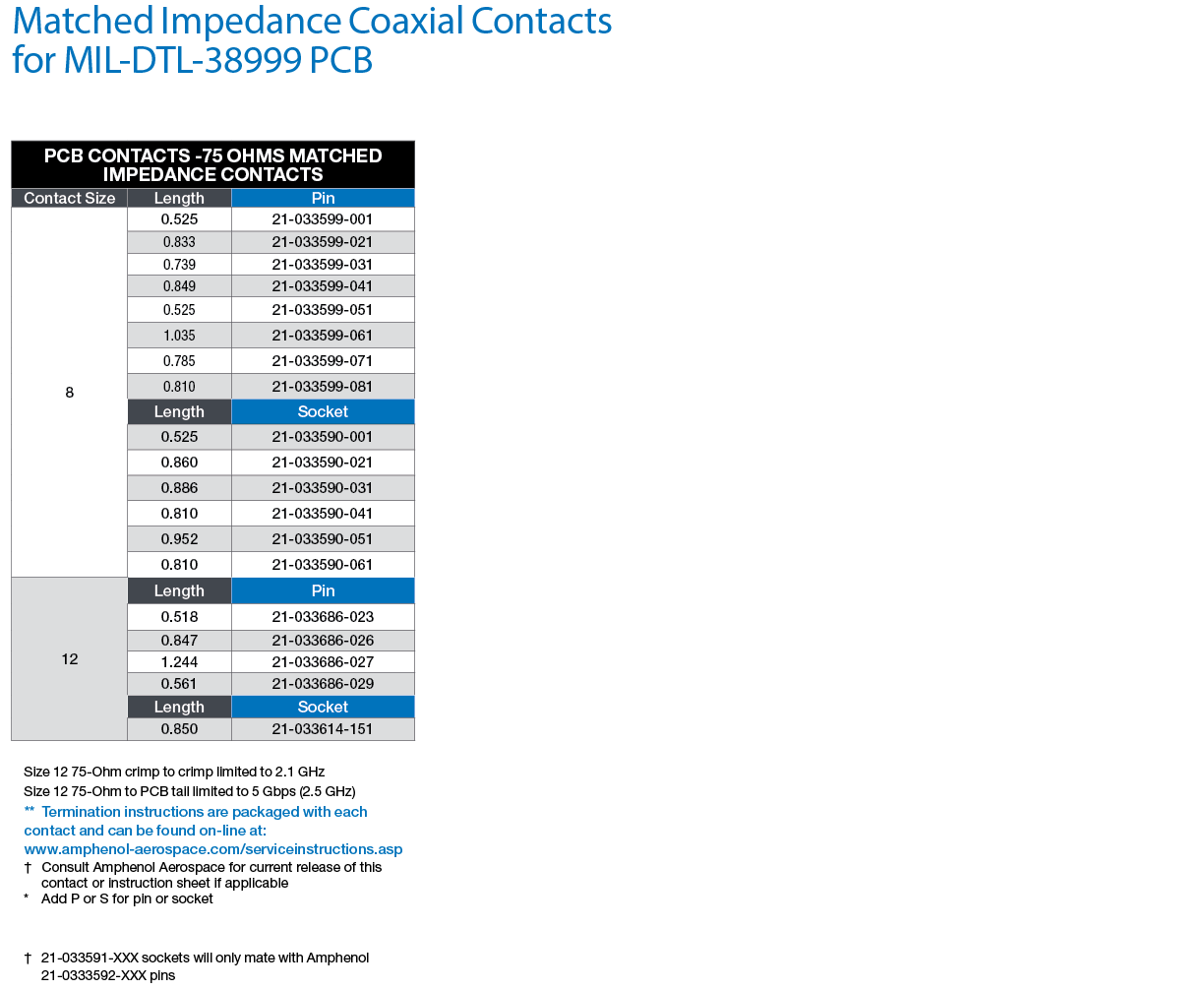

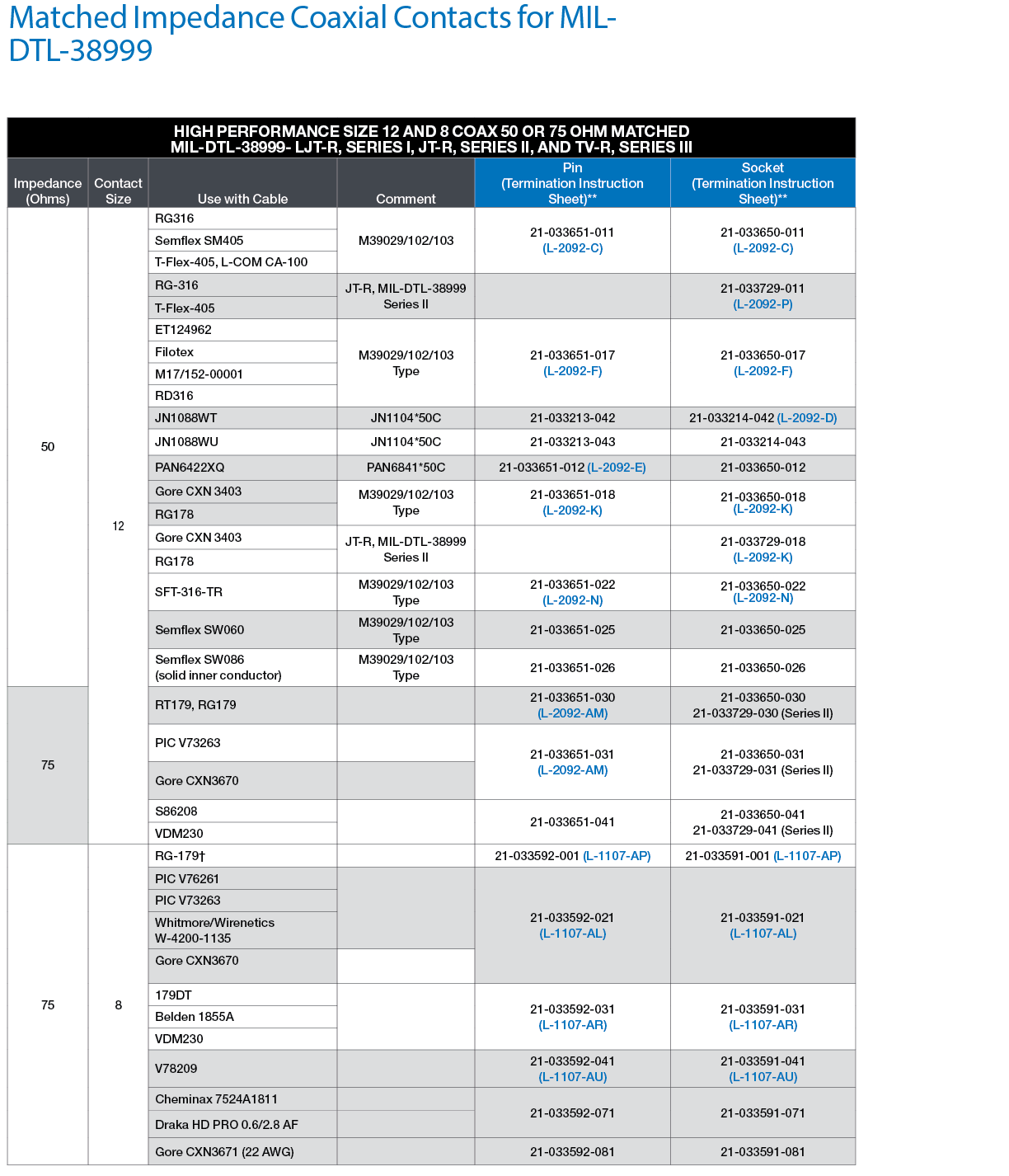

Part Number Guide

High Speed Contact Product Guide
The broadest and most reliable contact solutions when you need superior electrical performance, plus shielding to eliminate interference from outside electrical sources.
