T-Line Push-Pull Connectors

Product T-Line Push-Pull Connectors Product T-Line Push-Pull Connectors

Contact:

Amphenol Aerospace
Tech Support
1-800-678-0141
aaotech@amphenol-aao.com

Description:

A push-pull mating connector, the T-Line incorporates a retention spring in the receptacle and a full-mating indicator band on the plug. Inserts are qualified to MIL-DTL-38999 Series III and accept standard M39029-56/58 series contacts in either size 22D or size 20 contact arrangements. Trim, rugged shell will accommodate standard M85049/38 series backshells and are easily adapted for lanyard release applications. The T-Line Series of connectors are designed to reduce the size and weight of your electrical systems without sacrificing performance

Features & Benefits:

  • Rugged construction and environmental design
  • Lanyard release options
  • Push-pull mating
  • Aluminum or stainless steel shells
  • Various plating options
  • Space-saving size

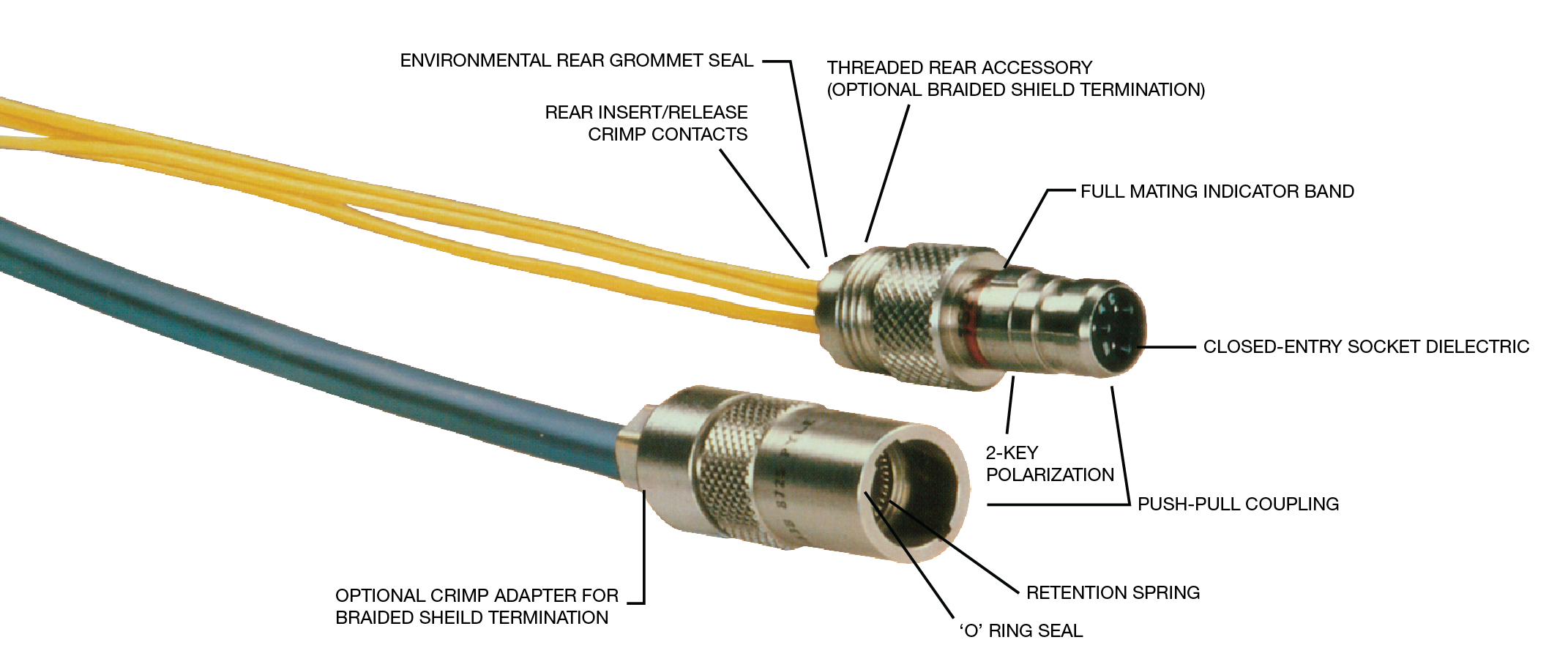

Features

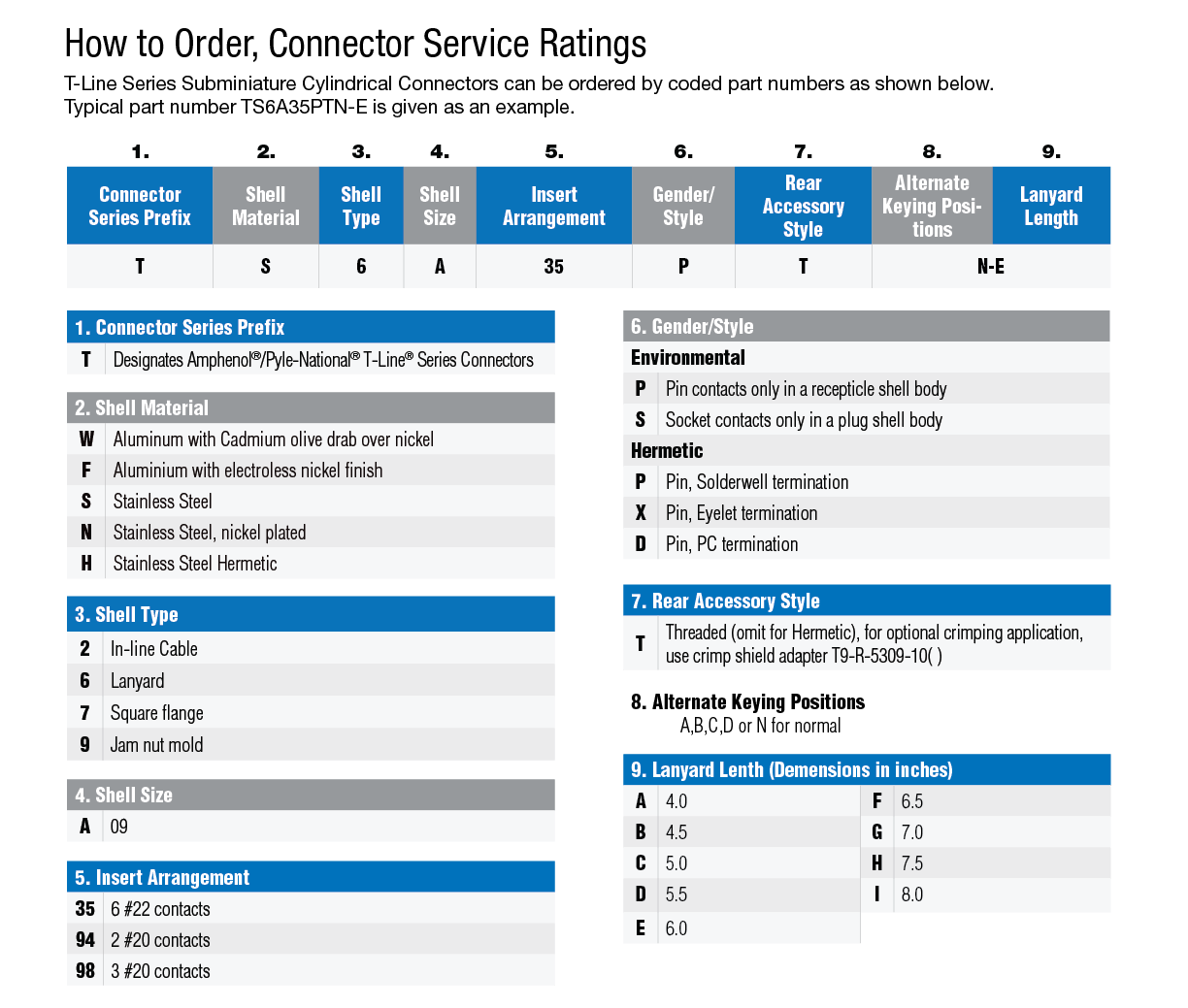

How to Order Guide

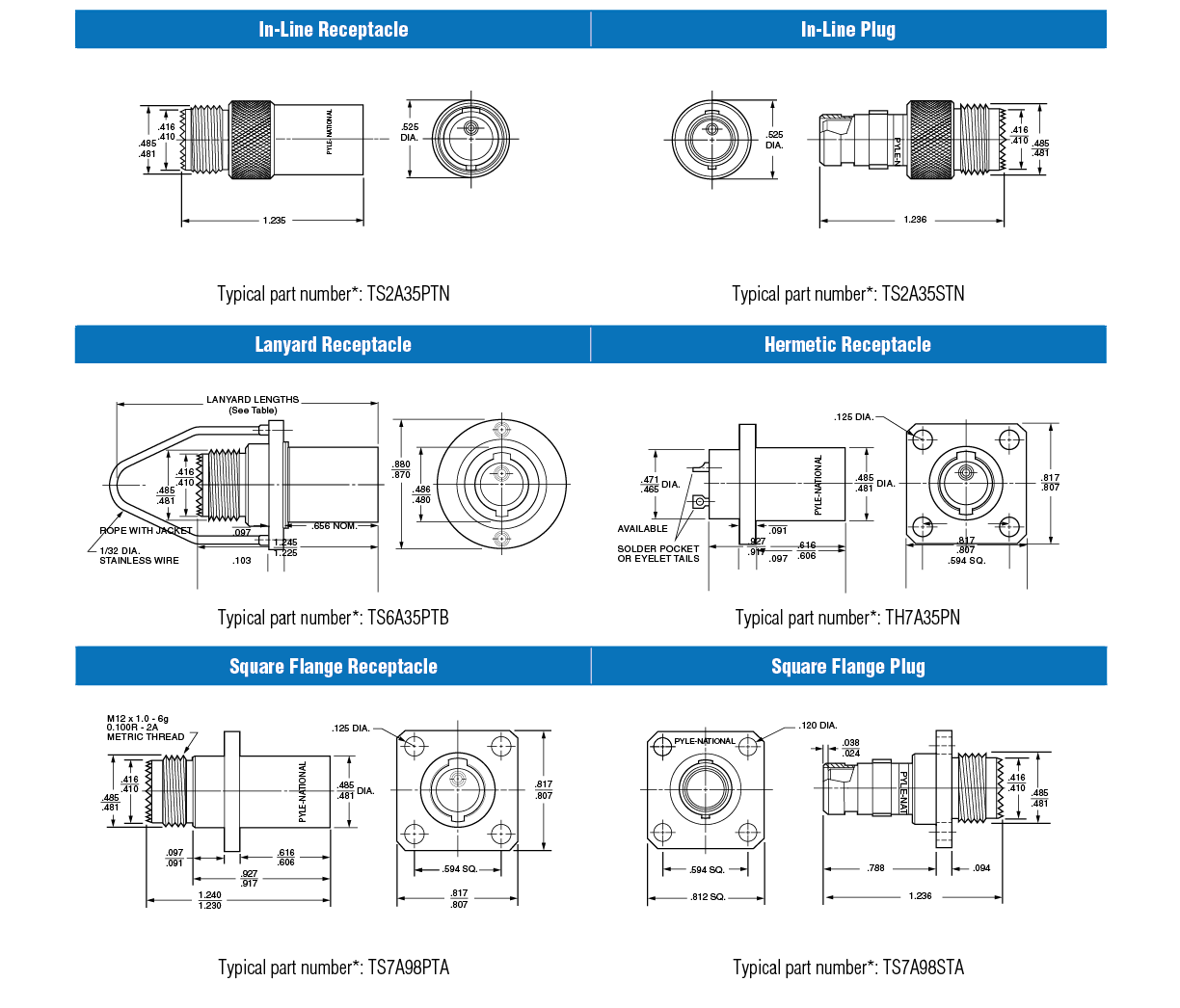

Dimensions

Insert Arrangements and Alternate Keying Positions

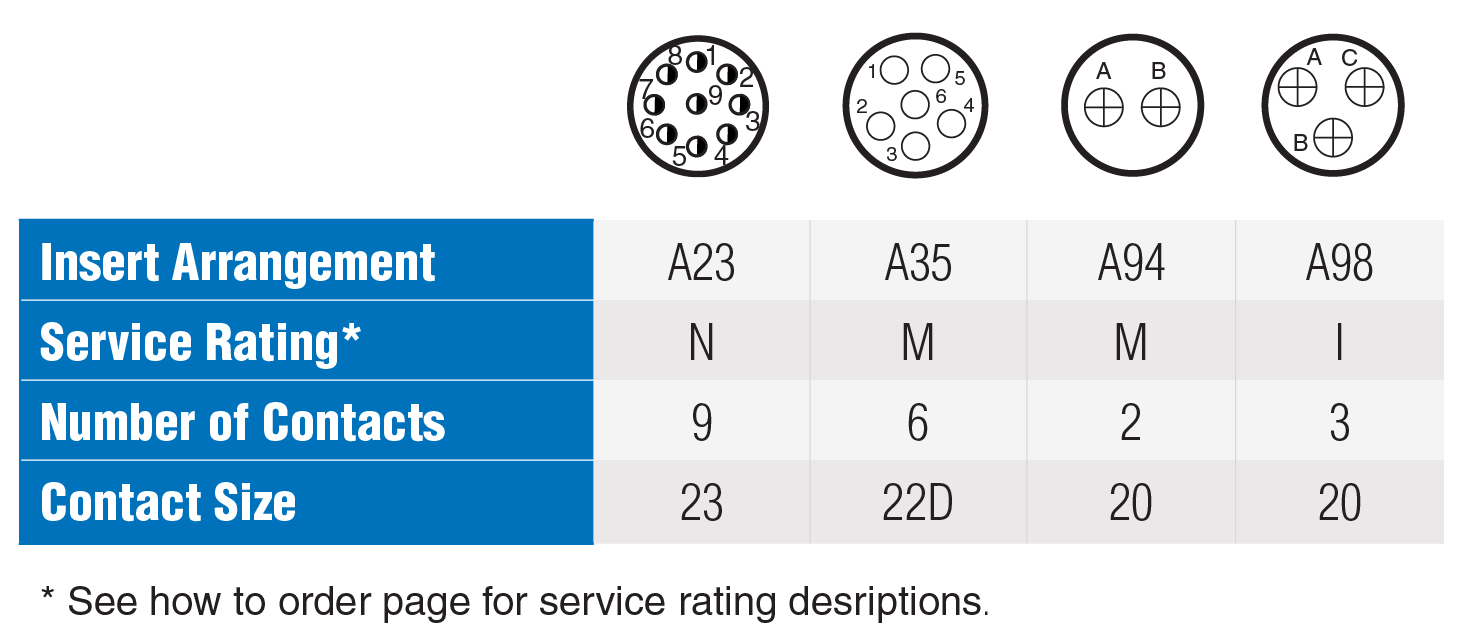

Insert Arrangements:

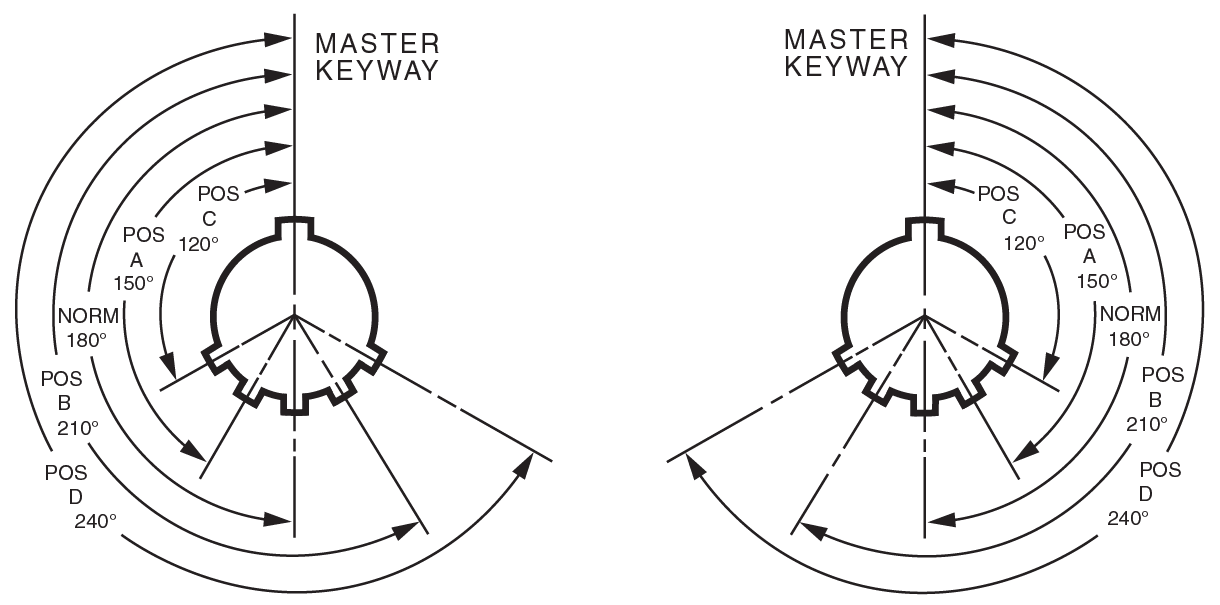

Alternate Keying Positions:

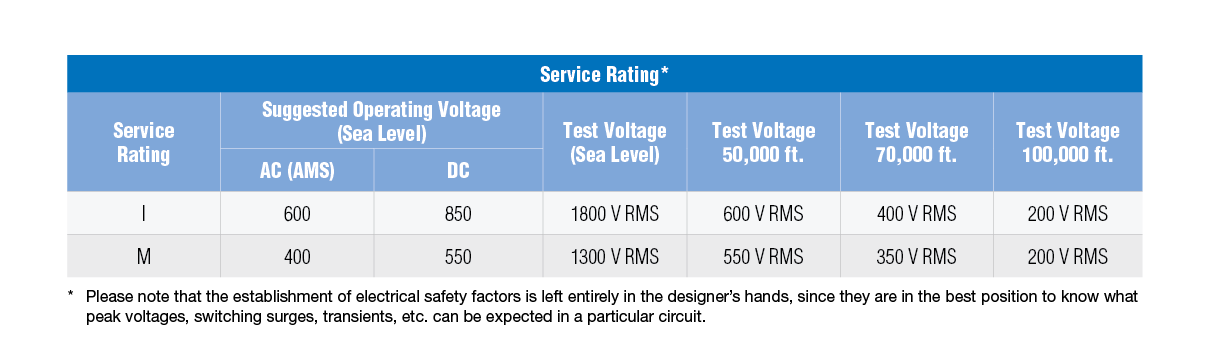

Service Ratings

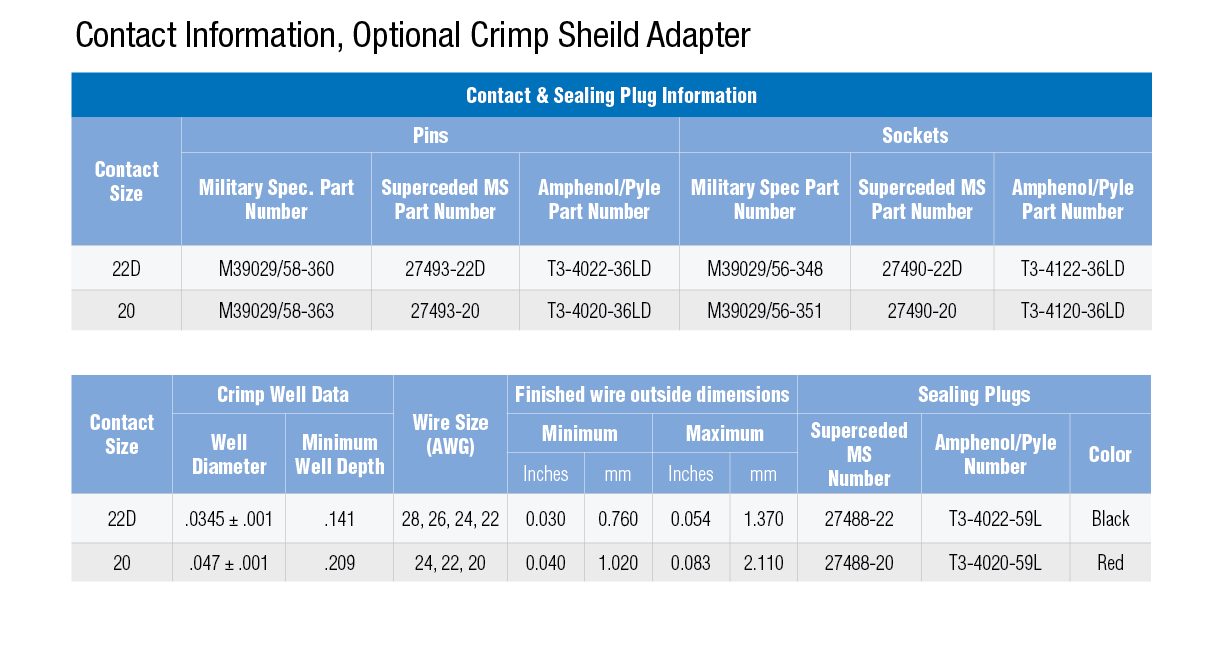

Contact Information

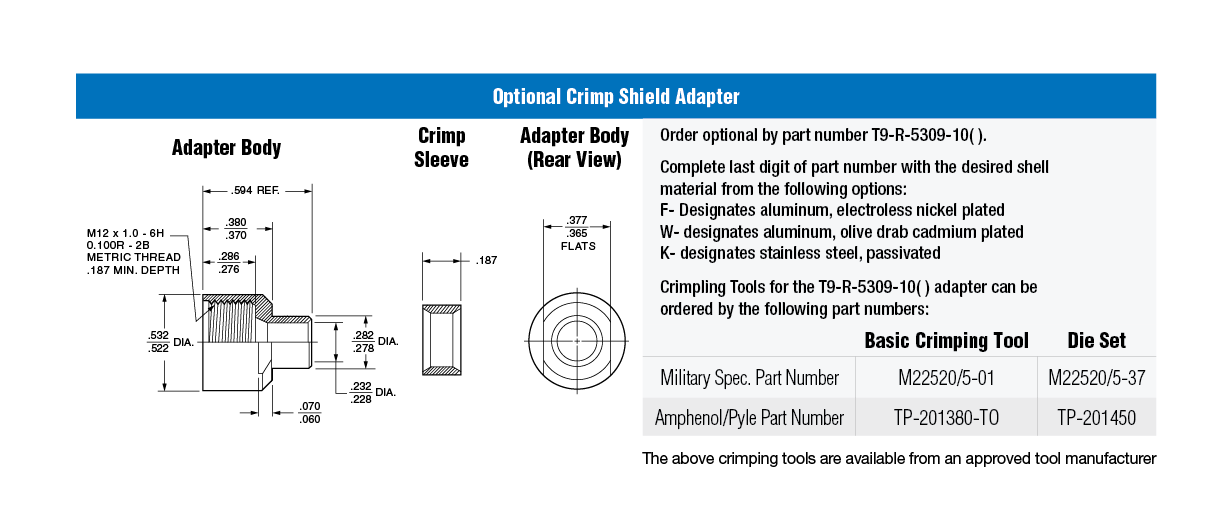

Crimp Shield Adapter

T-Line Data Sheet
A push-pull mating connector that incorporates a retention spring in the receptacle and a full-mating indicator band on the plug.
Amphenol Advantage IconComplementary External Product Backshells and Caps
Backshells and Caps
Backshells provide strain relief, environmental protection, and EMI/RFI shielding at the termination area of virtually any connector.
