Aquacon High Pressure Immersible 38999 Connectors

Product Aquacon Connectors Product Aquacon Connectors

Contact:

Peter Kapogiannatos
Product Manager
+1 (607) 563-5119
pkapogiann@amphenol-aao.com

Description:

The Aquacon Series of connectors has been designed to provide maximum service in oceanic or fluid immersion applications.

A specially designed aluminum bronze coupling nut and type 316 stainless steel shells resist corrosion and provide a pressure withstanding connector. Positive threaded coupling. “O” rings, and a color band visual indicator assures sealing and proper mating. A rear accessory thread provides for the use of EMI hardware or molding adapters.

Aquacon Connectors are available in a straight plug and two receptacle styles (see photos at right), with numerous MIL-DTL-38999 insert patterns.

Features & Benefits:

The AJ Aquacon offers the following features:

  •  1500 PSI Capability
  • “O” Ring Sealing, Thread
  • Threaded Coupling
  • Visual Mating Indication
  • Design Flexibility

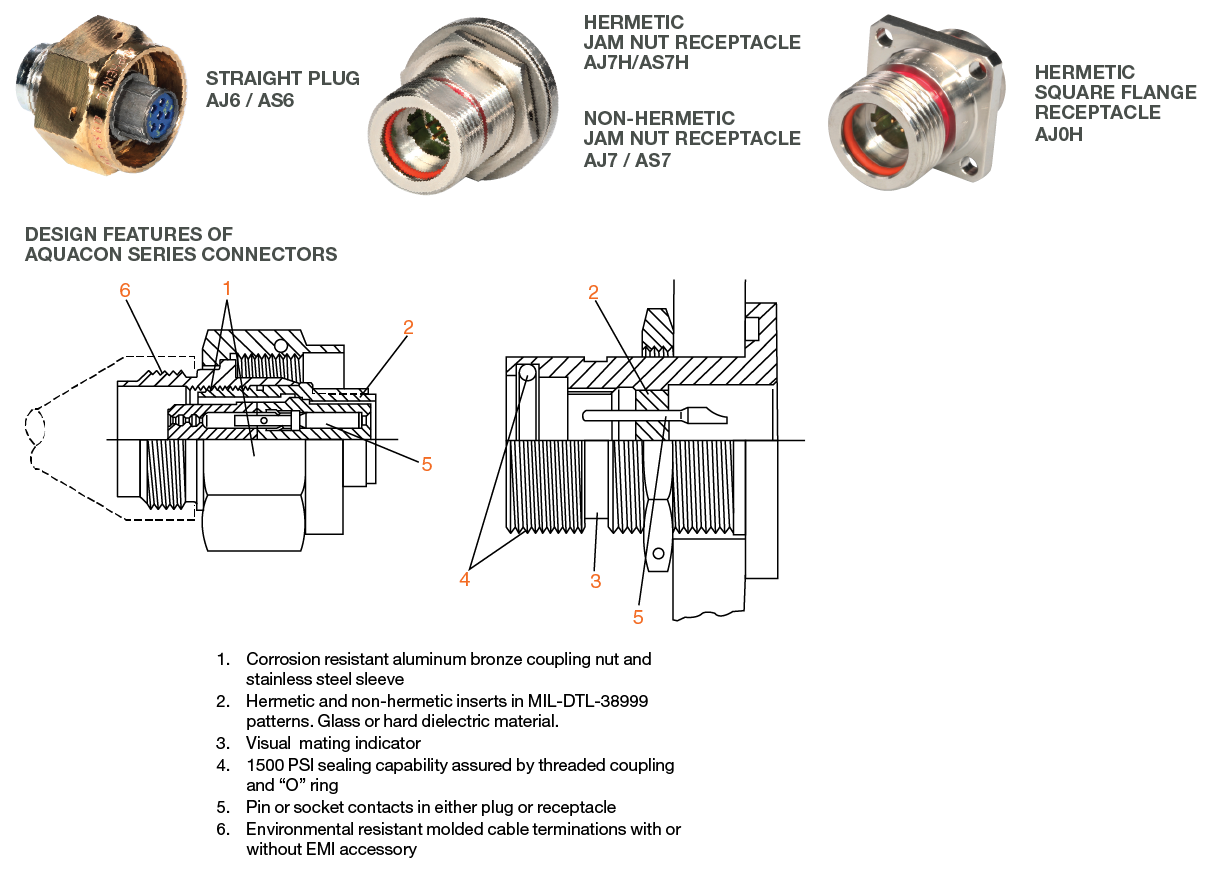

Connector Options

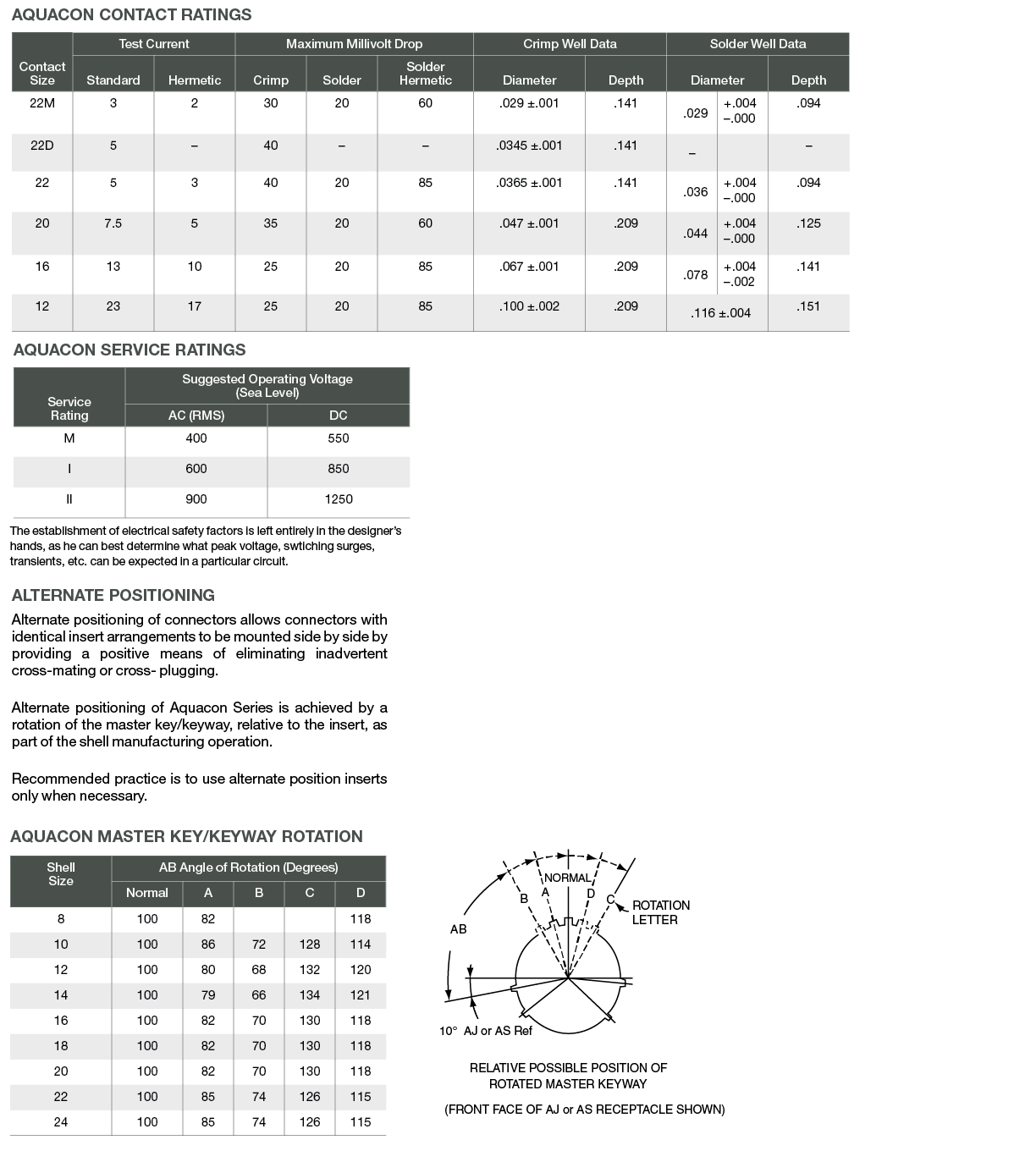

Performance Specifications

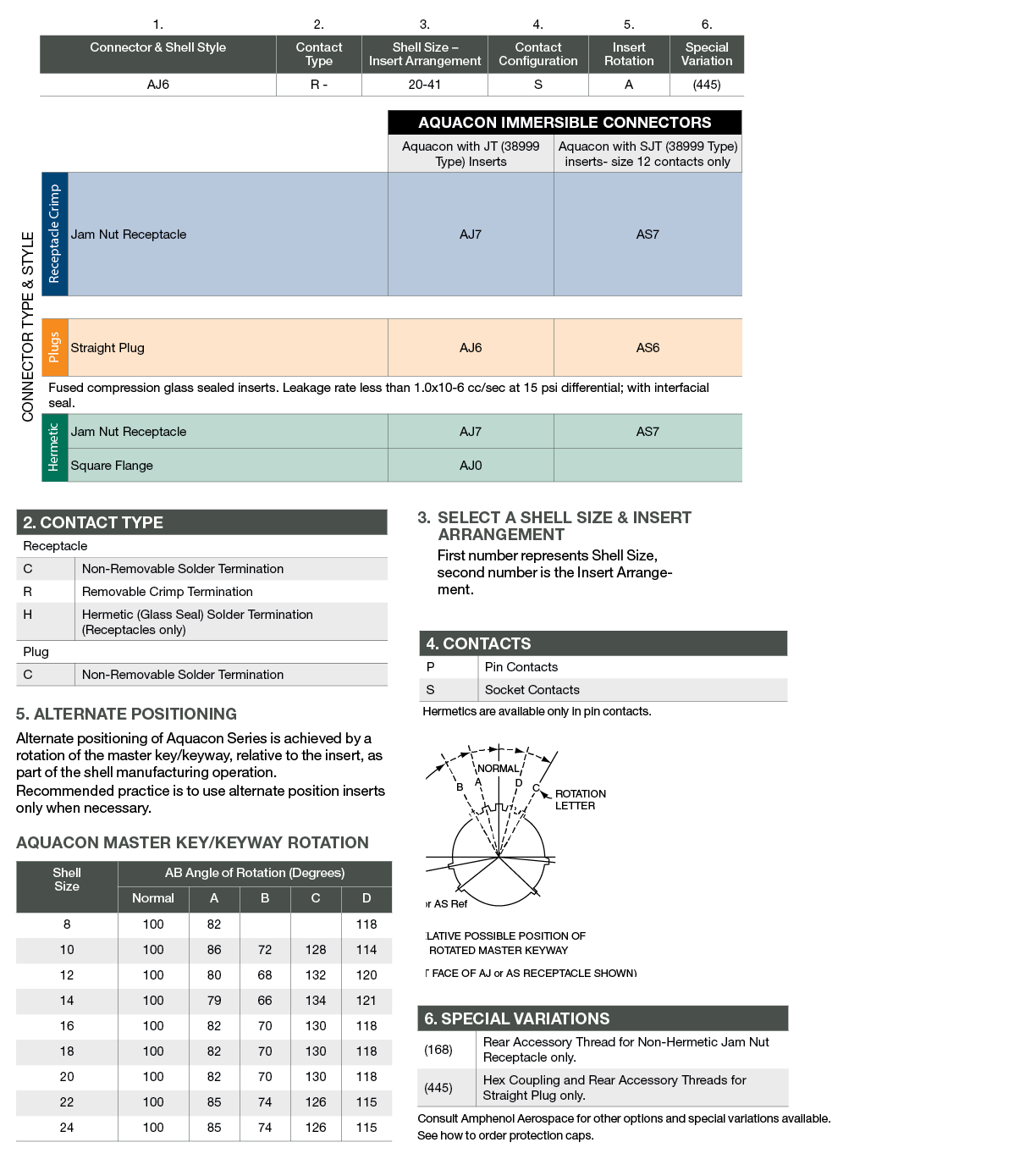

How to Order Guide

Dimensions


Technical Specifications

  • Specially designed aluminum bronze coupling nut and type 316 stainless steel shells
  • 316 stainless steel shell resists corrosion and provides a pressure withstanding connector
  • Positive threaded coupling
  • Rear accessory thread provides for the use of EMI hardware or molding adapters
  • AJ Aqucaons use JT (38999 type) inserts that incorporate size 12 contacts
Insert Chart

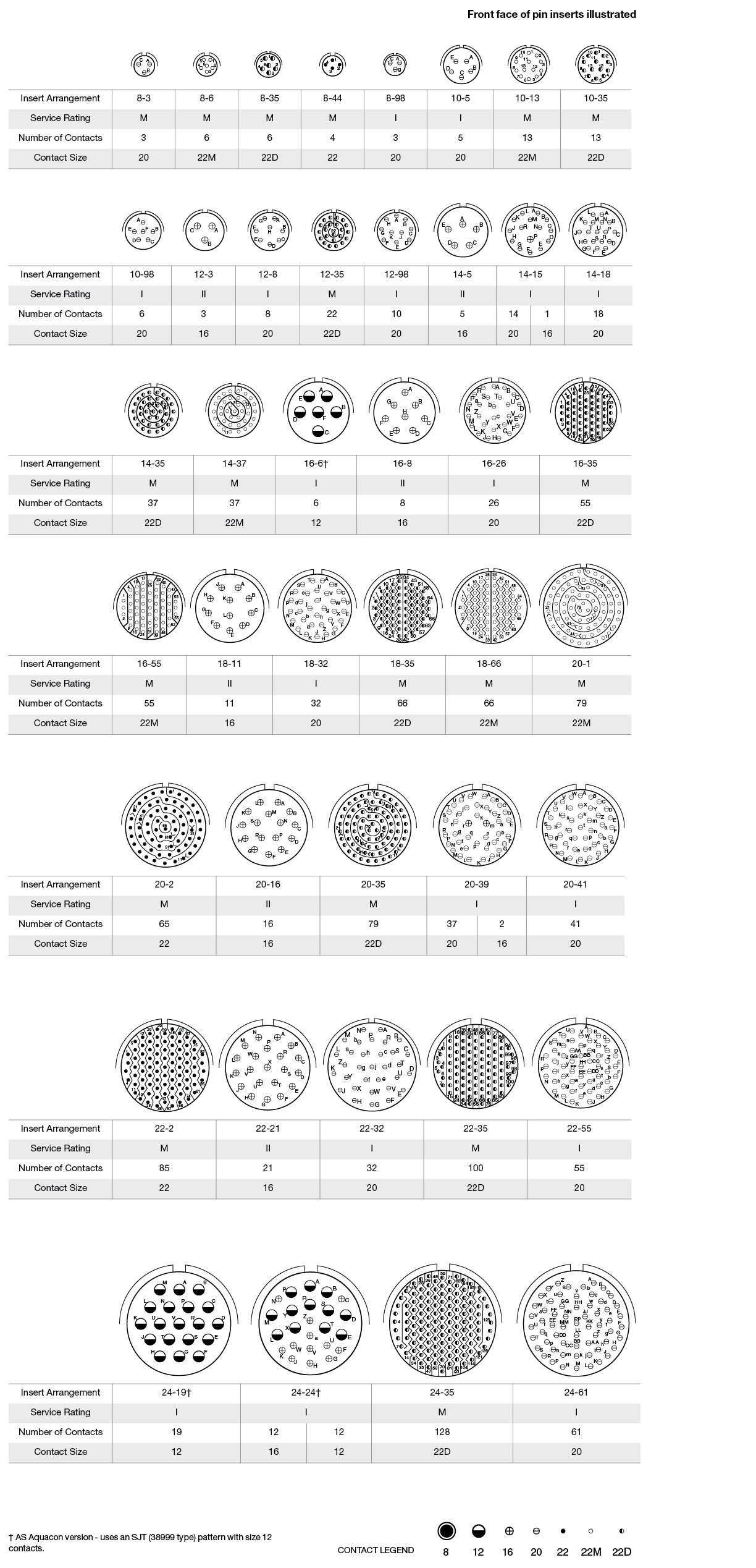

Insert Arrangements

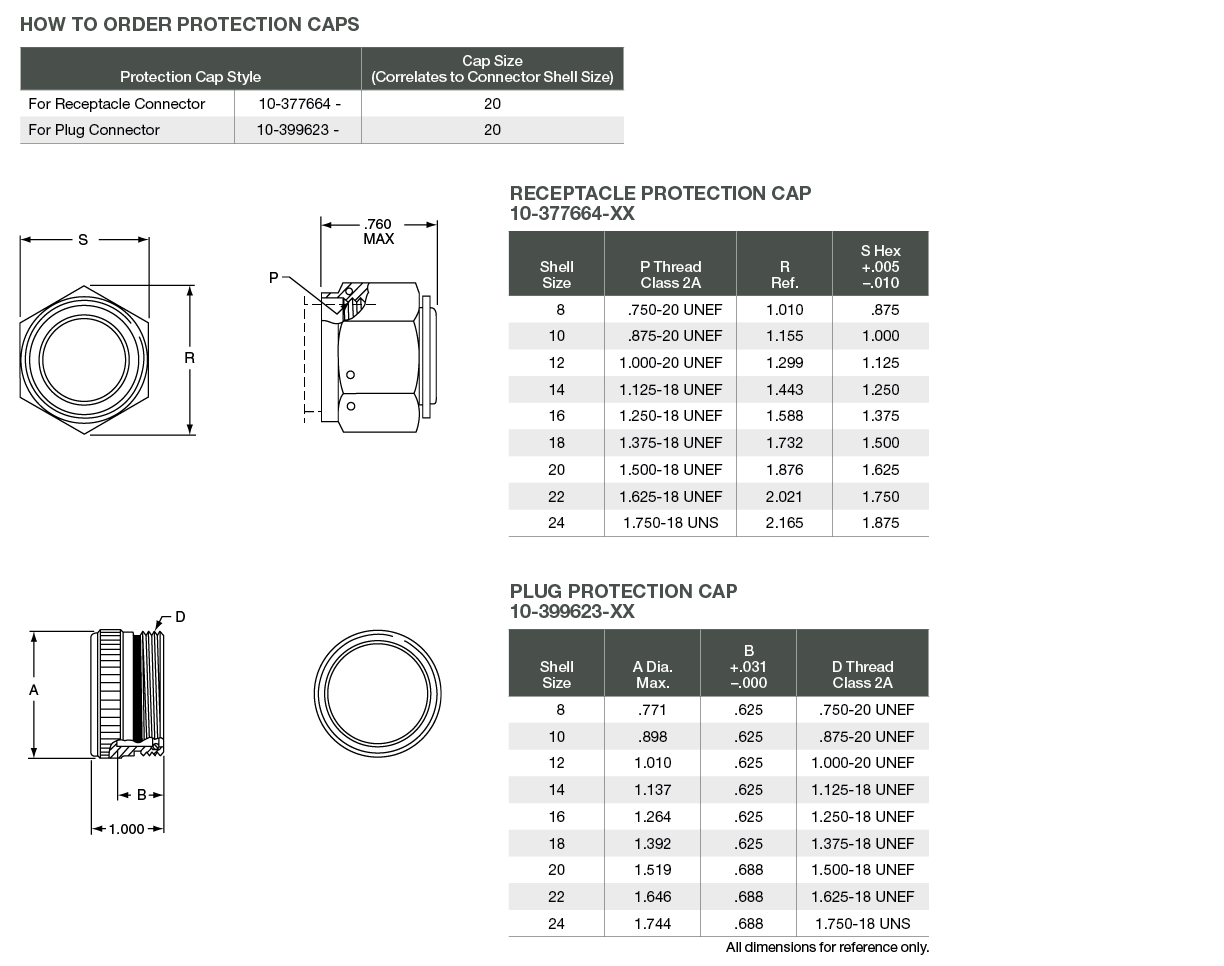

Protection Caps

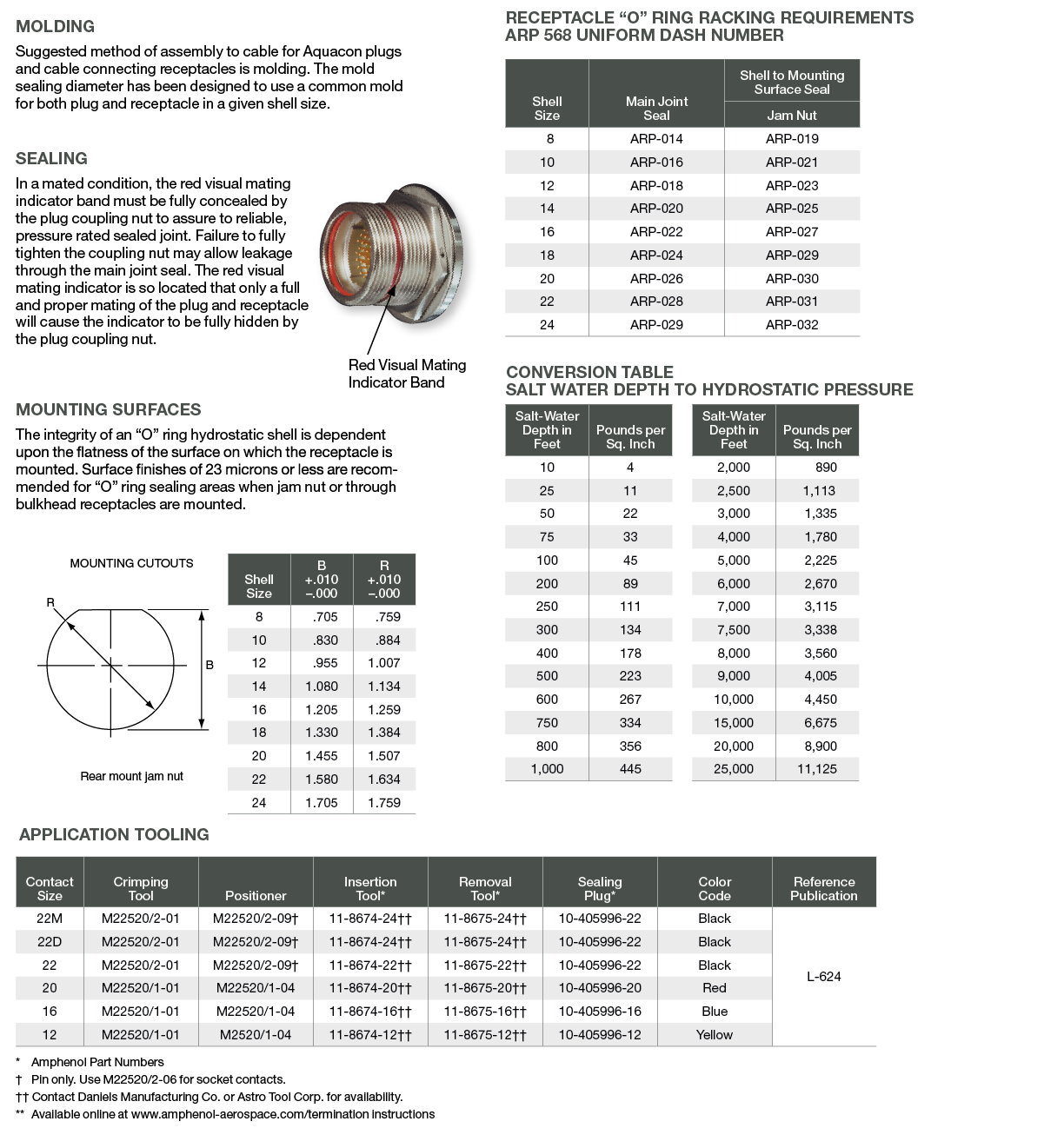

Installation Instructions, Application Tools

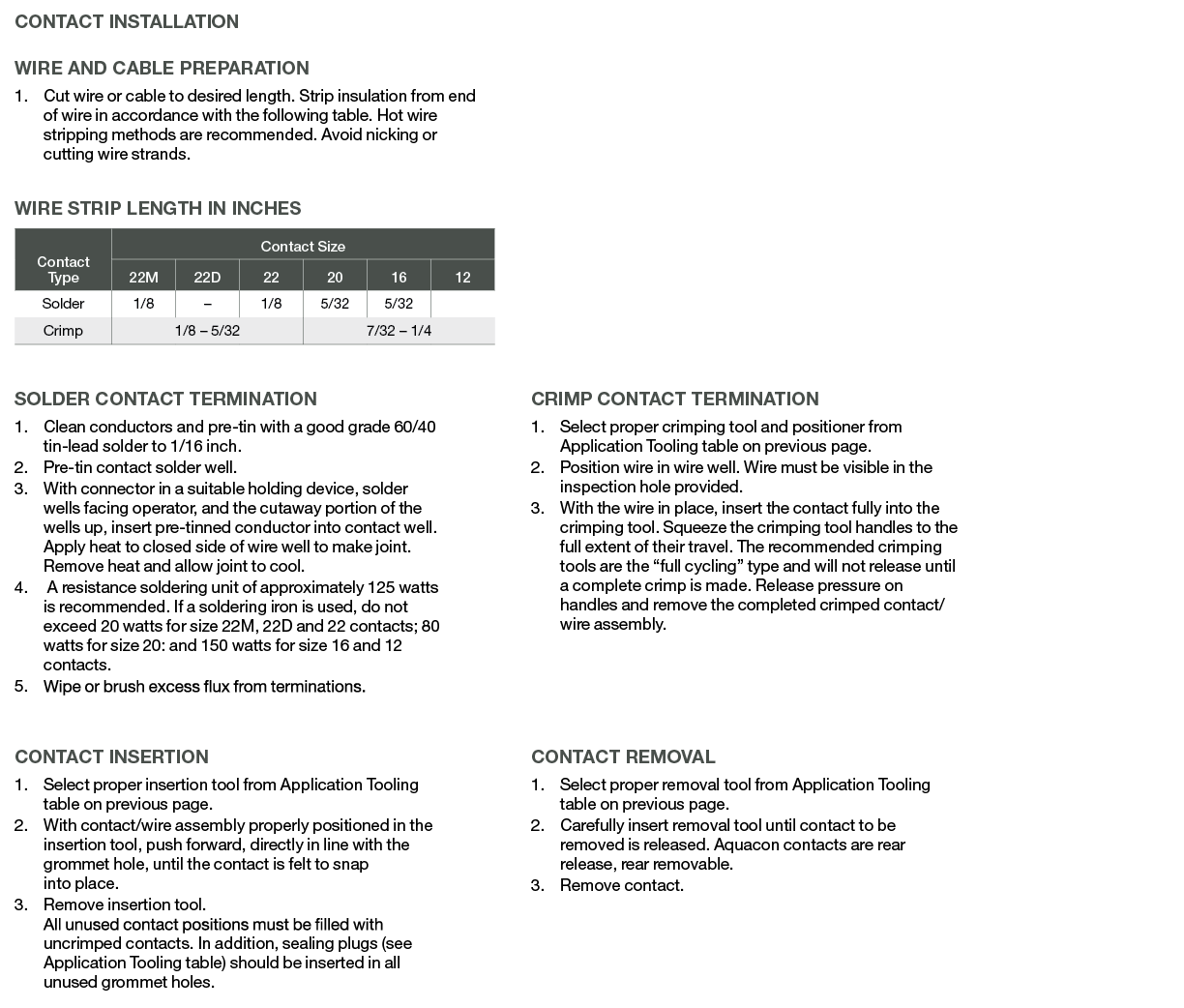

Contact Installation

38999 Catalog
Contains information on 38999 Series I, II, and III, as well as SJT, Aquacon, and Accessories.
Aquacon Hermetic Connectors
Amphenol Aquacon hermetic connectors are engineered to resist the corrosive environments encountered with oceanic or fluid immersion applications while maintaining a waterproof seal.
