12-Channel 10G Copper Rugged Ethernet Switch
Contact:
Description:
Amphenol’s 12-channel Rugged Ethernet Switchbox is conduction cooled and configurable for system connectivity, various speeds, port types, as well as interoperation with several high-speed media converters and cable assemblies for system interfacing. Each copper port is capable of 10/100/1G/2.5G/5G/10GBASE-T Ethernet connectivity.
In Amphenol’s state of the art communications testing center, the switchbox is aggressively tested at line rates to RFC 2889 for switch and RFC 2544 for L2/L3 performance, latency, packet forwarding and other key items.
The switch is manufactured using derivates of Amphenol’s MIL-DTL-38999 Series III connectors. These connectors contain standard AS39029 qualified Size 22D contacts and Octonet contacts. Amphenol’s Octonet contacts are a proven design used in a variety of military programs. The Octonet is a Size 8 contact that houses four differential pairs, capable of a data rate of 4Gbps maximum and 100Ohm impedance. This contact system has been tested and passed all specification requirements of AS39029 qualification.
Features & Benefits:
- 12-Channels of copper 10/100/1G/2.5G/5G/10GBASE-T
- 28V MIL-STD-740F input module – see this specification for input power considerations.
- 40 watts or less typical power consumption
- Less than 10 second boot time from power on to traffic switching.
- Mil-spec power supply with hold-up capacitor and in-rush current limiting circuit
- Built in test functionality for power up, initiated, and continuous operation.

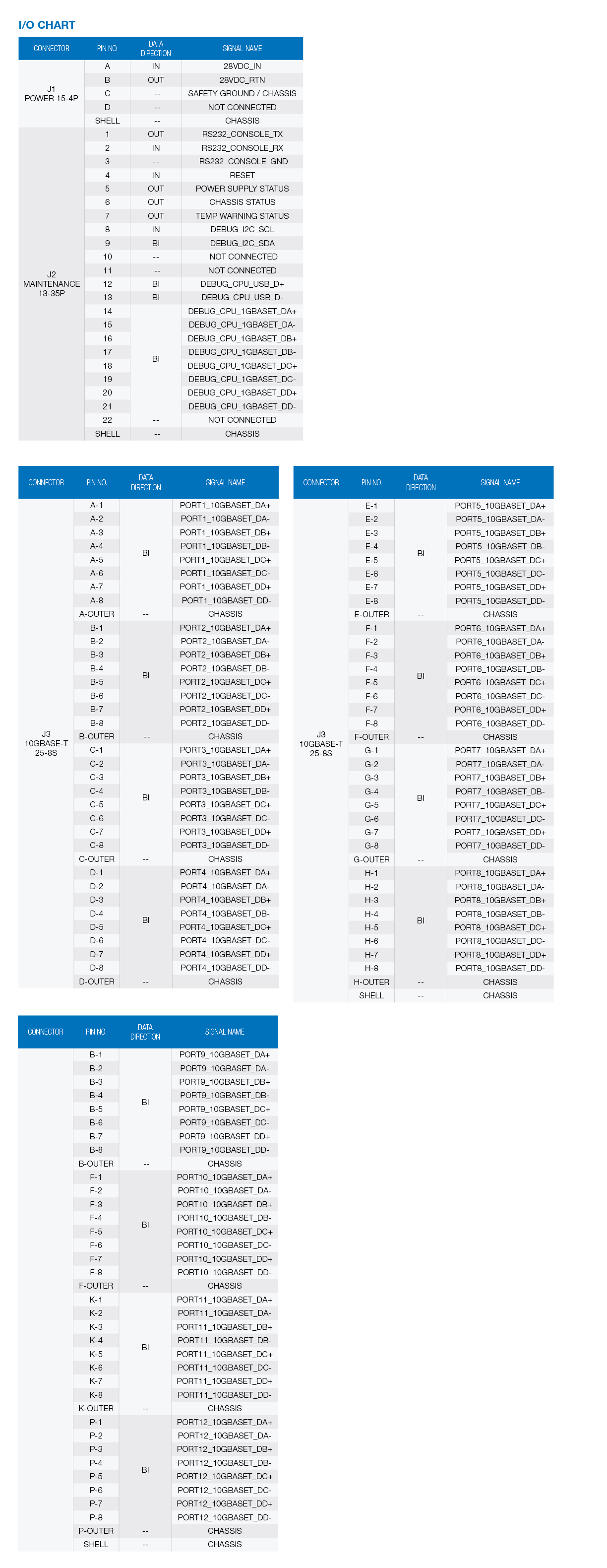

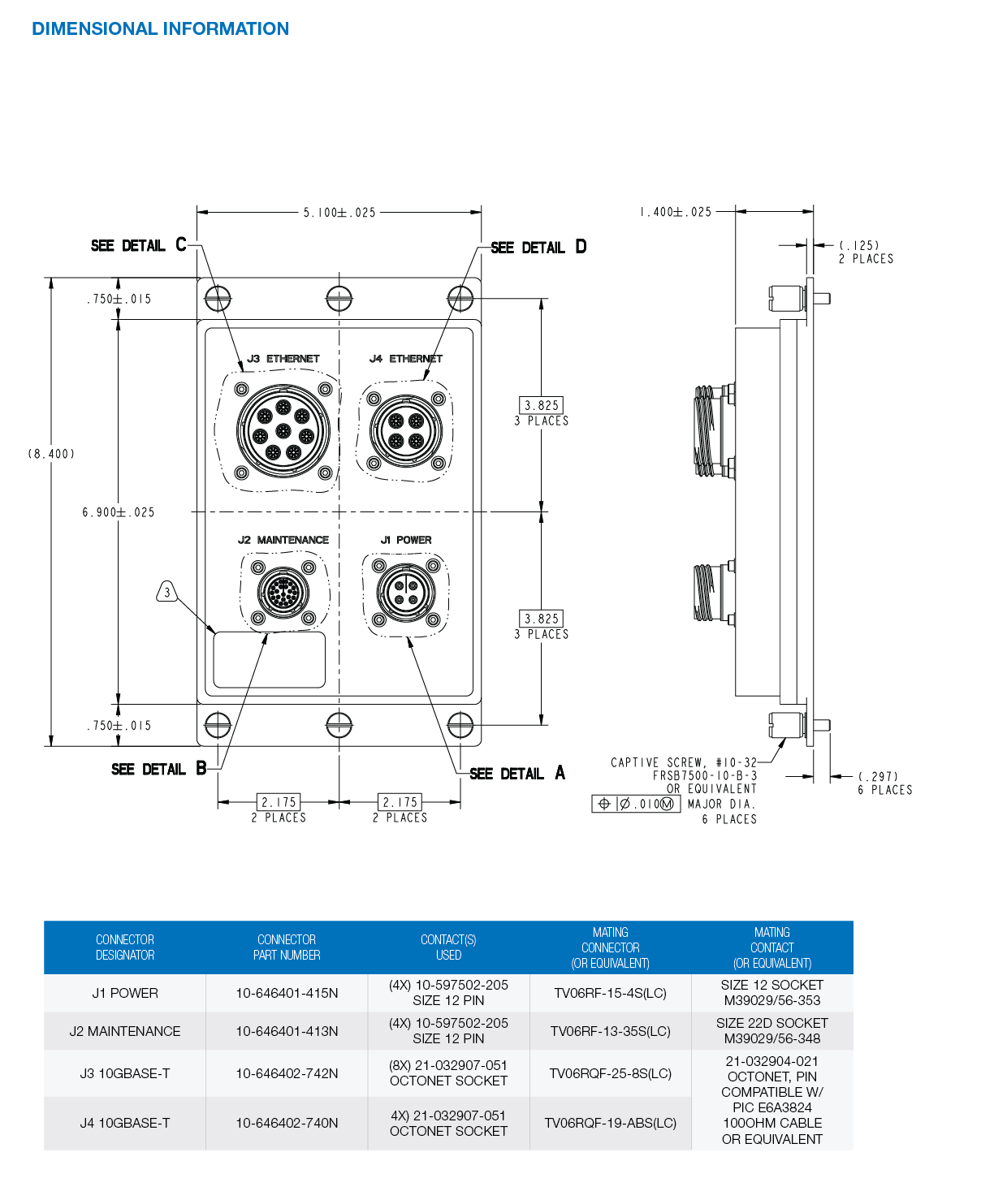

- MIL-DTL-38999 power, debug/maintenance, and data connectors
- Mil-spec black painted chassis with cold plate external conduction cooling
- Host management process with expanded Ethernet features including:
- CLI interface and web interface •
- IPV4 / IPV6 routing •
- Information on links and port counters •
- Tagged and untagged vlan configurations •
- Trunk link aggregation •
- Port mirroring •
- Port based QoS •
- 802.1P QoS •
- Rate limitations •
- Loop detection •
- Multicast IGMP snooping •
- Cable diagnostics •
- Access control
