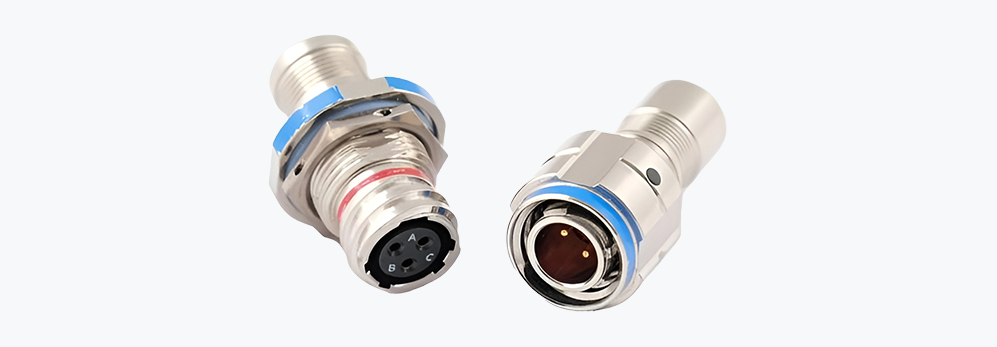

387TV Size 7 38999

Amphenol’s 387TV Size 7 Connectors are derived from MIL-DTL-38999 Series III and are dedicated to applications
where miniature size and low weight are critical. This range can accommodate size 8 high-speed contacts (Coax,
Twinax, Quadrax, 1 Gb & 10 Gb Octonet) and any 38999 size 9 contacts arrangement, as well as fiber optics.

Applications

• Battlefield Communication C5ISR
• Ground Vehicles
• Military Avionics
• Commercial Air
• Navy

Environmental & Electrical Characteristics

• 500 mating cycles
• -65 °C (-85 °F) to +175 °C (347 °F) or 200 °C (392 °F) depending on material & plating
• From 48 to 500 hours of salt spray depending on material & plating
• IPX7 when mated and fully cabled
• Shell-to-shell conductivity from 1 to 10 mΩ depending on materials & platings
• Shell-to-shell bottoming, grounding fingers on the plug shell
• Insulation resistance at Ambient temperatures: 5.103 mΩ
• Contact rating from 3 to 23 Amps

• The smallest connector derived from MIL-DTL-38999 Series III
• Single-way grounded version & multi-pin insert arrangements
• Data, high-speed contacts and Fiber optic
• Ruggedized product with resistance to shocks & vibrations
• Several materials et plating’s available, with RoHS & REACH compliant versions
• Several receptacles style: Oval flange, Jam nut
• Shells always with an integrated back shell for crimp versions
• Multi-pin versions use the same contacts and inserts as size 9 38999 Series III
• Many versions available: Integrated backshell, stand-off (double flange), reduced flange

Contact Options

• 1 grounded version & 4 multi-pin arrangements
• Contacts size 23 HD to 8
• Signal, Power, High-speed versions (Coax, Twinax, Quadrax, Octonet...), and optical termini
• Crimp & PC-Tails (gold & tinned versions)
