D38999 Series III Filter Connectors

Product D38999 Series III Filter Connectors Product D38999 Series III Filter Connectors

Contact:

Larissa Williams
Product Manager
+1 (607) 563-5313
lwilliams@amphenol-aao.com

Description:

Amphenol’s MIL-DTL-38999 Series III connectors are unrivaled in their performance and reliability. With added filter features, the high-performance general duty threaded connector is designed to withstand the pressures of severe environment applications.

Amphenol also offers Composite Series III with filtering for EMI/EMP protection, offering the same high performance as its metal counterpart, but with a lightweight, corrosion-resistant shell.

Features & Benefits:

  • Quick Mating - completely mates in a 360° turn of the Coupling nut
  • Lockwiring Eliminated - incorporates anti-decoupling device
  • Contact Protection - 100% “scoop-proof”
  • Improved Moisture Resistance - prevents electrolytic erosion of contacts
  • Lightweight Composite Shell - 17% – 70% weight savings over metal
  • Corrosion Resistant - available in standard MIL-DTL-38999 olive drab cadmium (175°C) and electroless nickel plating (200°C), both withstanding 2000 hours of salt spray exposure. The base material is able to withstand an indefinite exposure to salt spray.
  • Designed for Harsh Environments
Standard Filter Connectors - How to Order Guide

Dimensions


FCTV – MIL-DTL-38999, Series III Composite

FCTV – MIL-DTL-38999, Series III Composite

FCTV – MIL-DTL-38999, Series III Composite

FCTV – MIL-DTL-38999, Series III Composite

FTV – MIL-DTL-38999, Series III





FTV – MIL-DTL-38999, Series III

FTV – MIL-DTL-38999, Series III

FTV – MIL-DTL-38999, Series III

FTV – MIL-DTL-38999, Series III

FTV – MIL-DTL-38999, Series III

Specifications

Environmental

  • Temperature Range: -55°C to 125°C
  • Physical Shock: Typical to EIA-364-27 test condition C
  • Vibration: Typical to EIA-364-28
  • Fluid Immersion: Typically tested to EIA-364-10
  • Salt Spray: Typically based on EIA/ECA-364-26
  • Humidity: Typically EIA-364-31 test method IV
  • Durability: 1500 couplings minimum (in reference to connector couplings, not contacts)

Electrical

  • Grounded Line Resistance (Typ.): 15 mΩ
  • Insulation Resistance (Typ.): >5 GΩ
  • Dielectric Withstand (Typ.): <5 mA
  • DWV: up to 1500 VDC
  • Working Voltage: up to 1500 VDC
  • Capacitance Range: 20 pF to 1 mF
  • Capacitance Tolerance: +/- 20%
  • Filtering Topologies Available: Pi, C, LC, CL, L, cascaded Pi, Unbalanced Pi
Insert Arrangements

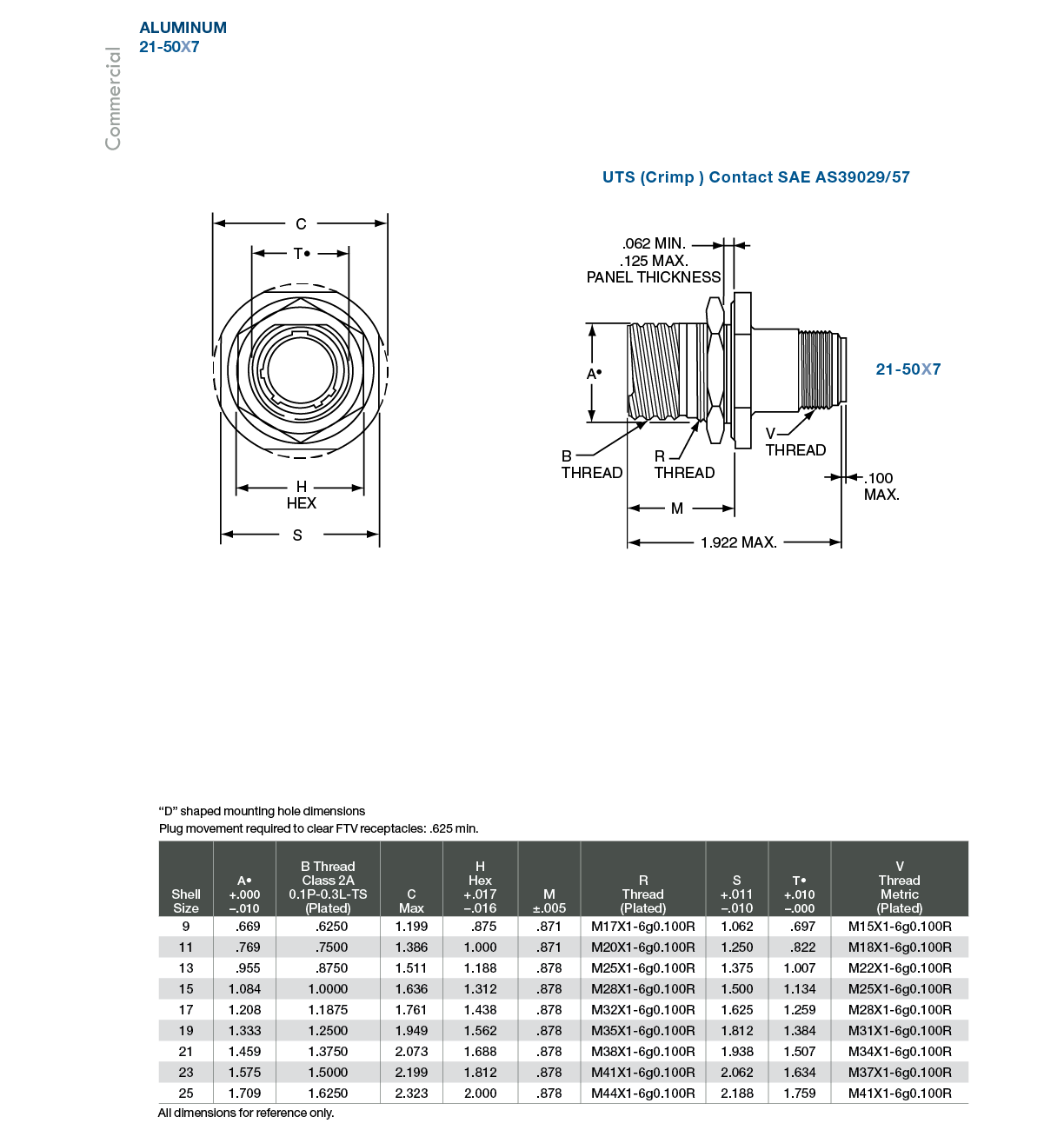

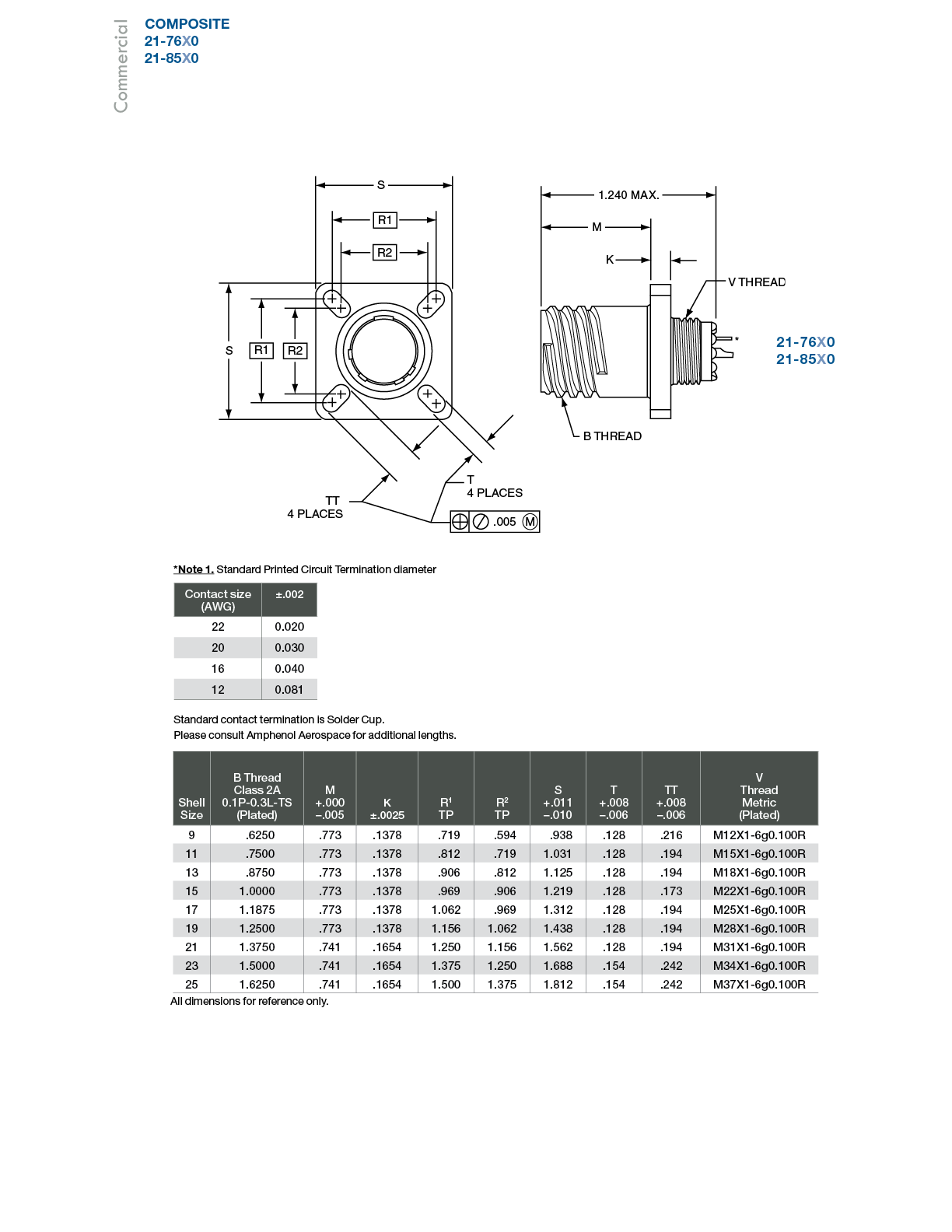

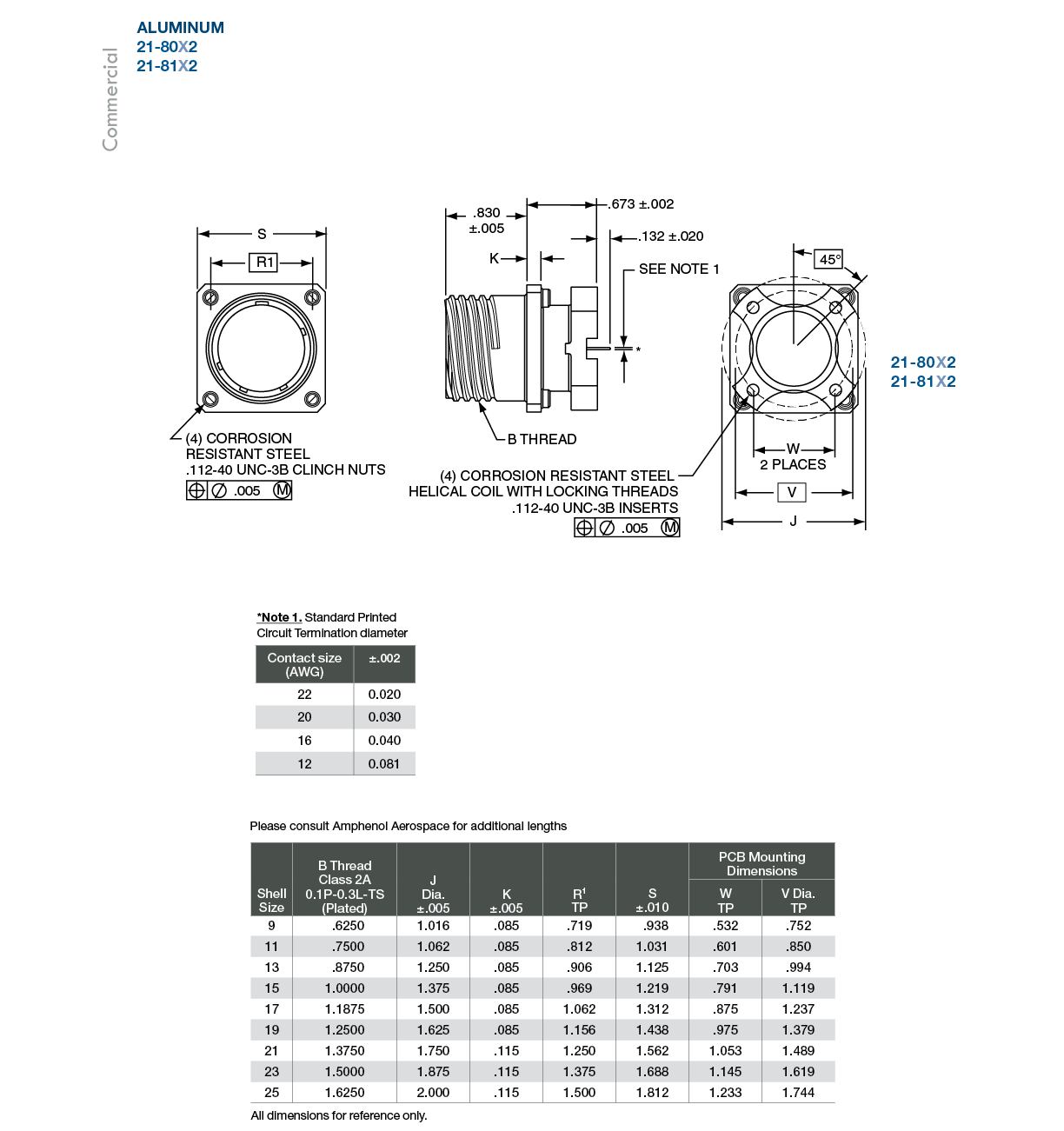

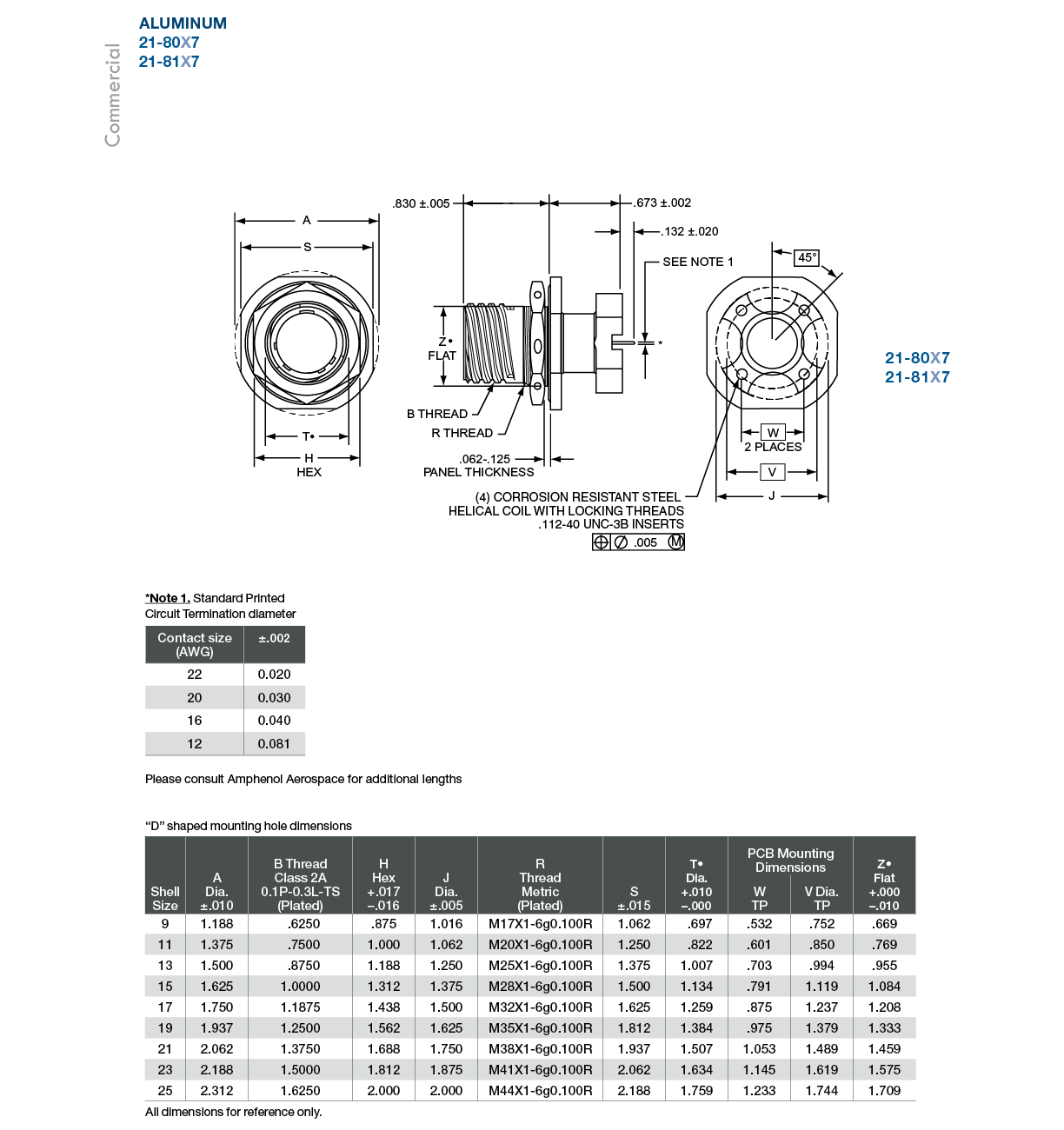

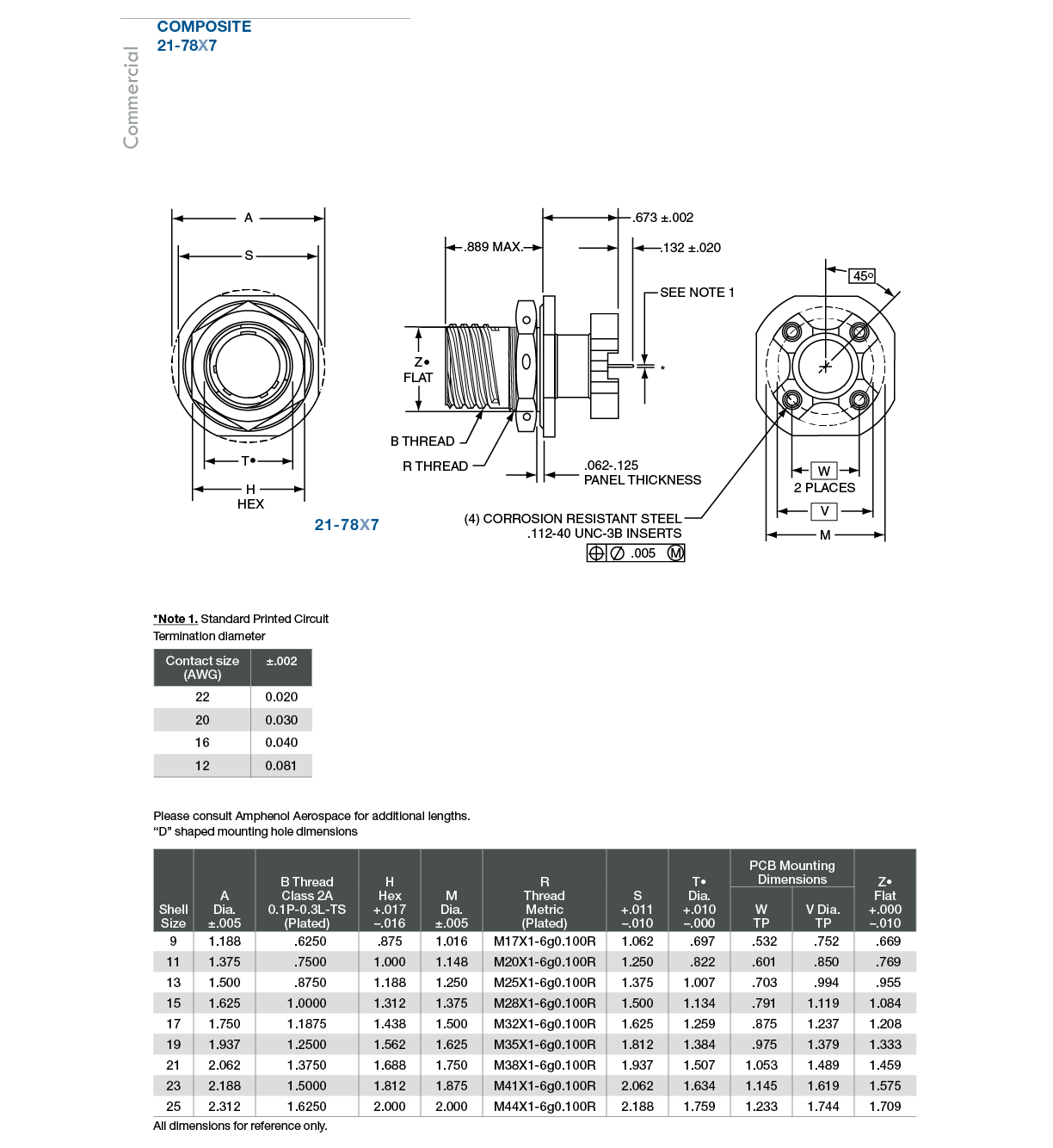

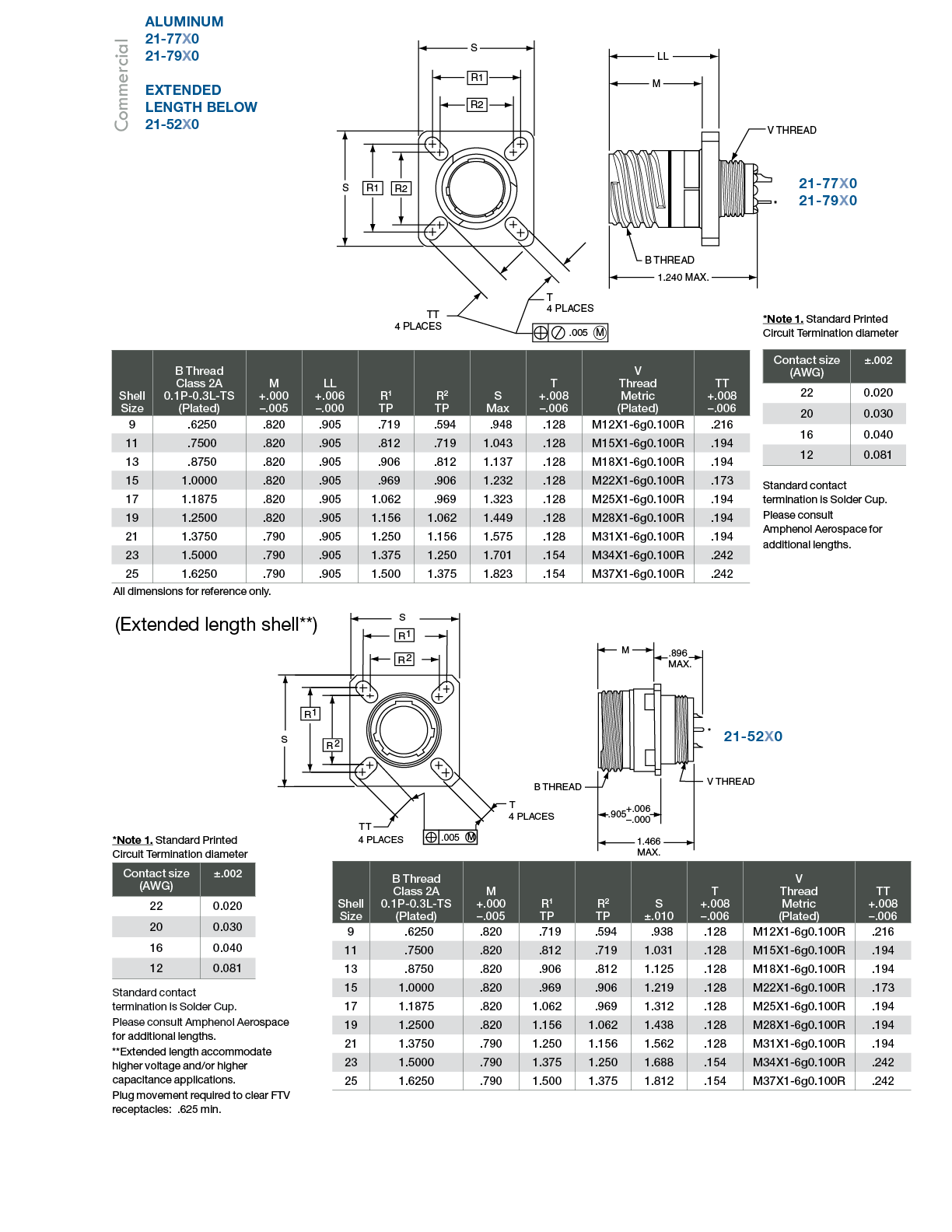

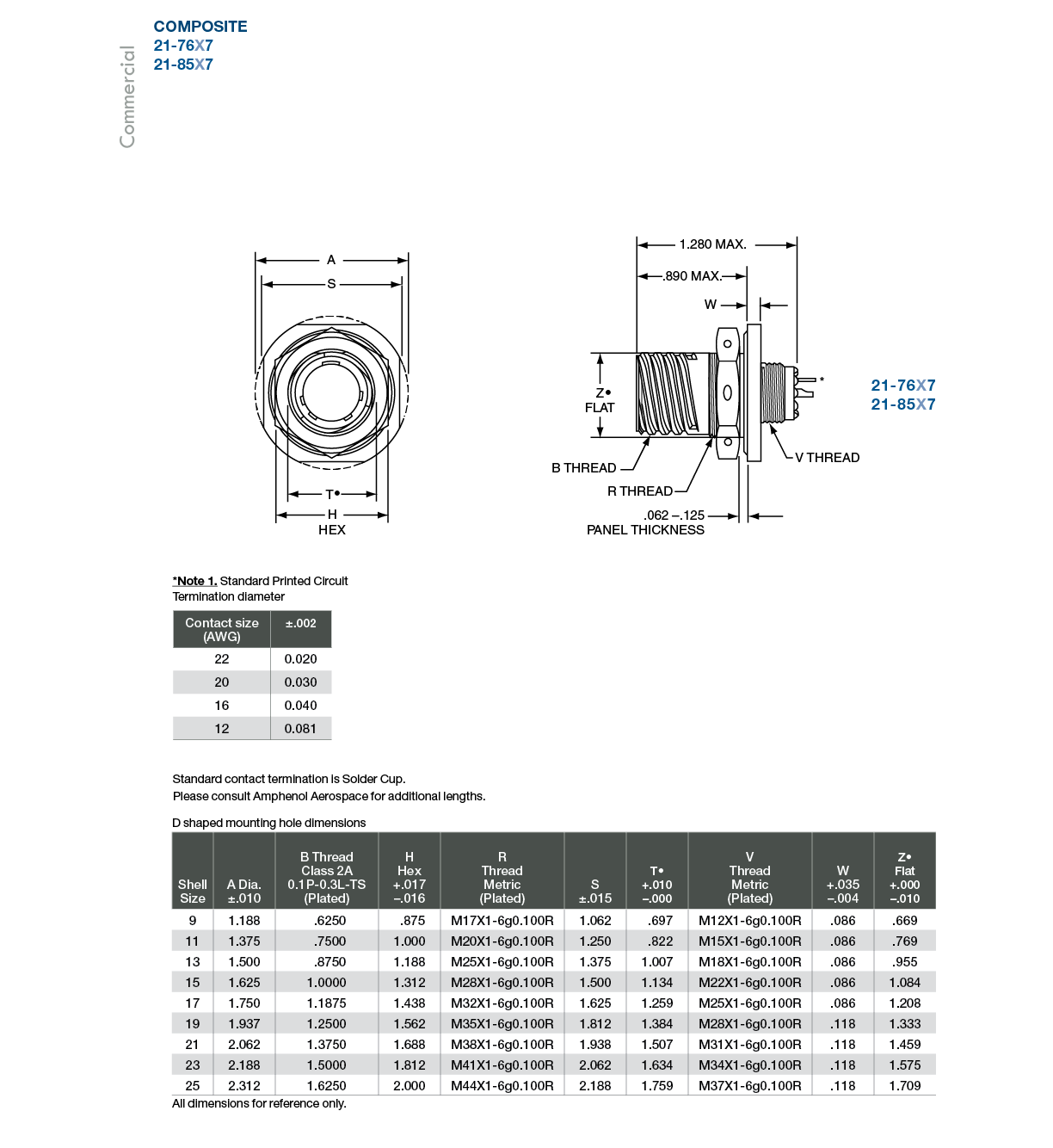

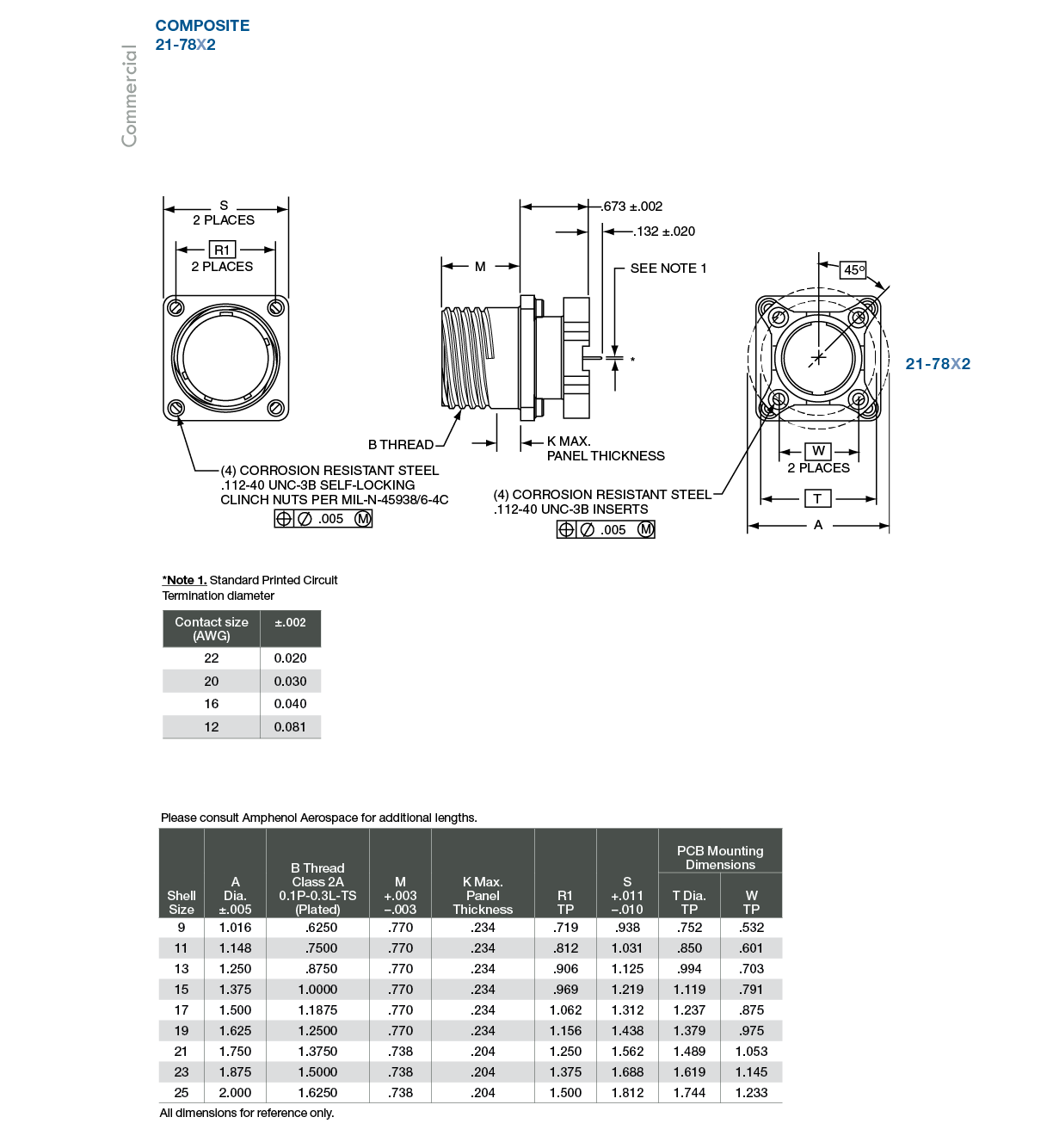

PCB Layouts


*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.



*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

Filter Catalog
EMI/EMP Protection Connectors offer the versatility of standard connectors with EMI/EMP protection for sensitive circuits.
Filter Connector How to Order
How to order standard filter connectors.
Filter Check Sheet
Use this sheet to help determine which filter connector is right for you.
Video Product Perspective: EMI Filters
Product Perspective: EMI Filters
2:17
Video Amphenol 38999 Series III Connectors: The Gold Standard
Amphenol 38999 Series III Connectors: The Gold Standard
1:36
Amphenol Advantage IconComplementary External Product Non-ITAR Filters
Non-ITAR Filters
Filters for when ITAR isn't a requirement.
Amphenol Advantage IconComplementary External Product Flex/Rigid Flex
Flex/Rigid Flex
Flex and rigid-flex circuitry offer many advantages when considering the most effective means to transmit signals or power within your system.
Amphenol Advantage IconComplementary External Product Electro-Mechanical Integration
Electro-Mechanical Integration
Building complex assemblies requires a robust quality system, strong engineering support, and world class operators.
Amphenol Advantage IconComplementary External Product Cable and Wire Harnesses
Cable and Wire Harnesses
Wire harnesses and point to point cables for a broad range of Defense and Aerospace applications.
