4 Channel XAUI 10G Ethernet Integrated Media Converter

Product 4 Channel XAUI 10G Ethernet Integrated Media Converter Product 4 Channel XAUI 10G Ethernet Integrated Media Converter

Contact:

Jared Sibrava
Business Unit Director
+1 (607) 643-1845
jsibrava@amphenol-aao.com

Description:

The Amphenol’s 4 Channel XAUI 10G Ethernet Integrated Media Converter is a SERDES interfacing integrated media converter with four channels of XAUI and four channels of single mode bi-directional 10G Ethernet. This product’s low power consumption and MDIO serial interface for built-in test and diagnostics makes it great fit for rugged, harsh environment avionics, ground systems, or naval applications.

Features & Benefits:

  • Speed Cable Assembly and vertical mount board connectors
  • Two hanging cable assemblies for distributed connections across the subsystem and backplane
  • Low power consumption
  • MDIO serial interface for Built-In Test and Diagnostics

Ruggedization:

  • Natural convection cooled (no fan)
  • Operational temperature -40°C to +85°C
    Storage temperature -50°C to +125°C
  • EMI/EMC compatible
  • Refer to page 4 for additional details

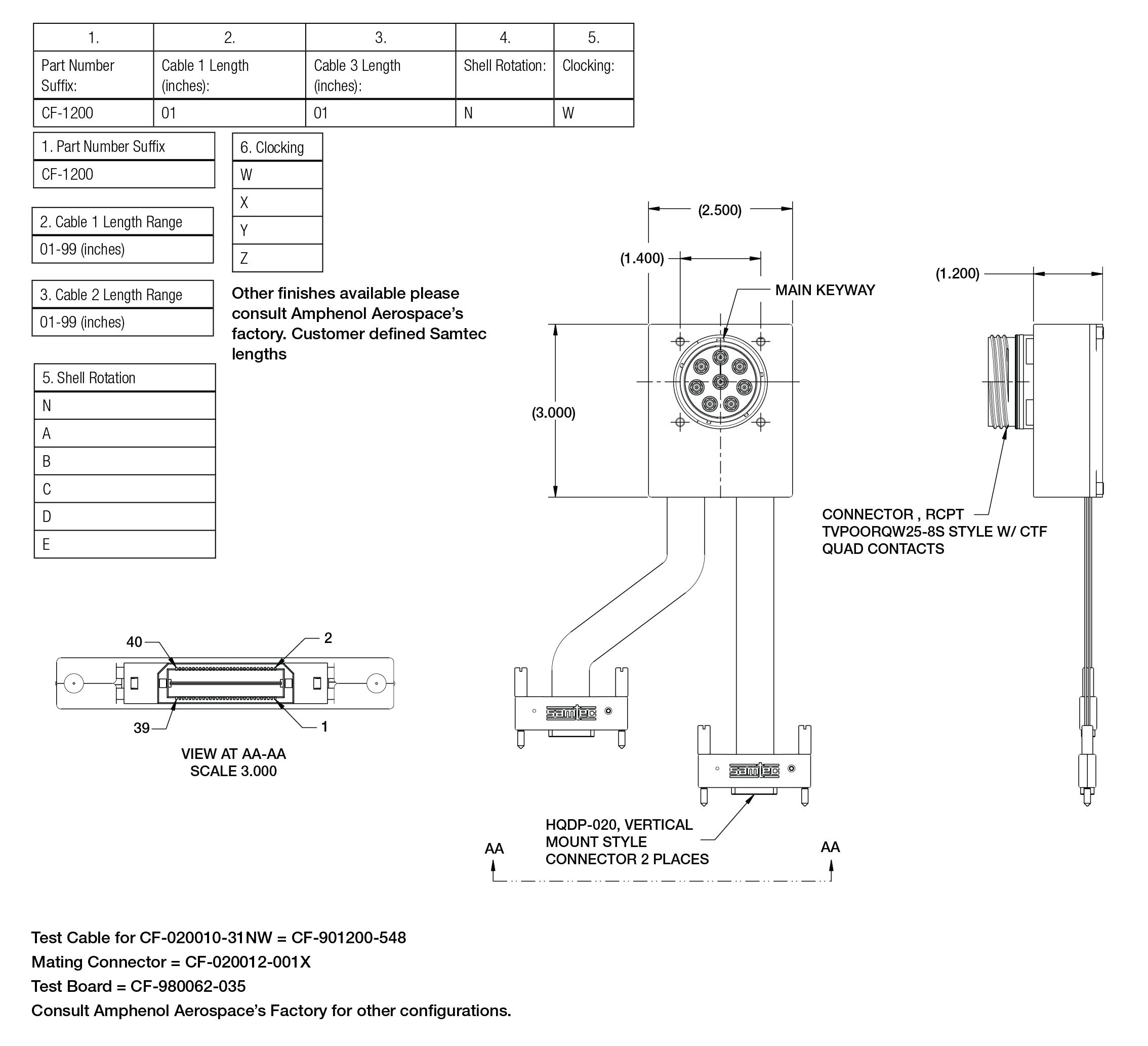

Drawing

CTF-10G-4-SM
Includes product information, block diagram, and drawings.
Rugged Junction Boxes
Ethernet junction boxes for rugged military and other harsh environment applications, featuring a wide range of Amphenol D38999 connectors.
