Matrix 83723 Breakaway Lanyards

Product Matrix 83723 Breakaway Lanyards Product Matrix 83723 Breakaway Lanyards


Amphenol Aerospace
Tech Support


Push-Pull, quick disconnect coupling is available in a straight plug that can be ordered with or without a lanyard release mechanism. Additional receptacle adapter needed.

Features & Benefits:

  • Recommended operating voltage to 600 VAC (RMS) at sea level
  • Complete environmental sealing includes interfacial seal and a triple-webbed grommet design
  • Incorporates crimp rear release contacts in sizes 12, 16 and 20; contact arrangements accept 2 to 61 circuits
  • Insertion and removal of contacts from the rear of the connector assures no damage to the front that might affect the sealing characteristics
  • Closed entry socket side of the insert is designed with a lead-in chamfer and a hard face that will accept a pin contact bent within pre-established limits
  • MS and Commercial versions available
  • Alternate positioning available
Performance Specifications

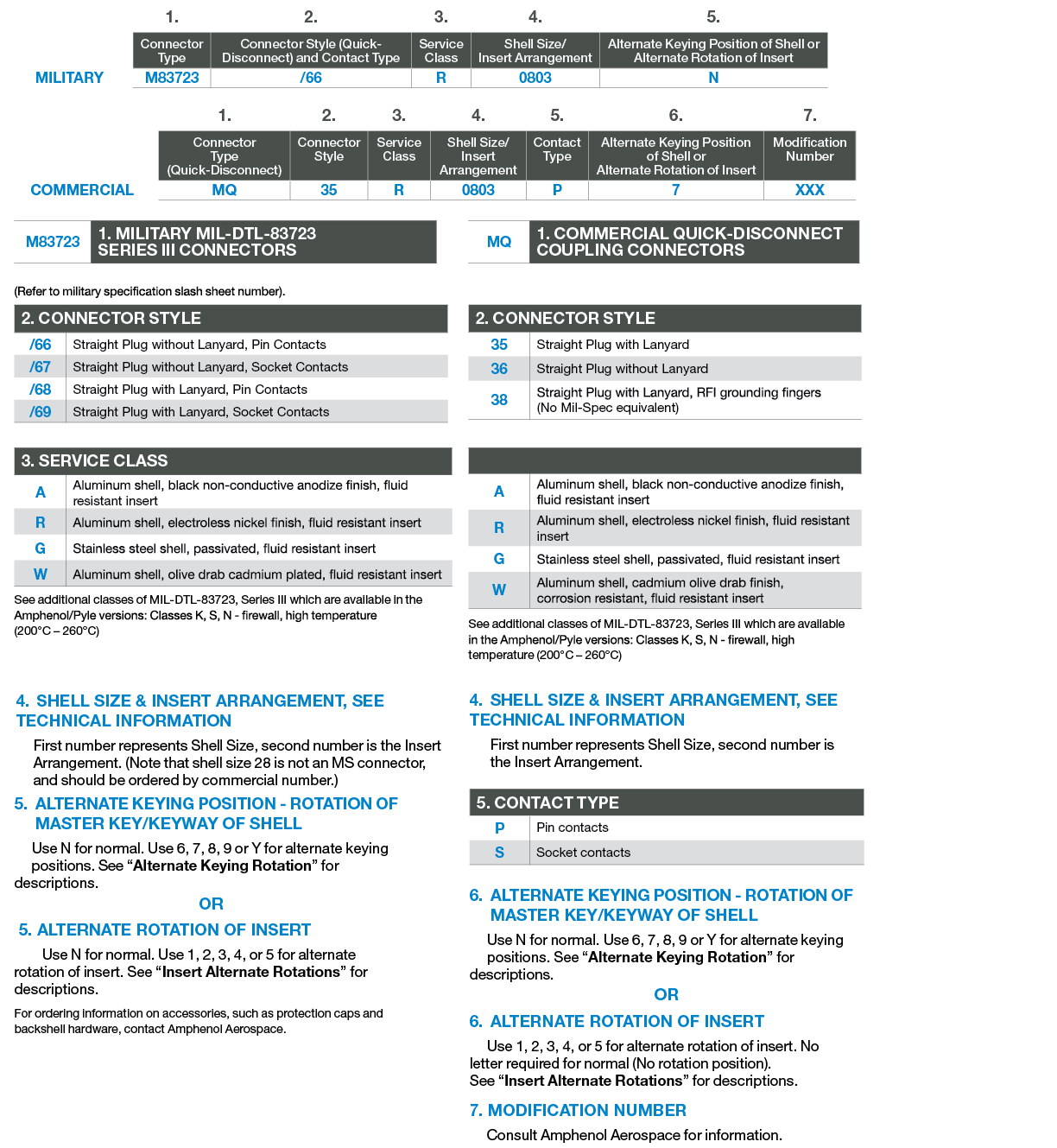

How to Order Guide


Insert Chart

Insert Arrangements

Insert Alternate Rotations

Alternate Keying Positions

83723 Contact Information

83723 Assembly Tools

MIL-DTL-83723, Series III, Matrix Catalog Section
With three coupling style choices- bayonet, threaded and quick-disconnect - the versatility of this family makes it increasingly popular for panel mount, box mount and line-to-line applications in aircraft.
