Puck Maxi
Contact:
Description:

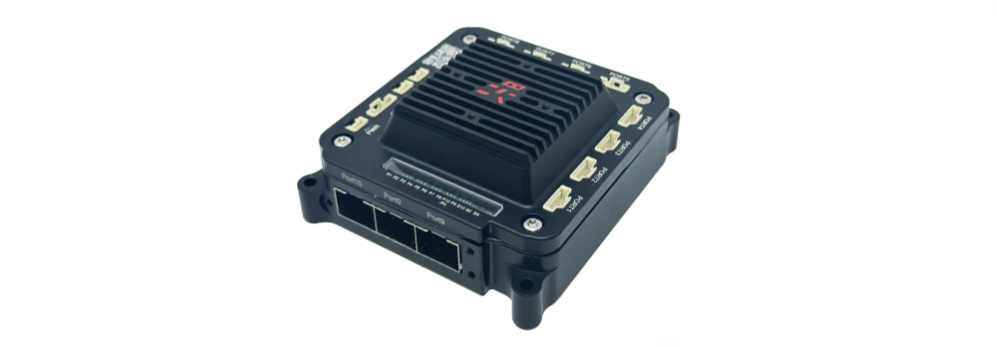

Puck Maxi is a rugged and compact managed ethernet switch that houses 8 × 1G BASE-T ports and 3 × 10G-capable SFPs in an IP54-rated metal chassis. Puck Maxi is designed to provide ethernet connectivity in harsh, challenging environments with high vibration, shock, temperature, and humidity, such as mobile platforms, aerial vehicles, and industrial equipment.
Features & Benefits:
• 8 × 10/100/1000BASE-T ports
• 3 × 10GBASE-R or 1000BASE-X SFP ports
• 1 × 3.3 V TTL UART management port
• Input voltage range from 5 V to 60 V, reverse polarity and overvoltage protected
• IEEE 802.3 compliant 1500 VRMS isolation between each ethernet port
• Positive locking vibration-resistant Molex Pico-Clasp connector
• Rugged aluminum chassis with four mounting points
• Passive heatsinking (excluding SFPs)
• SFP locking and heatsinking piece (only for use with 10GBASE-T SFPs)
• Automatic MDI-X crossover and polarity correction on the eight 10/100/1000BASE-T ports
• Auto-negotiation on all ports with connected devices to achieve maximum speed
• Command line interface management for port, VLAN, and LACP management
• Less than 5 W maximum power draw (not including SFPs)
