Push Pull Connectors

Highly versatile and durable, Amphenol push/pull connectors are small and lightweight and are suited for a variety of military and commercial applications. The rugged construction of Amphenol push/pull connectors allows them to withstand the harshest environments warfighters encounter in the field. Products such as the Warrior-Lok series are an essential component of soldier-worn gear, ensuring sensitive soldier-worn systems stay online throughout even the most dangerous missions on the most hazardous terrains. Meanwhile, the rugged 2M804 connector is waterproof and dustproof and provides reliable EMI shielding, and can be deployed effectively for a variety of land, sea and air applications.

Product Ram-Lock Connectors
Ram-Lock Connectors
Ram-Lock is Amphenol’s latest ruggedized push-pull positive locking interface designed for harsh environment applications.
Product 2M Ram-Lock
2M Ram-Lock
The 2M Ram-Lock utilizes ball bearings for locking and a traditional D38999 EMI band for Shell-to-Shell conductivity enabling much more consistent and reliable engagement between the plug and receptacle.
Product Ram-Lock with High Power Contacts
Ram-Lock with High Power Contacts
Amphenol’s Single Pole Ram-Lock connector is a ruggedized push-pull connector designed for applications up to 500 °F (260 °C)
Product Warrior Grip Soldier-Worn Push-Pull Connectors
Warrior Grip Soldier-Worn Push-Pull Connectors
Soldier-Worn Push-Pull Connectors to offer a solution designed to exceed the rigorous requirements of the US Army’s Nett Warrior program.
Product 2M804 Push-Pull Quick-Disconnect
2M804 Push-Pull Quick-Disconnect
Ruggedized, push-pull miniature connectors with multiple options for soldier-worn applications.
Product T-Line Push-Pull Connectors
T-Line Push-Pull Connectors
A push-pull mating connector that incorporates a retention spring in the receptacle and a full-mating indicator band on the plug.
Product FLOS Push-Pull Connector Series
FLOS Push-Pull Connector Series
Metal push-pull connector series intermateable with Fisher, Lemo, ODU and Souriau.
Product MRC (Multi-Media Ruggedized Connectors)
MRC (Multi-Media Ruggedized Connectors)
Micro-miniature solution ideal for communications systems running Gigabit Ethernet, USB 2.0/USB 3.0, HDMI and 10 Gigabit Ethernet when specified and designated to a specific configuration.

What is Push/Pull?

Push/pull connectors are circular connectors that prioritize quick connection and disconnection. Amphenol push/pull connectors provide audible and tactile feedback, a system that provides immediate feedback when the connector is mated. An audible and sensory click immediately indicates when the two connector halves are securely fastened, providing an important piece of feedback and assurance under high-pressure circumstances.



Positive Locking Interface

Several Amphenol push/pull product lines are available with Ram-Lock, an interface that prevents accidental unmating by pairing through the engagement of a positive locking mechanism. This feature makes push/pull connectors ideal for critical functions where ease of use and fast, secure mating are essential for getting the job done.



Several options are also available with high-voltage interlock (HVIL).

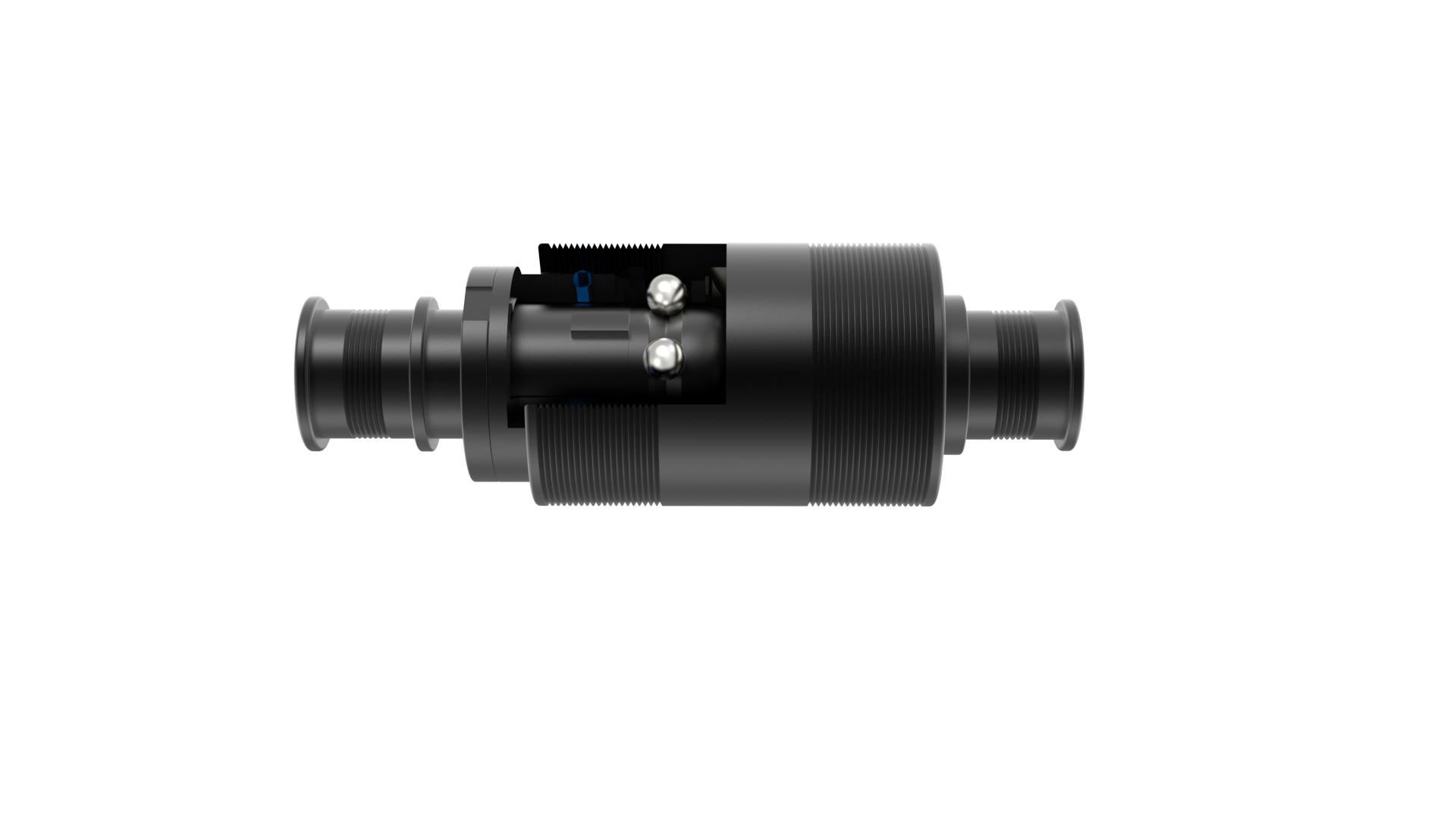

Positive Locking Push Pull

Amphenol push/pull connectors are reliable and long-lasting, capable of up to 2,000 mating cycles.

We also offer customization options to meet specific requirements, including disengagement forces, EMI protection, high-speed signals, and more.



Amphenol push/pull connectors are ideal for use with a variety of soldier-worn and uniform-integrated equipment systems and will fit conveniently around a soldier’s MOLLE rucksack and tactical assault panel.



This includes:



  • Soldier-worn gear



  • U.S. Army’s NETT Warrior system



  • Portable USB hubs



  • Heads-up displays (HUDs)



  • Night vision goggles



  • Power management systems



  • Connecting and powering radios, headsets, computers, and other body-worn communications equipment

Land, Air, and Sea Applications

Amphenol push/pull connectors are ideal for a multitude of land, sea, and air applications, such as:



                            • Charging and connectivity functions for manned and unmanned ground vehicles



                            • Charging, downloading data from, and general operation of small UAVs (SUAV) and micro air vehicles (MAV), and robotics





Optical and Visual Targeting Equipment

Amphenol push/pull connectors are fundamental components for powering night vision optics, smart scopes, laser devices, portable targeting equipment, and more.
