Voltarius High Power Interconnect

Product Voltarius Product Voltarius

Contact:

Brandon Brown
Product Manager
+1 (607) 563-5685
bbrown@amphenol-aao.com

Description:

Voltarius is a high-power interconnect system optimized for high-voltage applications. This high-power connector series is designed to provide performance up to 1000VDC and 450A and features proven RADSOK® technology. The Voltarius also provides essential safety features such as interlock circuitry and a secondary locking mechanism.

Future developments on the Voltarius platform will feature a working voltage target of 1200 VAC/1700VDC 30,000 feet, partial discharge free, with an operating temperature range of minus 40 degrees Celsius to 180 degrees Celsius, and improved latching functionality.

Features & Benefits:

  • Voltage Rating: 1000VDC at sea level
  • Sealing: IP67 (unmated) & IP69K (mated)
  • Temperature range: -40 °F (-40 °C) to 257 °F (125 °C)
  • Available in single-pole or multi-pole arrangements
  • Full 360-degree shielding with integral shield termination
  • Safety interlock circuitry utilizes last mate, first break sequence
  • Busbar and threaded termination standard with the receptacle
  • Plugs available in straight or right-angle orientations

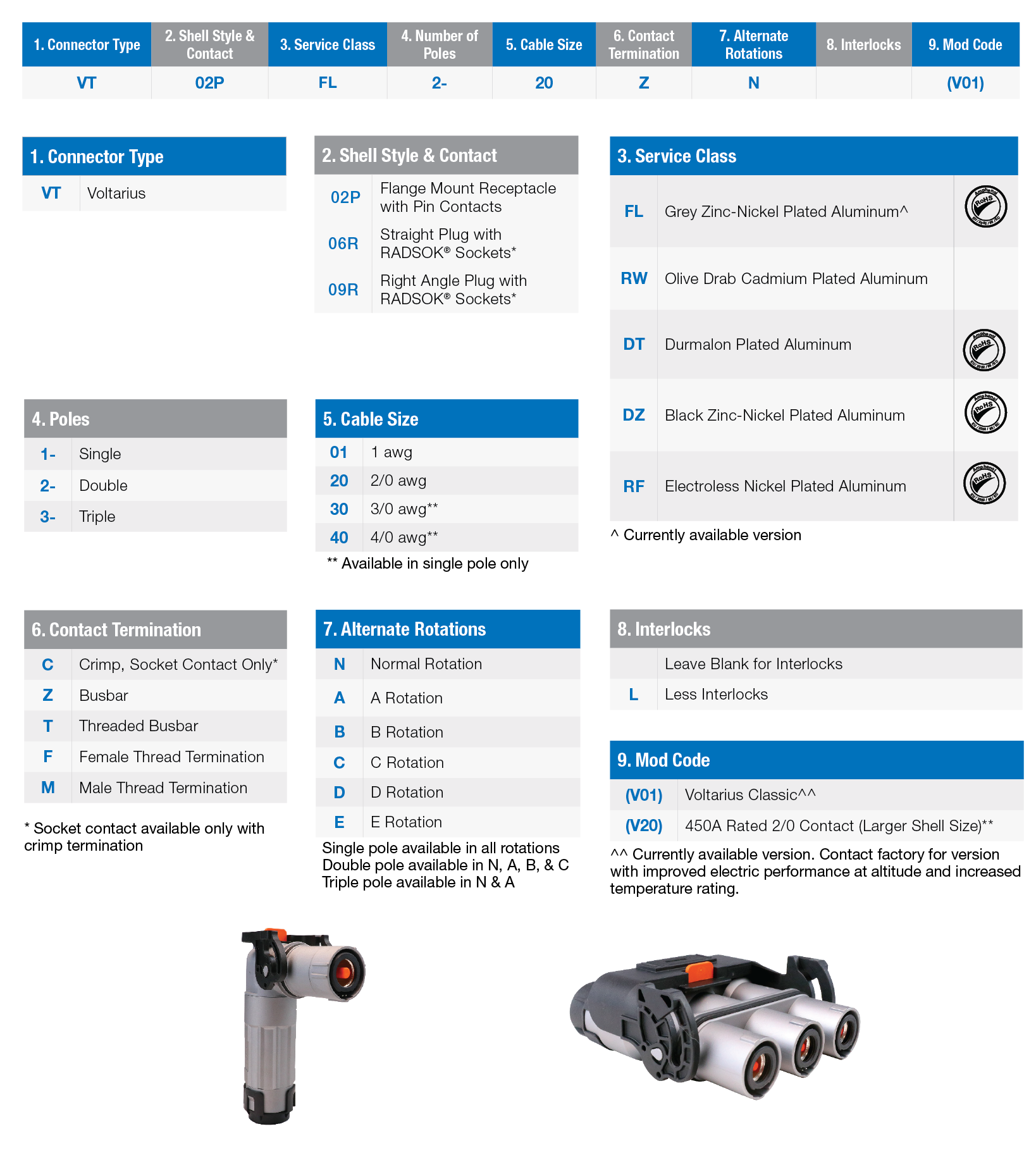

How to Order

More Voltage & Power
Amphenol’s selection of high-power and high-voltage connectors has been designed to meet the power demands of electric military vehicles, eVTOL aircraft, and that of an all-electric world head-on.
RADSOK®
RADSOK® technology is based upon a stamped and formed flat grid, uniquely twisted into a hyperbolic geometry to provide robust, high-density contact to the mating pin contact.
Temper-Grip
Temper-Grip socket contact series is a high-current technology designed for use in high temperature applications, and available with most Amphenol connectors.
HVDC
HVDC is a low mating force, high mating cycle connector that achieves enhanced performance due to multiple points of contact vs. standard 2 or 4 tine contacts.
High Voltage 38999
An expansion of the MIL-DTL-38999 series to provide solutions for next-generation power requirements.
