SPEBlox Long

SPEBlox Long is a communication device that provides 10Mbps at extremely long cable runs up to 1600m (1.6km) over simple twisted pair copper cable.

This technology is based around the 10BASE-T1L specification, and this board aims to provide a cheaper and simpler way of achieving reasonably low bandwidth communication over very long cable runs.

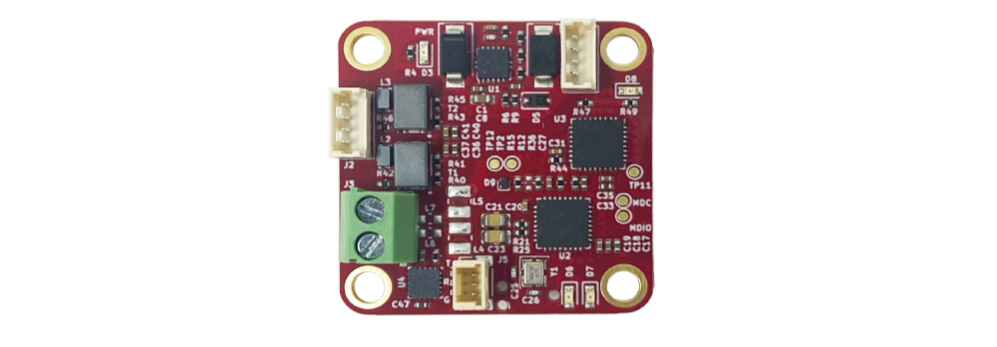

SPEBlox Long is 31mm x 31mm and provides a standard 10BASE-T ethernet connection on Picoblade header. The 10BASET1L (single pair ethernet) connection is placed onto a screw terminal for full flexibility of cable types. The board is powered by any voltage from 5 to 60V.

• 1 x 10Mbps (10BASE-T) ethernet port
• 1 x 10Mbps (10BASE-T1L) single pair ethernet
• 1 x UART debug port
• Input voltage range from 5 to 60V
• Reverse protected voltage input
• Transient protected voltage input
• -50oC to 110oC Operation Range (View test report)
• 31mm x 31mm board size
• Molex PicoBlade connectors for power and 10BASE-T port
• Screw terminal block for SPE port
• Automatic MDI-X crossover
